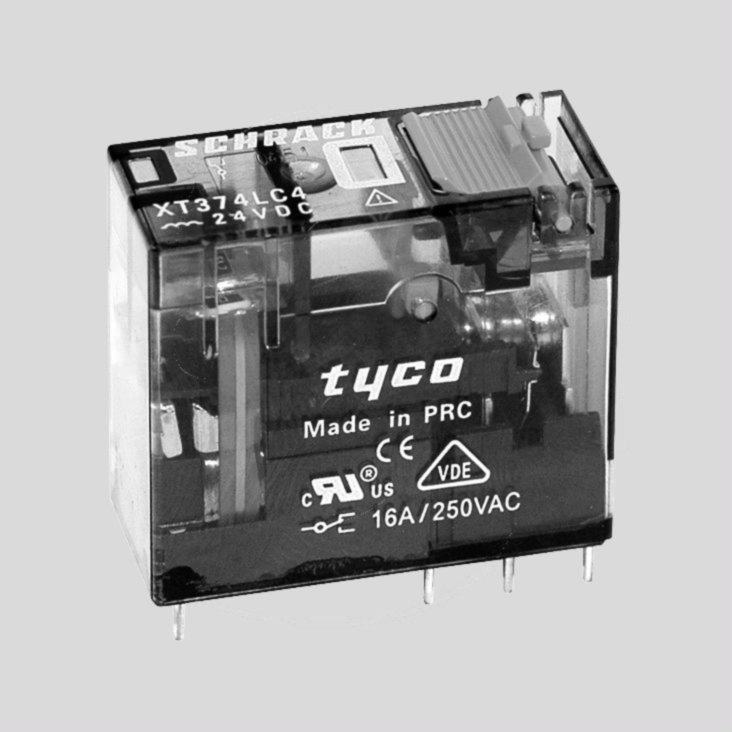

Relay SPDT 230VAC 16A 32,5K LED
Varenummer:
103-942
Varekode:
XT374-T30
Vægt:
20 g
Lagerstatus:
Ikke på lager
Gruppe: E6616
TE Industrial Relays
Series: XT
Contact: SPDT or DPDT
Rated Current: 16A and 8A

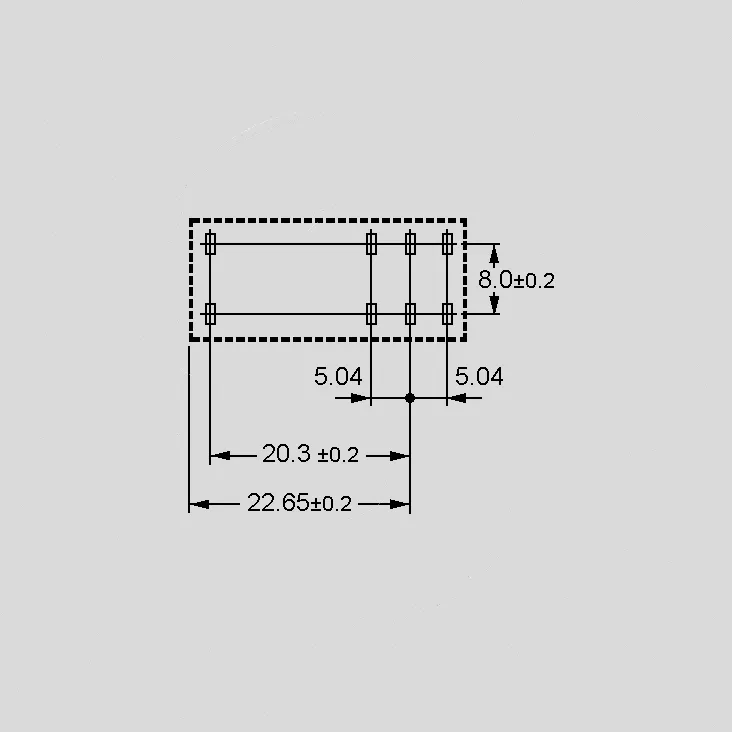

Housing: 29,0x13,7x25,6mm
| Features |
| • Industrial Relays with Solder/plug-in terminals • Versions with AC coil or 400mW sensitive DC coil • 4kV/8mm coil-contact • Relays protection class RTII |
 |
| Technical Specifications |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
| Contact | XT374_: | SPDT | XT484_: | DPDT | Contact Material: | AgNi 90/10 | Rated Current | XT374_: | 16A | XT484_: | 8A | Max. Switching Current | XT374_: | 30A | XT484_: | 15A | Max. Switching Voltage: | 400V AC | Max. Switching Power | XT374_: | 4000VA | XT484_: | 2000VA | Creepage/Clearance: | ³8/8mm | Operate/Release Time: | 9/6ms | Testing Voltage | Coil/Contact: | 4000Vrms | Contact/Contact: | 2500Vrms | Opening Contact: | 1000Vrms | Lifetime | Mechanical (DC): | >10x106 Cycles | Mechanical (AC): | >5x106 Cycles | Operating Temperature: | -40...+70°C | Weight Approx.: | 16g | ||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||
| Coil Data |
| Part Nr. | UN | UAn | UAb | PN | RN | [V DC/AC] | [V] | [V] | [mW/VA] | [W] | XT374-LC4 | 24 | 16,8 | 2,4 | 400 | 1440 | XT374-T30 | 230 | 172,5 | 34,5 | 0,74 | 32500 | XT484-LC4 | 24 | 16,8 | 2,4 | 400 | 1440 | XT484-T30 | 230 | 172,5 | 34,5 | 0,74 | 32500 | |||||||
| UN = Rated Voltage, UAn = Operate Voltage, UAb = Release Voltage, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 20°C | |||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||
| Approvals |
  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
| TE Connectivity http://www.te.com |
|
Stregkode:
103942
Intern reference:
103942
Varekode:
XT374-T30
