Ind.Relay 1xU 16A 230VAC 28000R 46.61.8.230.0040
Varenummer:
103-931
Varekode:
F4661-AC230
Vægt:
20 g
Lagerstatus:
Lager: 8 stk.
Gruppe: E6611
FINDER Industrial Relays
Series: 46
Contact: DPDT, SPDT
Rated Current: 8A and 16A

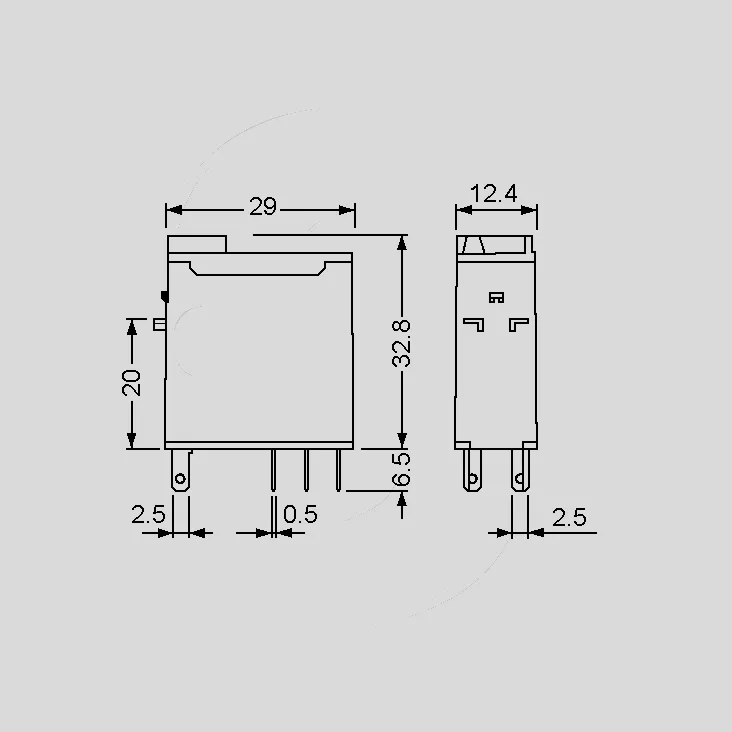

Housing: 29x12,4x32,8mm
Features
| • Socket mount or direct connection via Faston connectors • AC coils & DC coils sensitive (500mW) • Available with: lockable test button, mechanical indicator • Relays protection class RTII |
 |
| Technical Specifications |
|
|
| Contact | |
| F4652-_: | DPDT |
| F4661-_: | SPDT |
| Contact Material: | AgNi |
| Rated Current | |
| F4652-_: | 8A |
| F4661-_: | 16A |
| Max. Switching Current | |
| F4652-_: | 15A |
| F4661-_: | 25A |
| Max. Switching Voltage: | 440V AC |
| Max. Switching Power | |
| F4652-_: | 2000VA |
| F4661-_: | 4000VA |
| Operate/Release Time | |
| F4652-_: | 10/3ms |
| F4661-_: | 15/5ms |
| Testing Voltage | |
| Coil/Contact: | 6000V |
| Opening Contact: | 1000V |
| Lifetime | |
| Mechanical: | 10x106 Cycles |
| Electrical: | 10x104 Cycles |
| Operating Temperature: | -40...+70°C |
|
|
| Coil Data |
| Part Nr. | UN | Umin. | Umax. | IN | PN | RN |
| [V] | [V] | [V] | [mA] | [mW] | Ohm | |
| F4652-12 | 12V DC | 8,8 | 13,2 | 40 | 500 | 300 |
| F4652-24 | 24V DC | 17,5 | 26,4 | 20 | 500 | 1200 |
| F4652-AC230 | 230V AC | 184 | 253 | 5 | - | 28000 |
| F4661-12 | 12V DC | 8,8 | 13,2 | 40 | 500 | 300 |
| F4661-24 | 24V DC | 17,5 | 26,4 | 20 | 500 | 1200 |
| F4661-AC24 | 24V AC | 19,2 | 26,4 | 45 | - | 320 |
| F4661-AC230 | 230V AC | 184 | 253 | 5 | - | 28000 |
| UN = Rated Voltage, Umin. = Minimum Operating Voltage, Umax. = Maximum Operating Voltage, IN = Rated Current, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 20°C | ||||||
|
||||||
| Norms |
| Secure separation between coil and contacts with VDE0106, EN50178, EN60204 and EN60335. |
|
| Labelling |
 |
|
| Approvals |
     |
|
