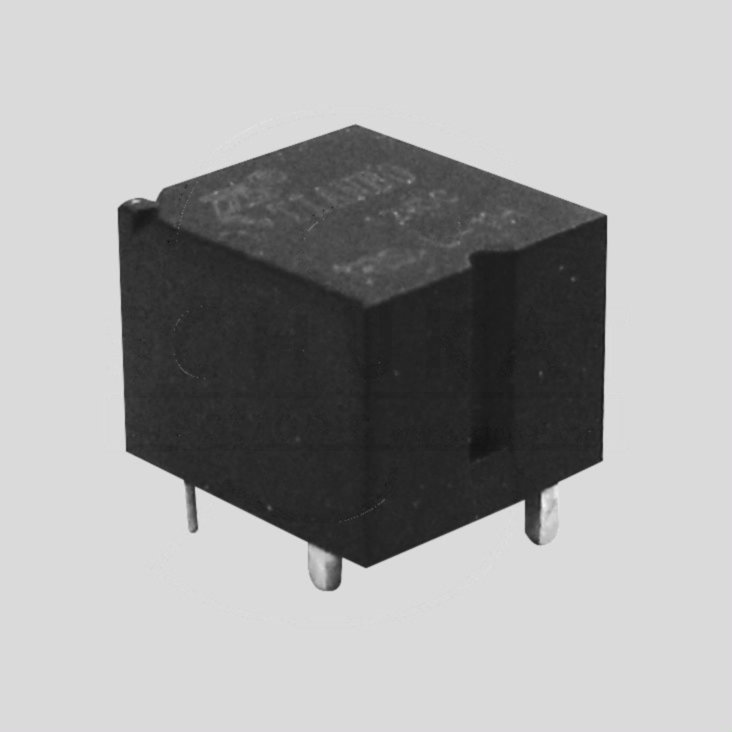

Miniature-High-Current-Relay 12V 30A 253R
Varenummer:
103-922
Varekode:
TRS-L-12
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
E6516
Automotive Relays
Series: TRS

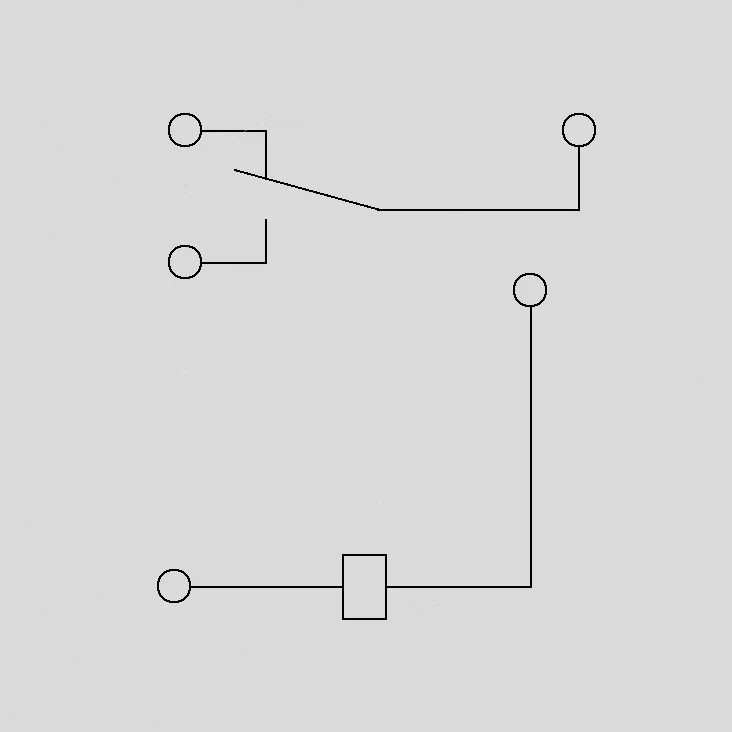

Contact: SPDT
Rated Current: 30A
Housing: 13,2x12,3x9,8mm
E6516
Automotive Relays
Series: TRS
Contact: SPDT
Rated Current: 30A
Housing: 13,2x12,3x9,8mm
| Features |
| • Smallest power relay • For Automotive Applications • 30A 16VDC switching rating |
 |
| Technical Specifications |
| |
| Contact: | SPDT |
| Contact Material: | AgSnO2 |
| Rated Current: | 30A |
| Max. Switching Current: | 30A |
| Max. Switching Voltage: | 30V DC |
| Max. Switching Power: | 420W |
| Operate/Release Time: | 4/2ms |
| Testing Voltage | |
| Coil/Contact: | 500V |
| Lifetime | |
| Mechanical: | 10x106 Operations |
| Electrical: | 10x104 Operations |
| Operating Temperature: | -40...+105°C |
| Weight Approx.: | 4g |
| |
| Coil Data |
| Part Nr. | UN | Umin. | Umax. | PN | RN |
| [V DC] | [V] | [V] | [mW] | [W] | |
| TRS-L-12 | 12 | 1,2 | 6,9 | 570 | 253 |
| TRS-L-24 | 24 | 2,4 | 13,8 | 570 | 1016 |
| UN = Rated Voltage, Umin. = Minimum Operating Voltage, Umax. = Maximum Operating Voltage, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 20°C | |||||
| |||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
| Various |
|
Stregkode:
103922
Intern reference:
103922
Varekode:
TRS-L-12
