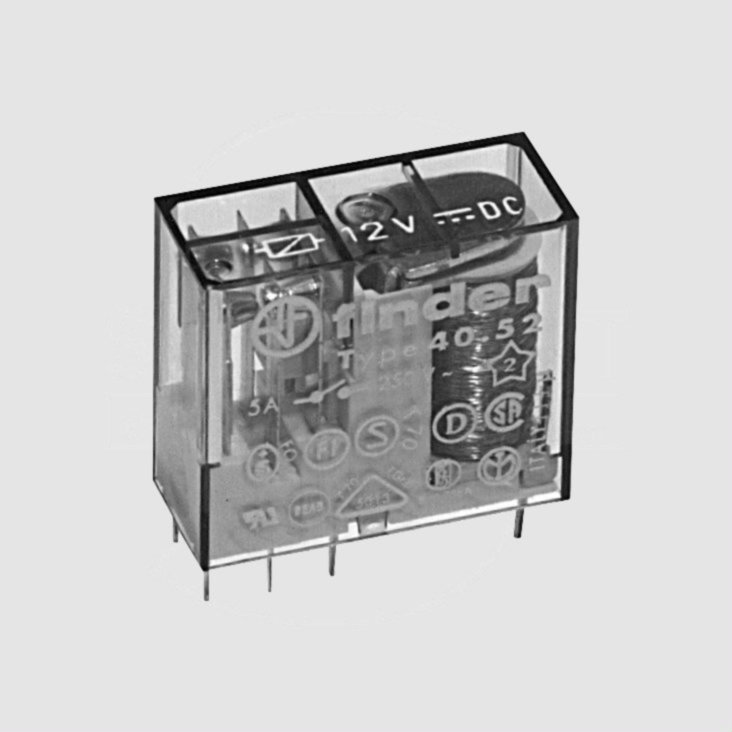

Relay DPDT 8A 12V 300R 40.52.7.012.0000
Varenummer:
103-905
Varekode:
F40527-12
Vægt:
20 g
Lagerstatus:
Ikke på lager
Gruppe: E6451
FINDER Power PCB Relays
Series: 40.52
Contact: DPDT
Rated Current: 8A

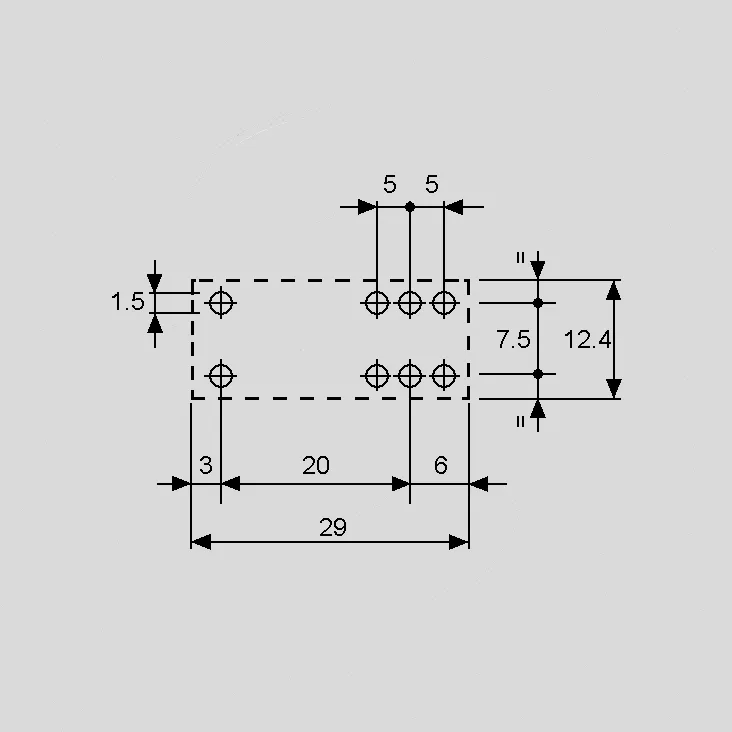

Housing: 29,0x12,4x25,0mm
| Contact: | DPDT |
| Contact Material | |
| F4052_: | AgNi |
| F4052_G: | AgNi + Au (5µm) |
| Rated Current: | 8A |
| Max. Switching Current: | 15A |
| Max. Switching Voltage: | 400V AC |
| Max. Switching Power: | 2000VA |
| Creepage/Clearance: | 8mm |
| Operate/Release Time | |
| F4052_: | 7/3ms |
| F40527_ (Sensitive): | 12/4ms |
| Testing Voltage | |
| Coil/Contact: | 6000V AC |
| Opening Contact: | 1000V AC |
| Lifetime | |
| Mechanical (AC/DC): | 10x106 / 20x106 Operations |
| Electrical: | 10x104 Operations |
| Operating Temperature: | -40...+85°C |
 |
|
| Coil Data |
| Part Nr. | UN | Umin. | Umax. | IN | PN | RN |
| [V] | [V] | [V] | [mA] | [mW] | [Ohm] | |
| F4052-12 | 12V DC | 8,8 | 18 | 55 | 650 | 220 |
| F4052-24 | 24V DC | 17,5 | 36 | 27 | 650 | 900 |
| F4052-AC230G | 230V AC | 184 | 253 | 5 | - | 28000 |
| F40527-05 | 5V DC | 3,7 | 7,5 | 100 | 500 | 50 |
| F40527-12 | 12V DC | 8,8 | 18 | 42 | 500 | 288 |
| F40527-12G | 12V DC | 8,8 | 18 | 42 | 500 | 288 |
| F40527-24 | 24V DC | 17,5 | 36 | 21 | 500 | 1150 |
| F40527-24G | 24V DC | 17,5 | 36 | 21 | 500 | 1150 |
| UN = Rated Voltage, Umin. = Minimum Operating Voltage, Umax. = Maximum Operating Voltage, IN = Rated Current, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 20°C | ||||||
