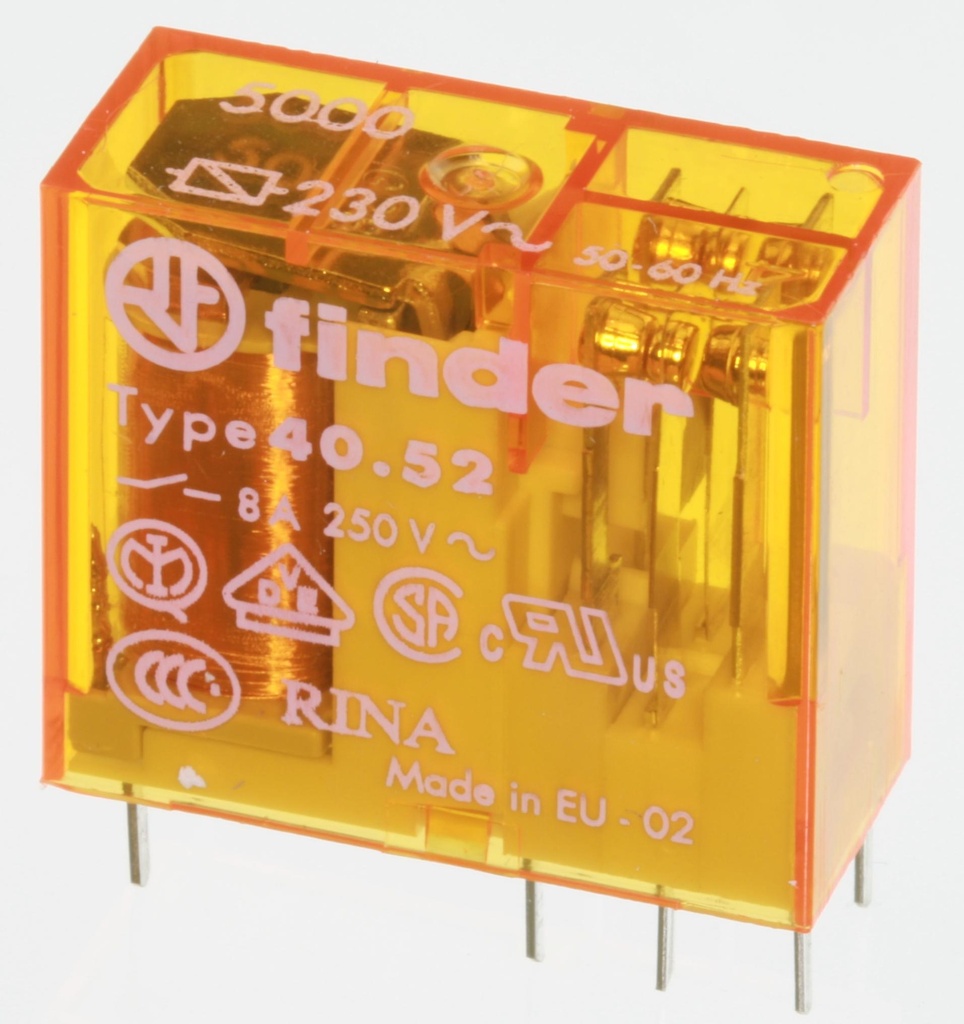

Finder Relæ 230VAC/28K/DPDT/2xSkifte/8A-250VAC
Varenummer:
103-903
Varekode:
F4052-AC230G
Vægt:
20 g
Lagerstatus:
Ikke på lager
Gruppe: E6451
FINDER Power PCB Relays
Series: 40.52
Contact: DPDT
Rated Current: 8A

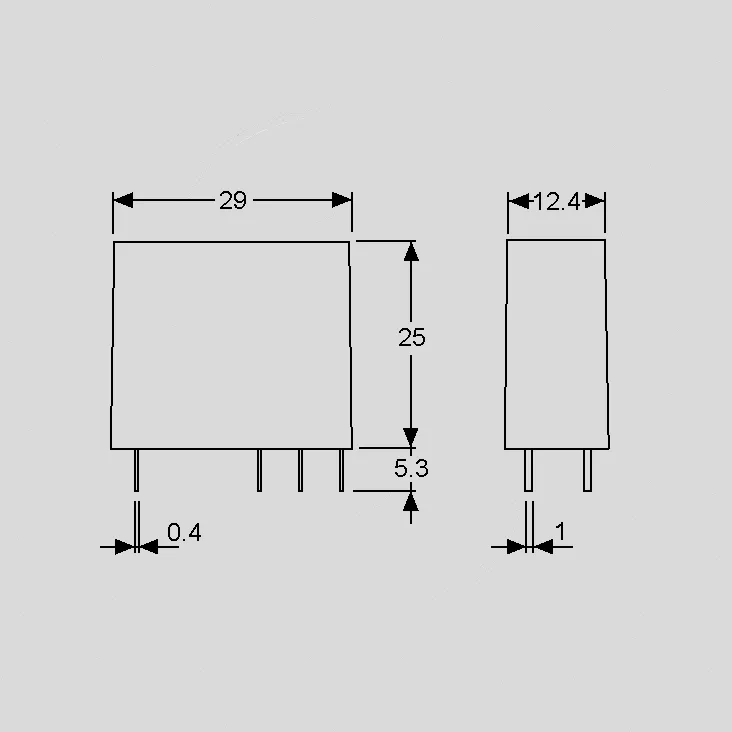

Housing: 29,0x12,4x25,0mm
| Features |
| • Version AC/DC (F4052_) or DC sensitive DC 0,5W (F40527_) • Flux protection (260°C, 5s) • Relay protection class RTII |
 |
| Technical Specifications |
|
|||||||||||||||||||||||||||||||||||||||
| Contact: | DPDT | Contact Material | F4052_: | AgNi | F4052_G: | AgNi + Au (5µm) | Rated Current: | 8A | Max. Switching Current: | 15A | Max. Switching Voltage: | 400V AC | Max. Switching Power: | 2000VA | Creepage/Clearance: | 8mm | Operate/Release Time | F4052_: | 7/3ms | F40527_ (Sensitive): | 12/4ms | Testing Voltage | Coil/Contact: | 6000V AC | Opening Contact: | 1000V AC | Lifetime | Mechanical (AC/DC): | 10x106 / 20x106 Operations | Electrical: | 10x104 Operations | Operating Temperature: | -40...+85°C | ||||||
|
|||||||||||||||||||||||||||||||||||||||
| Coil Data |
| Part Nr. | UN | Umin. | Umax. | IN | PN | RN | [V AC/DC] | [V] | [V] | [mA] | [mW] | [W] | F4052-12 | 12 | 8,8 | 18 | 55 | 650 | 220 | F4052-24 | 24 | 17,5 | 36 | 27 | 650 | 900 | F4052-AC230_ | 230 | 184 | 253 | 5 | - | 28000 | F40527-05 | 5 | 3,7 | 8,8 | 100 | 500 | 50 | F40527-12_ | 12 | 8,8 | 21 | 40 | 500 | 300 | F40527-24_ | 24 | 17,5 | 42 | 20 | 500 | 1200 | ||||||||
| UN = Rated Voltage, Umin. = Minimum Operating Voltage, Umax. = Maximum Operating Voltage, IN = Rated Current, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 20°C | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Note |
| • Assembly by direct soldering in the PCB or • PCB socket F95152 with retaining clip F9551SW resp. F95523, see product group E6481, or • DIN rail socket F95853 resp. F95953 with retaining clip F95913, see product group E6485 |
|
| Norms |
| Secure separation between coil and contacts with VDE0106, EN50178, EN60204 and EN60335. |
|
| Labelling |
 |
|
| Approvals |
         |
|
| Additional Products |
| Wash tight version of 500 pieces on request, delivery time approx. 8 weeks. |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
 |
| http://www.findernet.com |
|
