Relay SPDT 10A 12V 400R 36.11.9.012.4011
Varenummer:
103-901
Varekode:
F36119-012A
Vægt:
10 g
Lagerstatus:
Lager: 24 stk.
Gruppe: E6436
FINDER Power PCB Relays
Series: 36.11
Contact: SPDT
Rated Current: 10A

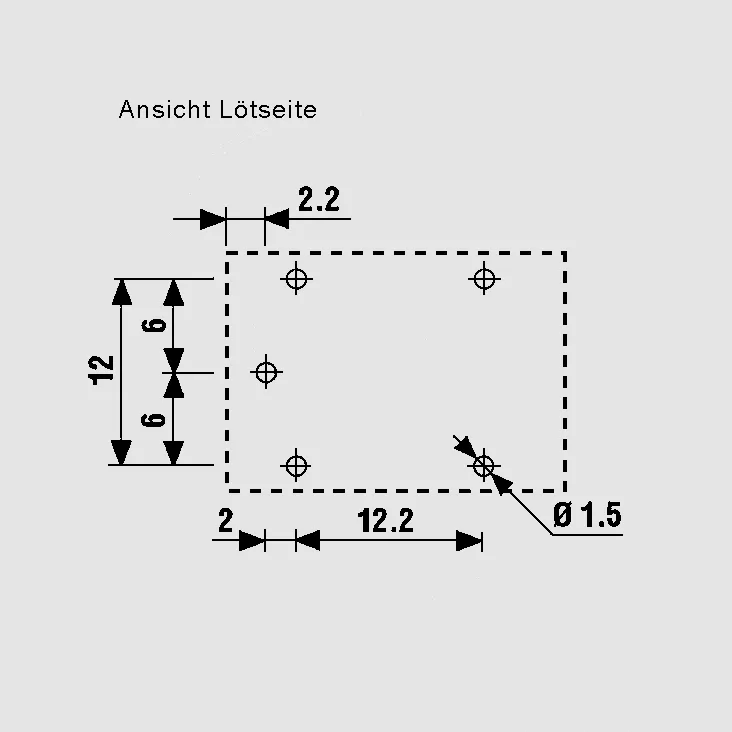

Housing: 19x15,5x15,5mm
FINDER Power PCB Relays
Series: 36.11
Contact: SPDT
Rated Current: 10A
Housing: 19x15,5x15,5mm
| Features |
| • Smaller size • Wash tight enclosure • Coil 360mV • Relays protection class RTIII |
 |
| Technical Specifications |
| |
| Contact: | SPDT |
| Contact Material: | AgSnO2 |
| Rated Current: | 10A |
| Max. Switching Current: | 15A |
| Max. Switching Voltage: | 250V AC |
| Max. Switching Power: | 2500VA |
| Operate/Release Time: | 9/3ms |
| Testing Voltage | |
| Coil/Contact: | 4000V AC |
| Opening Contact: | 1000V AC |
| Lifetime | |
| Mechanical: | 10x106 Operations |
| Electrical: | 10x104 Operations |
| Operating Temperature: | -40...+85°C |
| |
| Coil Data |
| Part Nr. | UN | Umin. | Umax. | IN | RN |
| [V DC] | [V] | [V] | [mA] | [W] | |
| F36119-003A | 3 | 2,2 | 4,5 | 120 | 25 |
| F36119-005A | 5 | 3,7 | 7,5 | 72 | 70 |
| F36119-006A | 6 | 4,5 | 9 | 60 | 100 |
| F36119-009A | 9 | 6,7 | 13,5 | 40 | 225 |
| F36119-012A | 12 | 9 | 18 | 30 | 400 |
| F36119-024A | 24 | 18 | 36 | 15 | 1600 |
| F36119-048A | 48 | 36 | 72 | 7,5 | 6400 |
| UN = Rated Voltage, Umin. = Minimum Operating Voltage, Umax. = Maximum Operating Voltage, IN = Rated Current, RN = Coil Resistance; All Specifications Measured at 20°C | |||||
| |||||
| Approvals |
  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.findernet.com |
|
