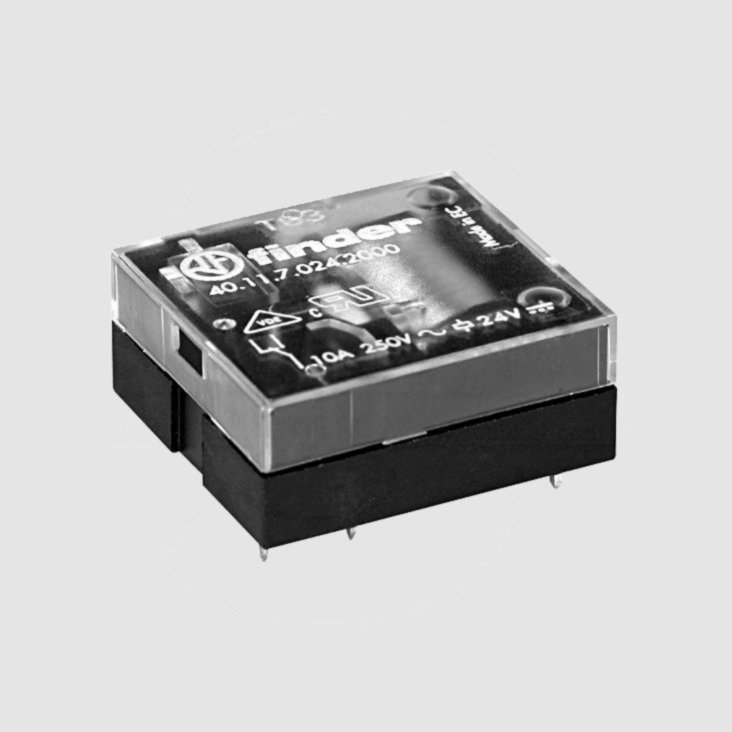

Relay SPDT 12V 10A 300R Horizontal
Varenummer:
103-892
Varekode:
F4011-12A
Vægt:
20 g
Lagerstatus:
Ikke på lager
Gruppe:
E6414
FINDER Power PCB Relays
Series: 40.11
Contact: SPDT
Rated Current: 10A

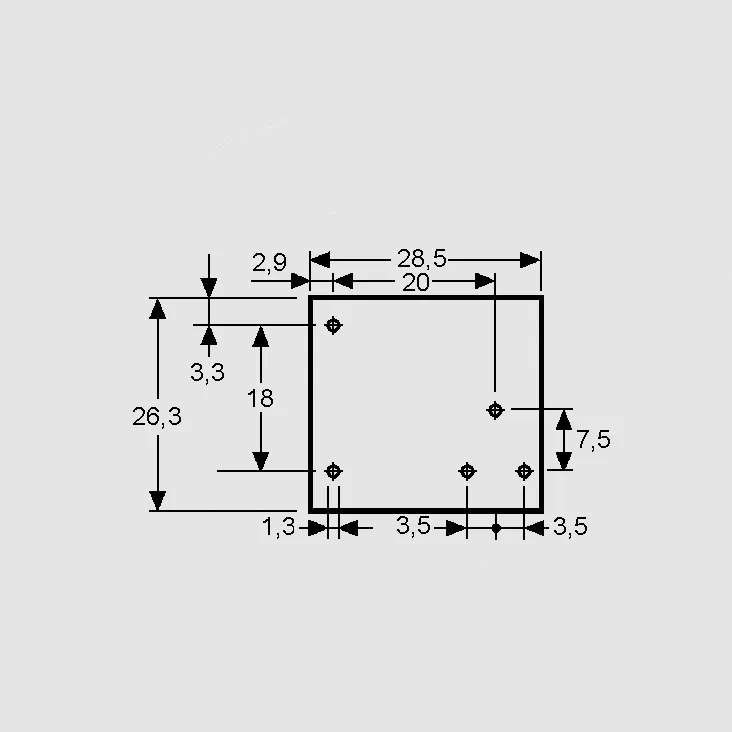

Housing: 28,5x26,3x12,7mm
FINDER Power PCB Relays
Series: 40.11
Contact: SPDT
Rated Current: 10A
Housing: 28,5x26,3x12,7mm
| Features |
| • Horizontal type • Sensitive coil: 500mW • 6kV coil/contact • Relay protection class RTI |
 |
| Technical Specifications |
| |
| Contact: | SPDT |
| Contact Material: | AgCdO |
| Rated Current: | 10A |
| Max. Switching Current: | 20A |
| Max. Switching Voltage: | 400V AC |
| Max. Switching Power: | 2500VA |
| Creepage/Clearance: | 8mm |
| Operate/Release Time: | 12/4ms |
| Testing Voltage | |
| Coil/Contact: | 6000V AC |
| Opening Contact: | 1000V AC |
| Lifetime | |
| Mechanical: | 20x106 Operations |
| Electrical: | 20x104 Operations |
| Operating Temperature: | -40...+70°C |
| |
| Coil Data |
| Part Nr. | UN | Umin. | Umax. | PN | RN |
| [V DC] | [V] | [V] | [mW] | [W] | |
| F4011-12A | 12 | 8,8 | 21 | 500 | 300 |
| F4011-24A | 24 | 17,5 | 42 | 500 | 1200 |
| UN = Rated Voltage, Umin. = Minimum Operating Voltage, Umax. = Maximum Operating Voltage, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 20°C | |||||
| |||||
| Approvals |
  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.findernet.com |
|
