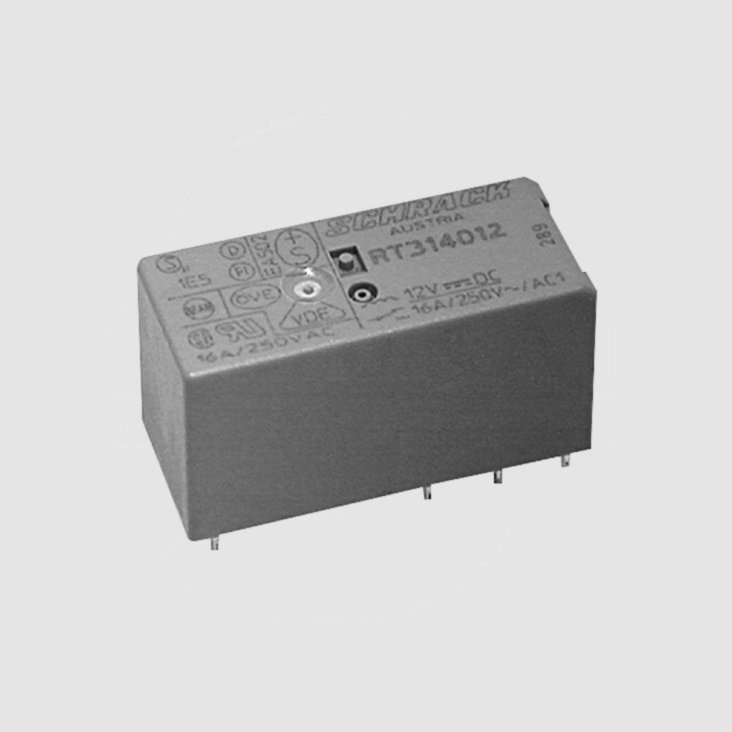

Relay SPST 16A 230VAC 32,5K

Varenummer:

103-880

Varekode:

RT334-AC230

Vægt:

10 g

Lagerstatus:

Ikke på lager

v/10

Kr. 61,88

v/25

Kr. 51,56

v/100

Kr. 41,25

v/1000

Kr. 30,94

Denne kombination eksistere ikke.

Køb

Features

• RT114_, RT314: SPDT
• RT424_: DPDT
• RT334_: SPST-NO
• Sensitive reel 400mW
• 5kV/10mm coil contact, protection class II
• Low height 15,7mm

Technical Specifications

Contact Data



Configuration
RT114_,RT314_:	SPDT
RT424_:	DPDT
RT334_:	SPST-NO
Contact Material:	AgNi 90/10
Rated/Breaking Voltage (Ohmic Load) Max.
RT114_:	12A/250V AC
RT314:	16A/250V AC
RT424:	8A/250V AC
Switching Voltage, Max.:	240/400V AC
Breaking Capacity AC, Max.
8A:	2000 VA
12A:	3000 VA
16A:	4000 VA
Mechanical Life
DC-Coil:	>30x10⁶ Operations
AC-Coil:	>10x10⁶ Operations
AC-Coil, RT424_:	>5x10⁶ Operations

Coil Data


Part Nr.	U_N	U_An	U_Ab	R_N	P_N
	[V DC/AC]	[V DC/AC]	[V DC]	[W]	[mW/VA]
RT_-12	12	8,4	1,2	360	400
RT_-24	24	16,8	2,4	1440	400
RT_-AC230	230~	172,5	34,5	32500	0,74
U_N = Rated Voltage, U_An = Operate Voltage, U_Ab = Release Voltage, P_N = Rated Coil Power; All Specifications are Given for Coil without Preenergization, Ambient Temperature +23°C

Approvals

REG.-Nr. 6101,

E214025,

C0786

Manufacturer

http://www.schrackrelays.com
