  6. PrintRelæ 24VDC/220mW/2350R/1xSKIFTE

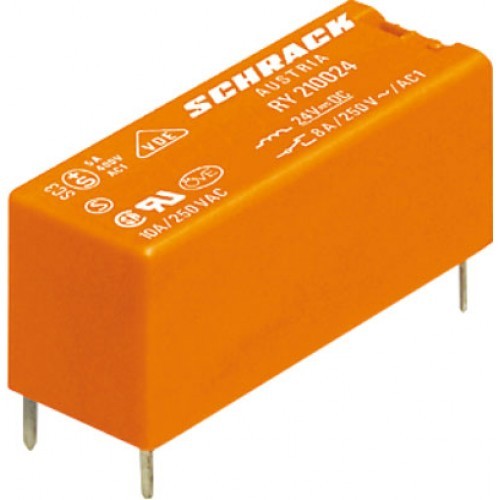

PrintRelæ 24VDC/220mW/2350R/1xSKIFTE

Varenummer:
103-867
Varekode:
RY210024
Vægt:
30 g
Lagerstatus:
Lager: 10 stk.

kr 31,50 31.5 DKK kr 31,50 Inklusiv moms

kr 31,50 Inklusiv moms

Anmod os om en pris

v/10
Kr. 35,79
v/25
Kr. 27,74
v/100
Kr. 24,69

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/59623/image_1920?unique=5f2fec2 https://elektroniklavpris.odoo.com/web/image/product.template/59623/image_1920?unique=5f2fec2
Features
• SPDT
• Flux proof
• Sensitive coil: 220...250mW
• Operating power: approx. 100mW
• Only 12mm in height
• Protective class II (according to VDE0700)
• Insulation category C/250 (according to VDE0110)
• Test voltage: 5kV/8mm
Technical Specifications
    Insulation (to VDE0110): C/250 Insulation Resistance, Max. (500V DC): >1 x 104MW Dielectric Strength Coil/Contact: >5000V AC Open Contact: >1000V AC Clearance and Creepage: 8mm Ambient Temperature: -40...+70°C (85°C at 6A) Operate Time, Typ.: 7ms Release Time, Typ.: 3ms Vibration Resistance (30...150Hz): 20G Weight: Approx. 8g
Contact Data
    Contact Configuration: SPDT Type of Contact: Single Contact Material RYII_: AgNi 0,15 RY21_: AgCdO Maximum Breaking Capacity AC: 2000VA Rated Voltage: 250V AC Breaking Voltage AC, Max.: 440V AC Rated Current: 8A Inrush Current (According to UL508 B300): 30A Operating Life Mechanical: 30x106 Operations Switching Rate Without Load: 72.000 Operations/h At Rated Load: 360 Operations/h
Coil Data
    Coil Type: Monostable Nominal Voltage: See Table Nominal Coil Power: 220mW
              Part Nr. UN UAn UAb IN RN Tol.   [V DC] [V DC] [V DC] [mA] [W] [%] RYII012 12 8,4 1,2 19,3 620 ±10 RYII024 24 16,8 2,4 10,2 2350 ±10 RY210024 24 16,8 2,4 10,2 2350 ±10
UN = Rated Voltage, UAn = Operate Voltage, UAb = Release Voltage, IN = Rated Current, RN = Coil Resistance, Tol. = Tolerance of Coil Resistance; All Figures are Given for Coil without Preenergization at Ambient Temperature +20°C
Approvals
Additional Products
We can also supply on request (minimum order quantity 500 pieces, delivery time 12 weeks):
• relays with 5V, 6V and 48V rated voltage
• watertight relays
Manufacturer
http://www.schrackrelays.com
