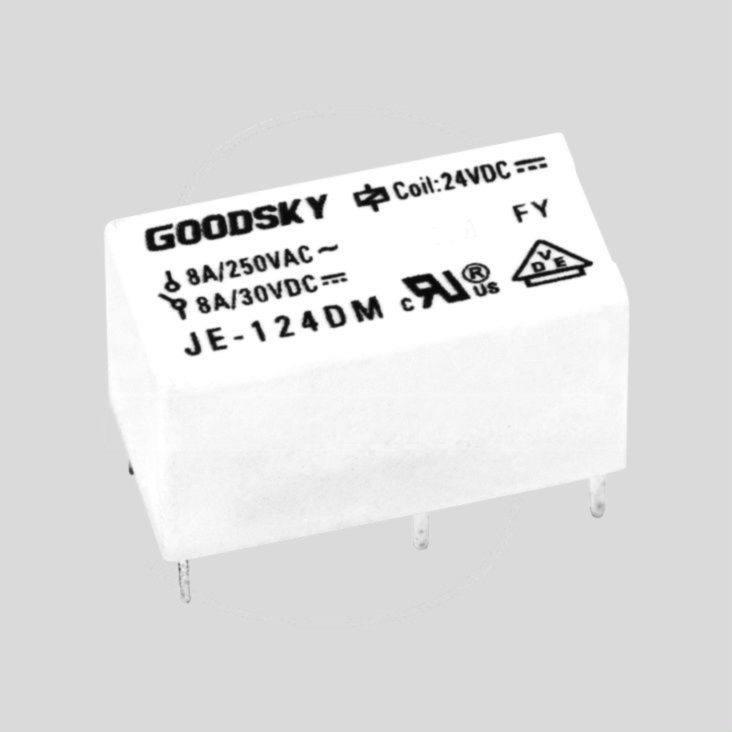

Relay SPDT 5A 24V 2880R
Varenummer:
103-865
Varekode:
JE124D
Vægt:
10 g
Lagerstatus:
Ikke på lager
Gruppe:
E6332
GOODSKY Power PCB Relays
Series: JE
Contact: SPST or SPDT
Rated Current: 5A or 8A
Housing: 20,0x10,0x10,5mm
GOODSKY Power PCB Relays
Series: JE
Contact: SPST or SPDT
Rated Current: 5A or 8A
Housing: 20,0x10,0x10,5mm
| Features |
| • Sensitivity coil 200mW • 4kV dielectric strength coil/contact • Optimized height of 10,5mm |
 |
| Technical Specifications |
| |
| Contact | |
| JE_DM: | SPST |
| JE_D: | SPDT |
| Contact Material: | Ag Alloy |
| Rated Current | |
| JE_DM: | 8A |
| JE_D: | 5A |
| Max. Switching Current | |
| JE_DM: | 8A |
| JE_D: | 5A |
| Max. Switching Voltage: | 250V AC / 30V DC |
| Max. Switching Power | |
| JE_DM: | 1500VA / 240W |
| JE_D: | 1250VA / 150W |
| Operate/Release Time: | 8/4ms |
| Testing Voltage | |
| Coil/Contact: | 4000V AC |
| Contact/Contact: | 1000V AC |
| Lifetime | |
| Mechanical: | 1x107 Operations |
| Electrical: | 1x105 Operations |
| Operating Temperature: | -40...+85°C |
| Weight Approx.: | 6g |
| |
| Coil Data |
| Part Nr. | UN | UAn | UAb | IN | PN | RN |
| [V DC] | [V] | [V] | [mA] | [mW] | [W] | |
| JE105DM | 5 | 3,75 | 0,25 | 40,0 | 200 | 125 |
| JE106DM | 6 | 4,5 | 0,30 | 33,3 | 200 | 180 |
| JE112DM | 12 | 9,0 | 0,60 | 16,7 | 200 | 720 |
| JE124DM | 24 | 18,0 | 1,20 | 8,3 | 200 | 2880 |
| JE105D | 5 | 3,75 | 0,25 | 40,0 | 200 | 125 |
| JE106D | 6 | 4,5 | 0,30 | 33,3 | 200 | 180 |
| JE112D | 12 | 9,0 | 0,60 | 16,7 | 200 | 720 |
| JE124D | 24 | 18,0 | 1,20 | 8,3 | 200 | 2880 |
| UN = Rated Voltage, UAn = Operate Voltage, UAb = Release Voltage, IN = Rated Current, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 20°C | ||||||
| ||||||
| Approvals |
  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
| GOODSKY http://www.goodsky.com.tw |
|
Stregkode:
103865
Intern reference:
103865
Varekode:
JE124D
