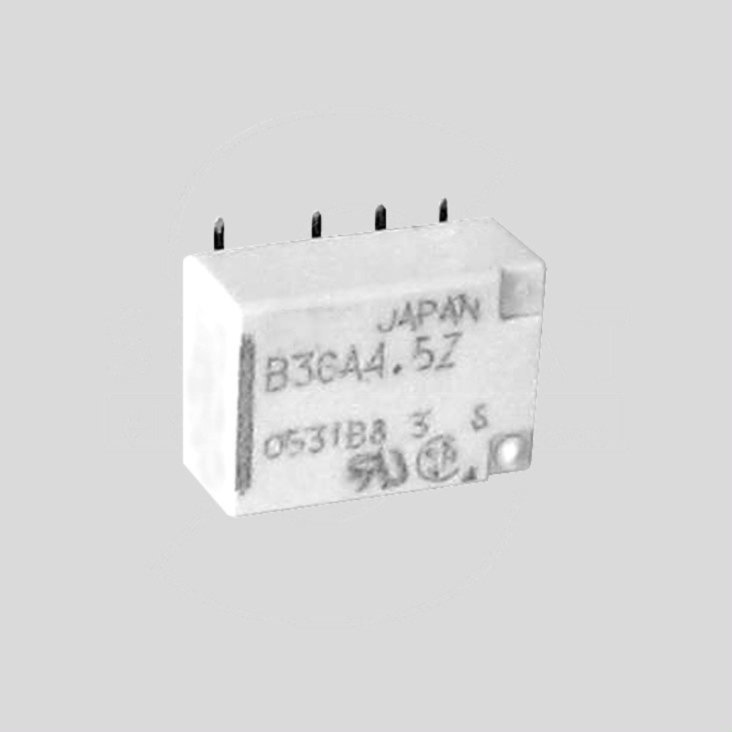

Relay DPDT 4,5V 2A 145R
Varenummer:
103-845
Varekode:
FTR-B3-4,5
Vægt:
0 g
Lagerstatus:
Lager: 6 stk.
Gruppe: E6210
FUJITSU SMD PCB Relays
Series: FTR-B3, FTR-B4
Contact: DPDT
Rated Current: 2A
Housing: 10,6x7,2x5,45mm and 10,6x5,7x9,7mm
FUJITSU SMD PCB Relays
Series: FTR-B3, FTR-B4
Contact: DPDT
Rated Current: 2A
Housing: 10,6x7,2x5,45mm and 10,6x5,7x9,7mm
| Features |
| • Ultra slim and light weight • FTRB3_: low profile • FTRB4_: slim profile • FTR_GA_: normal SMD • FTR_SA_: SMD, space saving • Low coil power consumption with 140mW • Gold-plated silver alloy bifurcated contacts for high contact reliability • Suitable for reflow and hand soldering |
 |
| Technical Specifications |
| |
| Contact: | DPDT |
| Contact Material: | Ag,Ni Gold overlay |
| Rated Current: | 2A |
| Max. Switching Voltage: | 250VAC / 220VDC |
| Switching Power: | 62,5VA / 30W |
| Creepage/Clearance: | 0,28mm |
| Operate/Release Time: | 3/3ms |
| Testing Voltage | |
| Coil/Contact: | 1500V AC |
| Contact/Contact: | 1000V AC |
| Lifetime | |
| Min. Mechanical: | 50x106 Operations |
| Min. Electrical: | 100x103Operations |
| Operating Temperature: | -40...+85°C |
| Weight Approx.: | |
| FTRB3_: | 0,8g |
| FTRB4_: | 1,0g |
| |
| Coil Data |
| Part Nr. | UN | UAn | UAb | PN | RN |
| [V DC] | [V DC] | [V DC] | mW | W | |
| B3GA003Z-B10 | 3 | 2,25 | 0,3 | 140 | 64,3 |
| B3GA4.5Z-B10 | 4,5 | 3,38 | 0,45 | 140 | 145 |
| B3GA012Z-B10 | 12 | 9 | 1,2 | 140 | 1028 |
| B3SA003Z-B10 | 3 | 2,25 | 0,3 | 140 | 64,3 |
| -B3-4.5 | 4,5 | 3,38 | 0,45 | 140 | 145 |
| B3SA012Z-B10 | 12 | 9 | 1,2 | 140 | 1028 |
| B4GA003Z-B05 | 3 | 2,25 | 0,3 | 140 | 64,3 |
| B4GA4.5Z-B05 | 4,5 | 3,38 | 0,45 | 140 | 145 |
| B4GA012Z-B05 | 12 | 9 | 1,2 | 140 | 1028 |
| UN = Rated Voltage, UAn = Operate Voltage, UAb = Release Voltage, PN = Rated Power, RN = Coil Resistance; All Specifications Measured at 20°C; | |||||
| |||||
| Approvals |
  |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
| Fujitsu http://www.fujitsu.com |
|
