Relay SPDT 2A 5V 167R
Varenummer:
103-840
Varekode:
STSH105L
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
E6211
GOODSKY Signal PCB Relays
Series: ST
Contact: SPDT
Rated Current: 2A

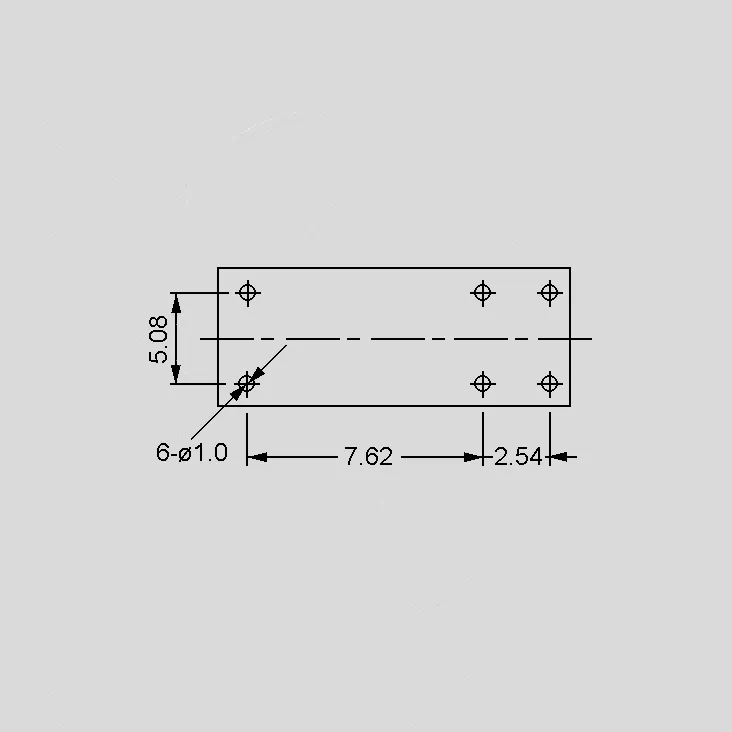

Housing: 12,6x7,8x10,0mm
GOODSKY Signal PCB Relays
Series: ST
Contact: SPDT
Rated Current: 2A
Housing: 12,6x7,8x10,0mm
| Features |
| • Wash tight construction • Very small size with light weight |
 |
| Technical Specifications |
| |
| Contact: | SPDT |
| Contact Material: | Silver, Gold-Plated |
| Rated Current: | 2A |
| Min. Switching Current: | 10mA, 5V DC |
| Max. Switching Voltage: | 125V AC / 60V DC |
| Operate/Release Time: | 5/5ms |
| Testing Voltage (50/60Hz, 1Min.) | |
| Coil/Contact: | 1000V AC |
| Contact/Contact: | 400V AC |
| Lifetime | |
| Mechanical: | 1x107 Operations |
| Electrical: | 1x105 Operations |
| Operating Temperature: | -30...+70°C |
| Weight Approx.: | 2g |
| |
| Coil Data |
| Part Nr. | UN | UAn | UAb | IN | RN |
| [V DC] | [V] | [V] | [mA] | [W] | |
| STSH105L | 5 | 4,0 | 0,25 | 29,9 | 167 |
| STSH112L | 12 | 9,6 | 0,60 | 12,5 | 960 |
| STSH105T | 5 | 3,75 | 0,25 | 40,0 | 125 |
| STSH112T | 12 | 9,0 | 0,60 | 16,7 | 720 |
| STSH124T | 24 | 18,0 | 1,20 | 8,3 | 2880 |
| UN = Rated Voltage, UAn = Operate Voltage, UAb = Release Voltage, IN = Operating Performance, RN = Coil Resistance; Rated Value ±10%; All Specifications Measured at 20°C | |||||
| |||||
| Approvals |
 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
| GOODSKY http://www.goodsky.com.tw |
|
