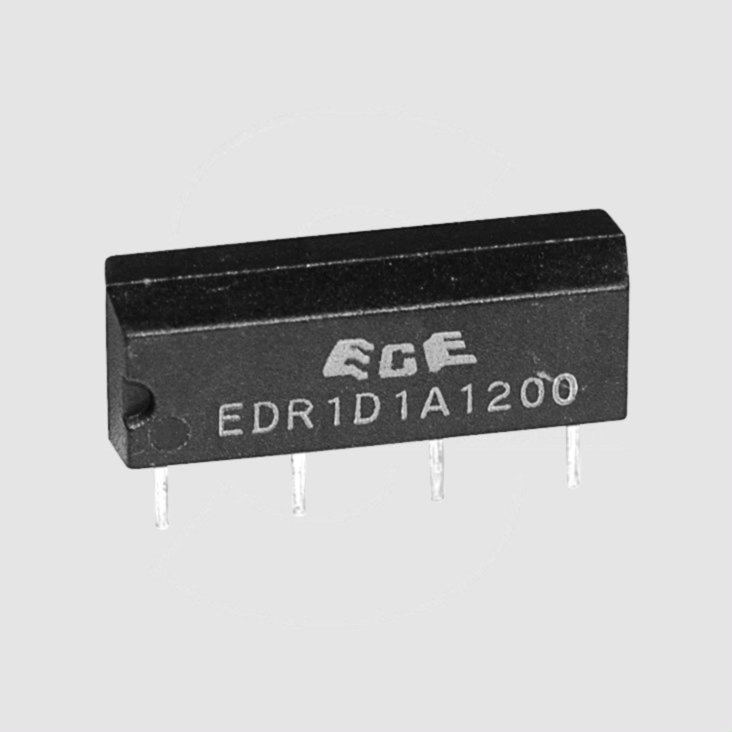

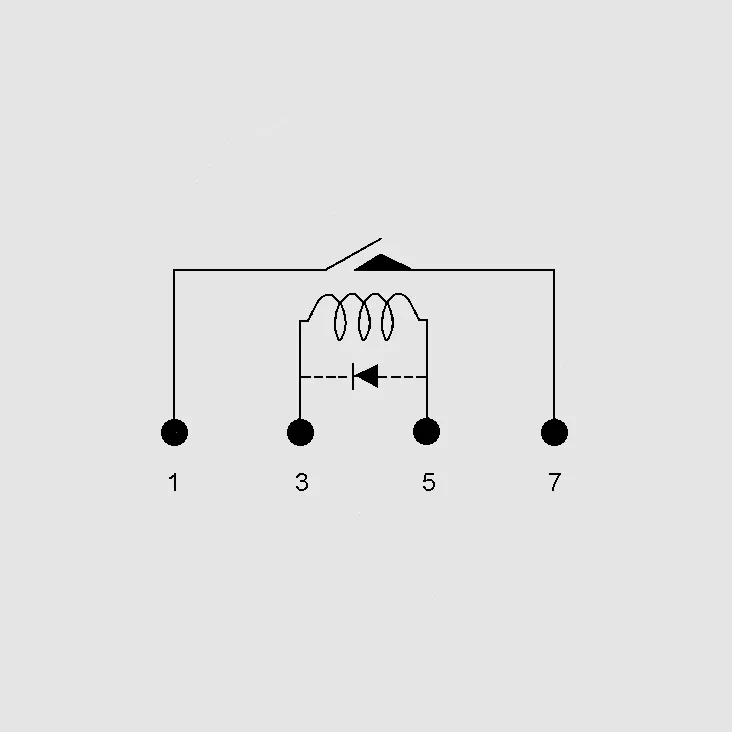

SIL Reed Relay SPST 24V 2150R Diode
Varenummer:
103-836
Varekode:
EDR1D1A2400Z
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
E4454
ECE SIP/SIL Reed Relays
Series: EDR
With or Without Diode
Contact: SPST-NO
Housing: SIP/SIL07
ECE SIP/SIL Reed Relays
Series: EDR
With or Without Diode
Contact: SPST-NO
Housing: SIP/SIL07
| Features |
| • Wash Tight • High coil resistance • Insulation resistance (coil/contacts): 1400V • Requires only half the PCB area of DIP/DIL relays • EDR1D1_: with diode |
 |
| Technical Specifications |
| |
| Insulation Resistance (Coil/Contacts), Min.: | 1010W |
| Insulation (Coil/Contacts): | 1400V DC |
| Storage Temperature: | -55...+125°C |
| Temperature Range: | -40...+85°C |
| Operate Time (incl. Bounce Time): | 1,0ms |
| Reset Time: | 0,5ms |
| Vibration Resistance (50...500Hz): | 30G |
| |
| Contact Data |
| |
| Configuration: | SPST-NO |
| Contact Resistance, Max.: | 150mW |
| Switching Capacity, Max.: | 10VA |
| Switching Voltage, Max.: | 100V DC |
| Switching Current, Max.: | 0,5A |
| Current After Closed Contact: | 1,0A |
| Breakdown Voltage: | 250V DC |
| |
| Coil Data |
| |
| Coil Type: | Polarized, Monostable |
| |
| Part Nr. | UN | UAn | UAb | Umax | RN | PN |
| [V DC] | [V DC] | [V DC] | [V DC] | [W] | [mW] | |
| EDR101A0500Z | 5 | 3,75 | 0,8 | 16 | 500 | 50 |
| EDR101A1200Z | 12 | 9,0 | 1,0 | 20 | 1000 | 144 |
| EDR101A2400Z | 24 | 18,0 | 2,0 | 32 | 2150 | 268 |
| EDR1D1A1000Z | 5 | 3,75 | 0,8 | 16 | 500 | 50 |
| EDR1D1A1200Z | 12 | 9,0 | 1,0 | 20 | 1000 | 144 |
| EDR1D1A2400Z | 24 | 18,0 | 2,0 | 32 | 2150 | 268 |
| UN = Rated Voltage, UAn = Operate Voltage, UAb = Drop-Out Voltage, Umax = Maximum Voltage, RN = Coil Resistance, ±10%, PN = Rated Capacity, Data Measured at 20°C | ||||||
| ||||||
| Approvals |
 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
| ECE http://www.ece.com.tw |
|
Stregkode:
103836
