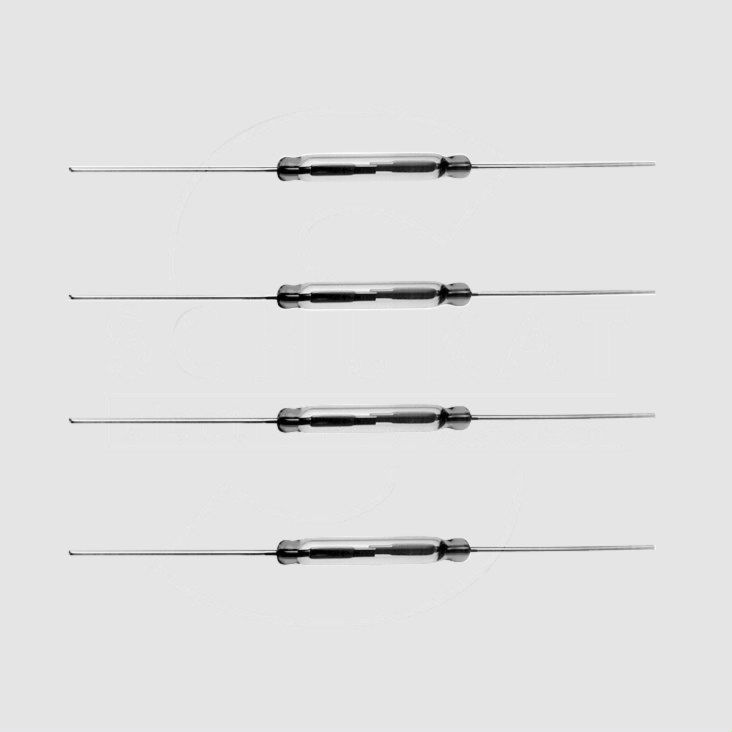

Reed Contact SPST 0,5A 40W AW30-40

Varenummer:

103-796

Varekode:

KSK1A52-3040

Vægt:

0 g

Lagerstatus:

Ikke på lager

v/10

Kr. 20,01

v/25

Kr. 14,30

v/100

Kr. 9,72

v/1000

Kr. 8,58

Denne kombination eksistere ikke.

Køb

Gruppe: E4111
MEDER Reed Contacts
Series: KSK1
Contact: SPST-NO or SPDT

Technical Specifications


Part Nr.	Type of Contact	U_S	I_S	R_K	t_S	t_Ab
		[V]	[A]	[mW]	[ms]	[ms]
KSK1A87-1520	SPST	200	0,5	150	0,6	0,1
KSK1A87-2025	SPST	200	0,5	150	0,6	0,1
KSK1A66-1020	SPST	200	0,5	150	0,5	0,1
KSK1A66-2030	SPST	200	0,5	150	0,5	0,1
KSK1A52-2030	SPST	250	0,5	200	1,0	0,1
KSK1A52-3040	SPST	250	0,5	200	1,0	0,1
KSK1A52-4050	SPST	250	0,5	200	1,0	0,1
KSK1C90-1520	SPDT	175	0,5	150	0,7	1,5
KSK1C90-2025	SPDT	175	0,5	150	0,7	1,5
U_S = Switching Voltage, Max., I_S = Switching Current, Max. (0,5V/10mA), R_K = Contact Resistance, Max., t_S = Switching Time incl. Bounce, t_Ab = Reset Time


Part Nr.	P_S	I_T	R_ISO	U_D	AE
	[W]	[A]	[W]	[V DC]	[AW]
KSK1A87-1520	10	0,5	10⁹	230	15...20
KSK1A87-2025	10	0,5	10⁹	230	20...25
KSK1A66-1020	10	1,25	10¹⁰	225	10...20
KSK1A66-2030	10	1,25	10¹⁰	225	20...30
KSK1A52-2030	50	2,5	10¹⁰	600	20...30
KSK1A52-3040	50	2,5	10¹⁰	600	30...40
KSK1A52-4050	50	2,5	10¹⁰	600	40...50
KSK1C90-1520	10	1,0	10⁹	200	15...20
KSK1C90-2025	10	1,0	10⁹	200	20...25
P_S = Switching Capacity, Max., I_T = Carry Current, Max., R_ISO = Insulation Resistance, U_D = Breakdown Voltage, Min., AE = Initial Excitation

Note

You will find suitable operating magnets in product groups E4311 and E4321.

Terms of Delivery

Minimum order quantity: 1 PKU = 10 pieces

Manufacturer

http://www.meder.com
