PSE-M16 Alu red non-illuminated
Varenummer:
103-750
Varekode:
1241-2411-3
Vægt:
30 g
Lagerstatus:
Ikke på lager
Gruppe:
E3129

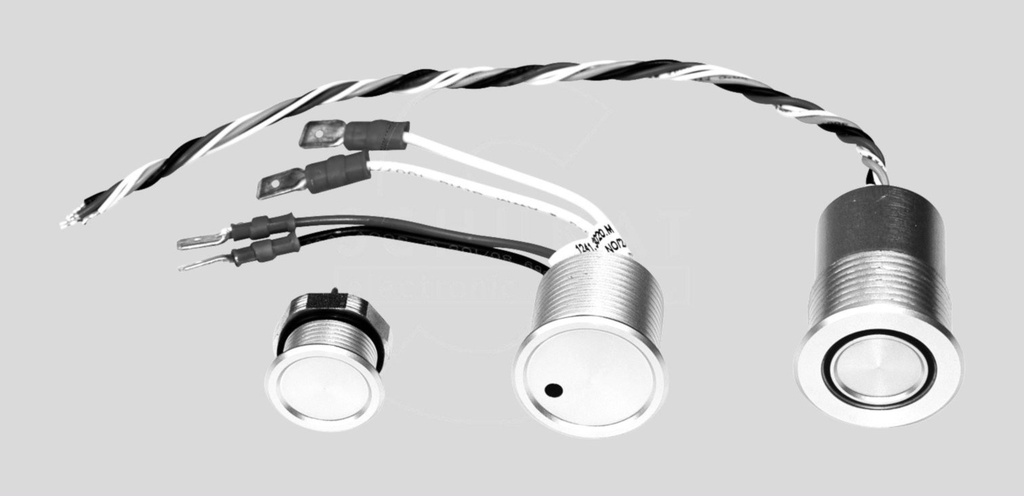

SCHURTER Piezo Pushbutton Momentary Switches
Series: PSE
Aluminium, Anodized, Vandal-proof, IP69K
Contact: SPST-NO
SCHURTER Piezo Pushbutton Momentary Switches
Series: PSE
Aluminium, Anodized, Vandal-proof, IP69K
Contact: SPST-NO
| Features |
| • Protection class IP69K • Hermatically sealed • Seewater suitable • Can be cleaned with high-pressure cleaners • High quality leads to very high cycling rate • Housing material: anodized aluminium • Housing colours: red, green and alu natural • With ring and point illumination or not illuminated • With pin, quick connect or flexible wire terminal |
 |
| Technical Specifications |
| |
| Material | |
| Housing: | Anodized Aluminium |
| Contacts: | Silver-plated |
| Switching Voltage, Max.: | 42VAC/60VDC |
| Switching Current, Max.: | 100mA |
| Switching Capacity, Max.: | 1W |
| Contact Resistance: | 20mW |
| Capacity: | 30pF |
| NO Pulse Time: | 20...1000ms |
| Contact Configuration: | Polarity-free |
| Contact: | NO |
| Supply Voltage LED: | 24V |
| Operating Force: | 1-3N1) |
| Operating Path: | 0,002mm |
| Operating Life/Cycles: | 20x106 |
| Temperature Range: | -40...+85°C |
| Protection Against Mechanical Strain | |
| DIN EN 50102, MSM19, 22: | IK02 |
| Protection Class: | IP69K |
| 1) At Temperatures Lower -10°C, The Actuating Force Increases 2- to 4-times | |
| |
| Selection Table |
| Part Nr. | PSE_ | Terminals | Housing | Illumination |
| Colour | ||||

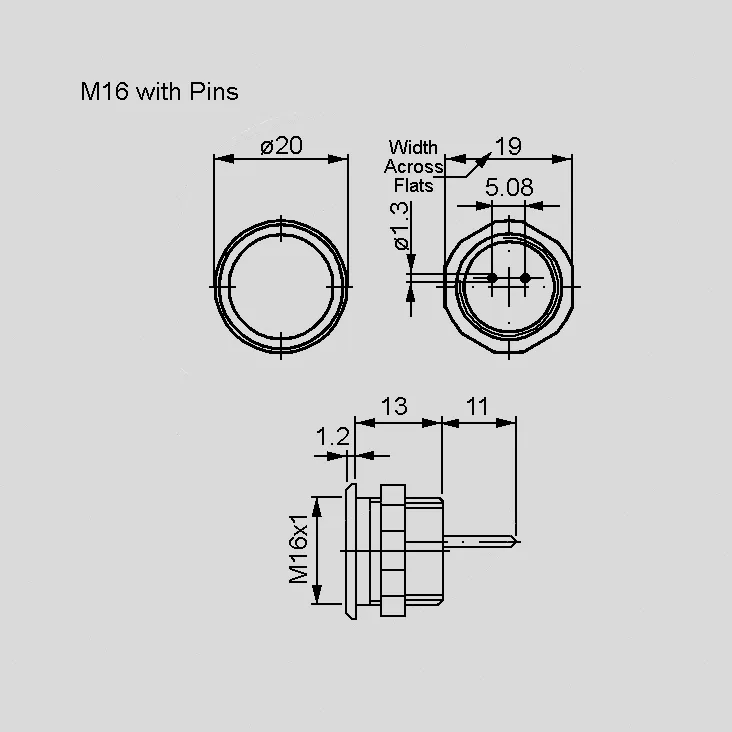

| 1241-2411-3 | M16 | Pins | Red | - |
| 1241-2411-5 | M16 | Pins | Green | - |
| 1241-2411-8 | M16 | Pins | Natural | - |

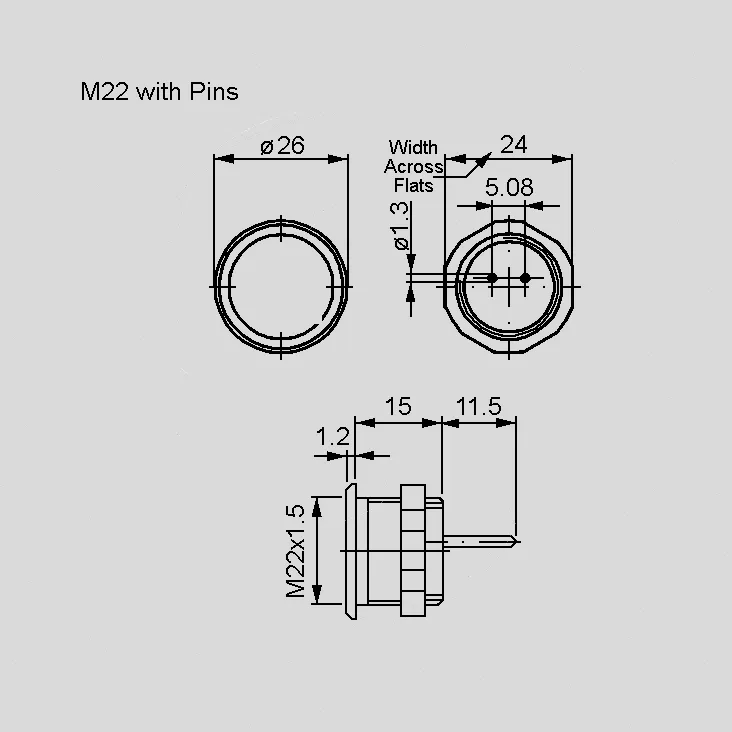

| 1241-3005 | M22 | Pins | Red | - |
| 1241-3006 | M22 | Pins | Green | - |
| 1241-3008 | M22 | Pins | Natural | - |
| 1241-3020-M | M22 | Connector | Natural | Point Red |
| 1241-3258 | M22 | Wire | Natural | Ring Red/Green |
| 1241-3010 | M24 | Wire | Natural | Ring Red/Green |
| 1241-3011 | M27 | Wire | Natural | Ring Red/Green |
| 1241-3012 | M30 | Wire | Natural | Ring Red/Green |
| ||||
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
 |
| http://www.schurter.de |
|
