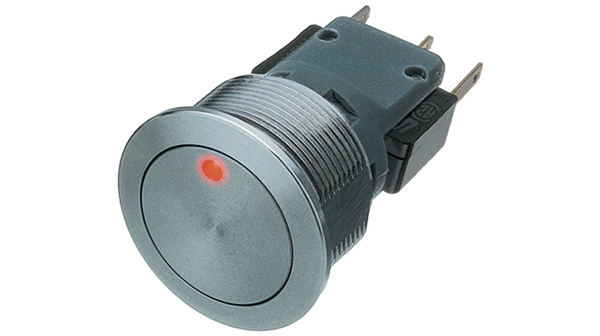

Metal Switch SPDT 250V 5A Red Point Momentan MSM22PI-2,0RT

Varenummer:
103-736
Varekode:
1241.6697.1121000
Vægt:
40 g
Lagerstatus:
Ikke på lager

kr 198,38 198.38 DKK kr 198,38 Inklusiv moms

kr 198,38 Inklusiv moms

Anmod os om en pris

v/5
Kr. 210,78
v/10
Kr. 185,97
v/100
Kr. 161,18

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/59492/image_1920?unique=14ab7d4 https://elektroniklavpris.odoo.com/web/image/product.template/59492/image_1920?unique=14ab7d4



Features

• Quick assembly with no additional fastening
• Short mounting depth
• Reduced assembly costs
• For use in harsh environments
• High quality design
• Reliable tactile feedback of input
• Point illuminated or unilluminated
Technical Specifications

Shell Material:
 Stainless Steel
Operating Material:
 Stainless Steel
Material Contacts:
 Silver-plated
Switching Voltage, Max.:
 250V AC
Switching Voltage, Min.:
 5V DC
Switching Current, Max.:
 5A
Switching Capacity, Max.:
 1250W
Contact Resistance:
 30 mW
Bounce Time, Typ.:
 5ms
Operating Force:
 3,7N
Operating Path:
 0,8mm
Operating Life/Cycles
 200x103
Temperature Range:
 -25...+85°C
Protection Against Mechanical Strain
DIN EN 50102:
 IK07
Type of Protection:
 IP67

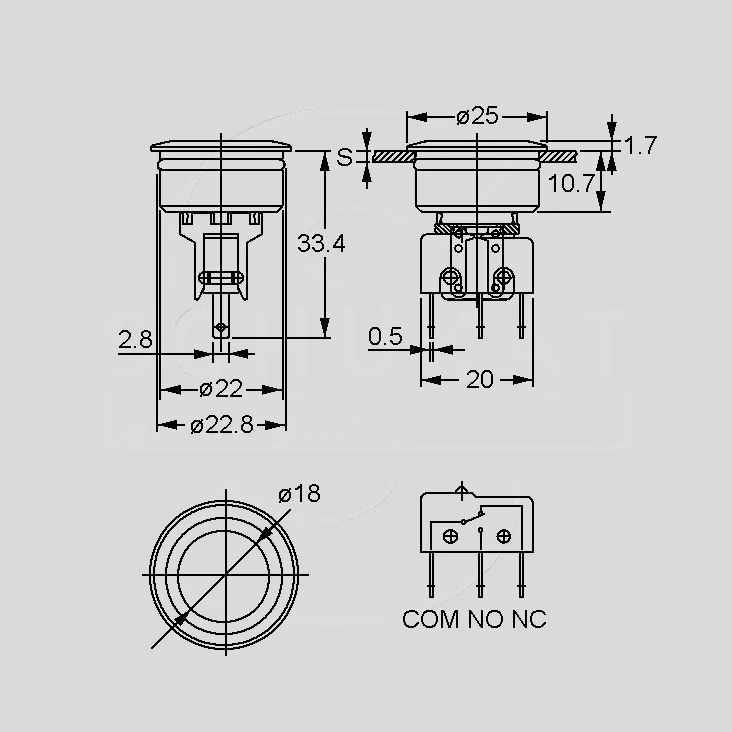

Dimensions

Part Nr.
 LED
 s
 D
 TDmax
 F
MSM22_
   [mm]
 [mm]
 [mm]
 [N]
ST-1,5 -
 1,5
 22,3
 0,15
 50...100
ST-2,0 -
 2,0
 22,3
 0,15
 50...100
PI-1,5RT Red
 1,5
 22,3
 0,15
 50...100
PI-1,5GN Green
 1,5
 22,3
 0,15
 50...100
PI-2,0RT Red
 2,0
 22,3
 0,15
 50...100
PI-2,0GN Green
 2,0
 22,3
 0,15
 50...100
s = Front Panel Thickness, D = Mounting Diameter, TDmax = Max. Drilling Tolerance (Drilling Edges Free of Burrs), F = Assembly Force


Manufacturer

http://www.schurter.de
