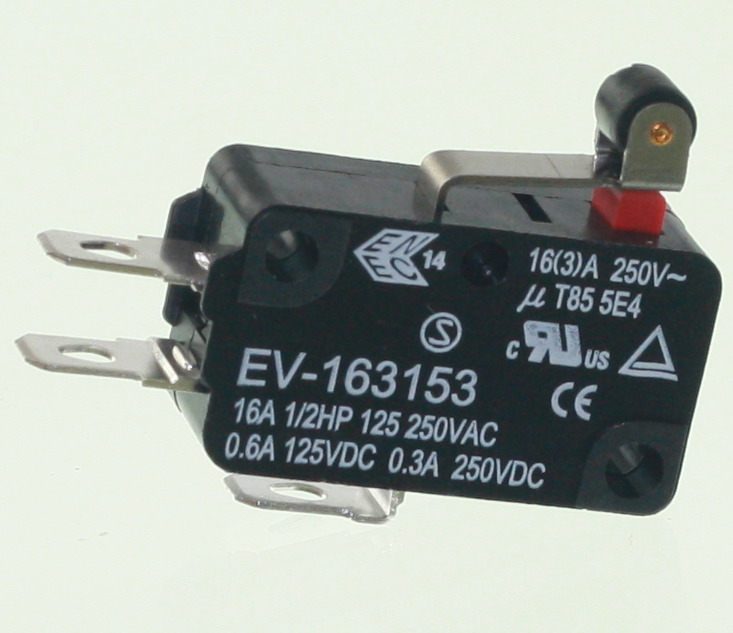

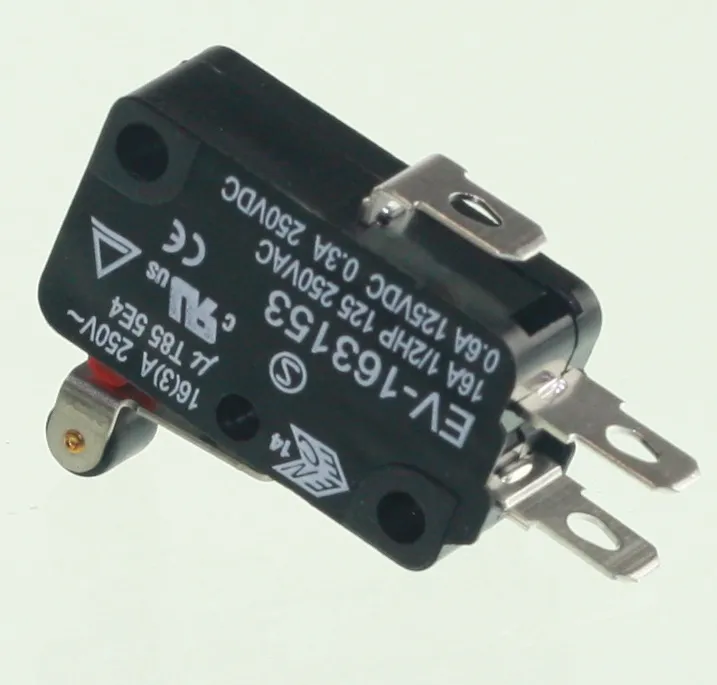

Microswitch Short Roller 250V 16A 400gf
Varenummer:
103-706
Varekode:
EV163153
Vægt:
10 g
Lagerstatus:
Ikke på lager
Gruppe:
E2721
ECE Micro Switches
Series: EV
ECE Micro Switches
Series: EV
| Features |
| • Various actuators • Long operating life due to high precision mechanism design • 4,8mm flat cable plug • 16A current |
 |
| Electrical Specifications |
| |
| Switching Capacity: | 16A, 250V AC/0,6A, 125V DC |
| Contact Resistance, Max.: | 50mW |
| Isolation Resistance (500V DC), Min.: | 100MW |
| Dielectric Strength, Min.: | 1000V AC |
| |
| Technical Specifications |
| |
| Operating Temperature: | -25...+80°C |
| Operating Force, Max.: | 3,92N |
| Operating Life | |
| mechanical: | 50x106 Switches |
| electrical: | 10x104 Switches |
| Air Humidity: | 85% RH |
| Vibration Test (10...55Hz): | 1,5mm Amplitude |
| |
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 10 pieces |
|
| Manufacturer |
| ECE http://www.ece.com.tw |
|
Stregkode:
103706
Intern reference:
103706
Varekode:
EV163153
