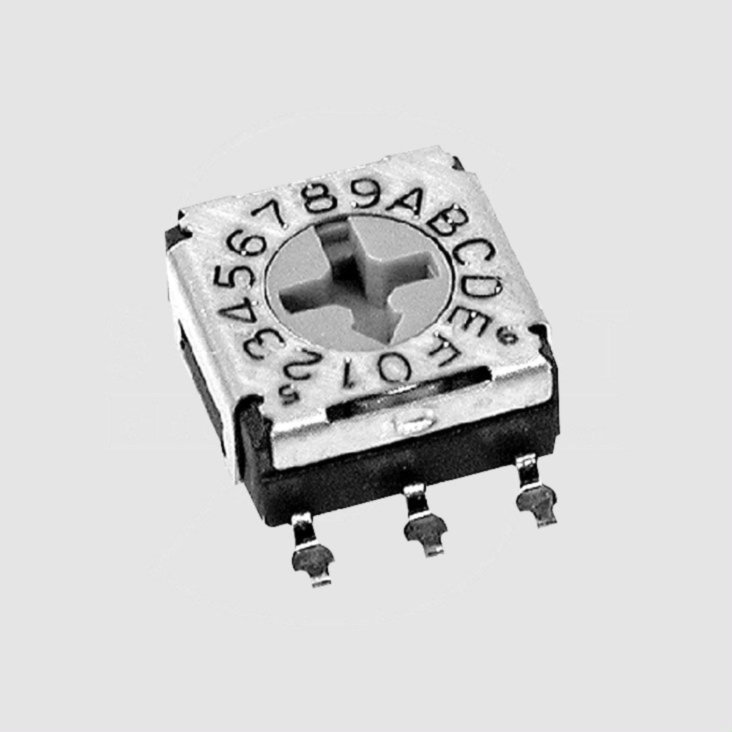

SMD Rotary Switch 16-Pole Hex Real

Varenummer:

103-701

Varekode:

ERD616RMZ-SMD

Vægt:

0 g

Lagerstatus:

Ikke på lager

v/5

Kr. 28,12

v/25

Kr. 22,50

v/100

Kr. 19,12

Denne kombination eksistere ikke.

Køb

Electrical Specifications



Switching Capacity, Max.:	100mA/50V DC
Switching Capacity, Min.:	10mA/5V DC
Contact Resistance, Max.:	200mW, 1,5mA, 200mV DC
Insulation Resistance (100V DC), Min.:	100MW
Dielectric Strength, Min.:	250V AC/1 Min.
Operations Under Rated Load:	1x10⁴/Min.

Technical Specifications



Insulation Material:	Glass Filled PBT
Contact Finish:	Cu Alloy, Gold Plating Over Nickel
Solder Pin:	Cu-Alloy, Tin Plating Over Nickel
Operating Temperature:	-25...+70°C
Storage Temperature:	-25...+85°C
Operating Force, Max.:	510gf/cm
Stand Time:	2x10⁴ Without Load
Vibration Test:	MIL-STD-202F, Method 204D

Manufacturer

ECE
http://www.ece.com.tw

Stregkode: 103701
Intern reference: 103701
Varekode: ERD616RMZ-SMD
