SMD DIP Switch IC 1-Pole Taped
Varenummer:
103-686
Varekode:
ESD101LDZ
Vægt:
0 g
Lagerstatus:
Ikke på lager
Features
| • Can be assembled by any automatic IC inserter • Low profile actuator • Top Tape sealed • Bottom epoxy sealed against flux immersion |
 |
| Electrical Specifications |
|
|
| Switching Capacity: | 25mA/24V DC |
| Transmission Current: | 100mA/50V DC |
| Contact Resistance, Max. | |
| New State: | 50mOhm |
| After Operating Life Test: | 100mOhm |
| Insulation Resistance (100V DC), Min.: | 1000MOhm |
| Dielectric Strength, Min.: | 500V DC/1 Min. |
| Capacity of Adjacent Switch, Max.: | 5pF |
|
|
| Technical Specifications |
|
|
| Insulation Shell: | UL94V-0, Black |
| Contact Finish: | Gold Over Nickel |
| Operating Temperature: | -25...+70°C |
| Storage Temperature: | -40...+85°C |
| Operating Force, Max.: | 800g |
| Switching Capacity: | 2000 Operations |
| Air Humidity: | 95% RH, 40°C/96h |
| Vibration Test: | MIL-STD-202F, Method 204D |
|
|

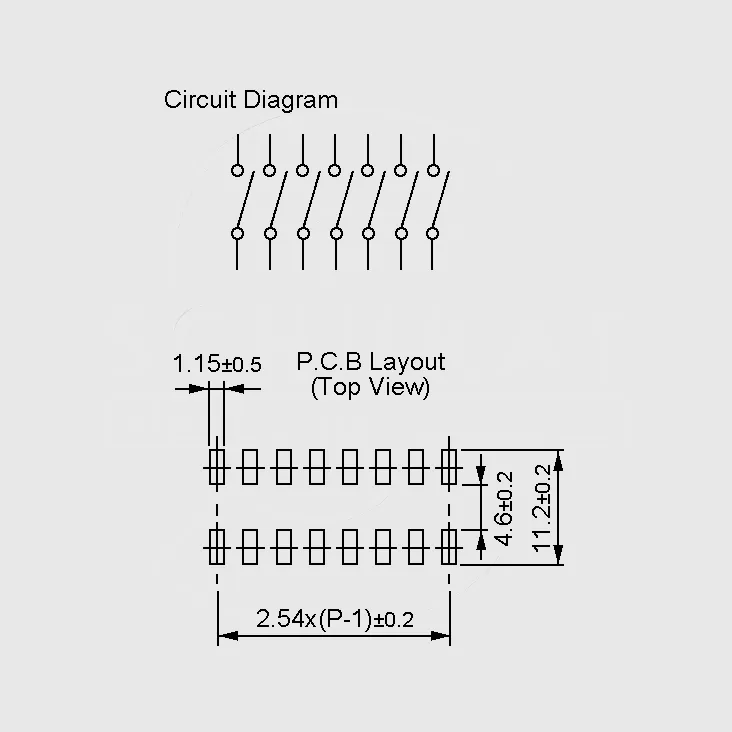

| Pitch |
|
|
| Pitch: | 2,54mm |
| Spacing Between Rows: | 11,2mm |
|
|
| Dimensions and Packing Units |
| Part Nr. | Switch | A | PKU |
| [mm] | [Single Unit/Reel] | ||
| ESD101LDZ | 1 | 2,50 | 2000 |
| ESD102LDZ | 2 | 5,04 | 1300 |
| ESD103LDZ | 3 | 7,58 | 1000 |
| ESD104LDZ | 4 | 10,12 | 1000 |
| ESD105LDZ | 5 | 12,66 | 1000 |
| ESD106LDZ | 6 | 15,20 | 1000 |
| ESD108LDZ | 8 | 20,28 | 1000 |
| ESD110LDZ | 10 | 25,36 | 1000 |
| ESD112LDZ | 12 | 30,43 | 1000 |
Stregkode:
103686
Intern reference:
103686
Varekode:
ESD101LDZ
