C-Oscillator 16MHz DIL8Met CMOS/TTL
Varenummer:
103-323
Varekode:
COH16M
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
D9326
ABUNDANCE Crystal Oscillators
Series: COH
In Metal Housing, CMOS/TTL
Frequency: 2,5476...40MHz

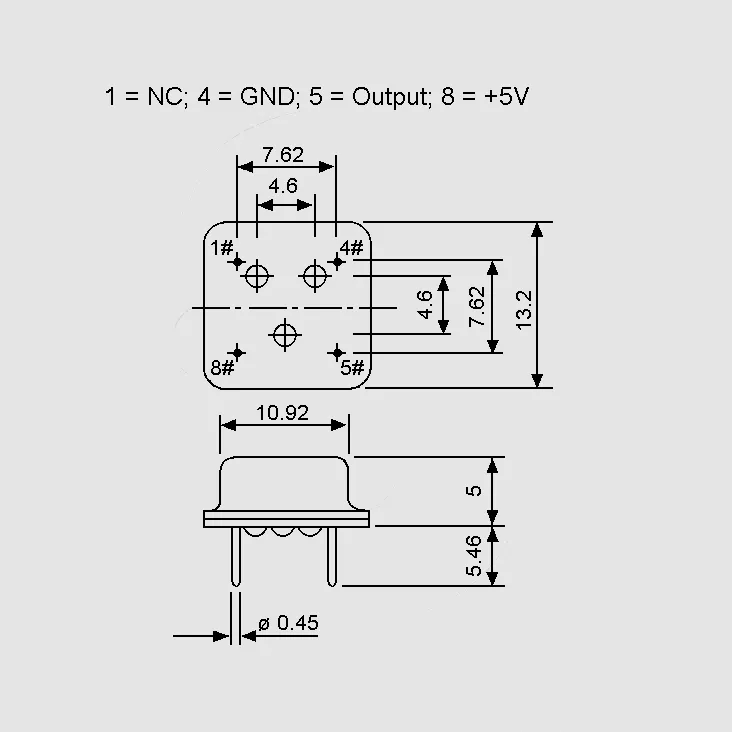

Housing: DIP/DIL8
ABUNDANCE Crystal Oscillators
Series: COH
In Metal Housing, CMOS/TTL
Frequency: 2,5476...40MHz
Housing: DIP/DIL8
| Features |
| • Suitable for CMOS and TTL • Consisting of piezoelectric resonator and oscillator circuit • High reliability due to hermetically sealed metal housing |
 |
| Technical Specifications |
| |
| Frequency Range: | 2,24576MHz...40MHz |
| Frequency Tolerance: | ±100ppm |
| Operating Temperature: | -20...+70°C |
| Storage Temperature: | -55...+125°C |
| Operating Voltage (VDD): | 5V DC |
| Current Requirement, Max. | |
| 1,843...21,9MHz: | 15mA |
| 22...49,9MHz: | 30mA |
| Symmetry at 50% VDDtight: | 45...55% |
| Rise Time/Fall Time | |
| 1,843...20MHz: | 10ns |
| 24...64MHz: | 6ns |
| Output Voltage, Max. | |
| "1"-Level: | +4,5V(90% VDD) |
| "0"-Level: | +0,5V(10% VDD) |
| Output Load: | 15pF Typ. or 1...10 TTL Max. |
| |
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 5 pieces |
|
| Manufacturer |
| Abundance http://www.aeccrystal.com |
|
