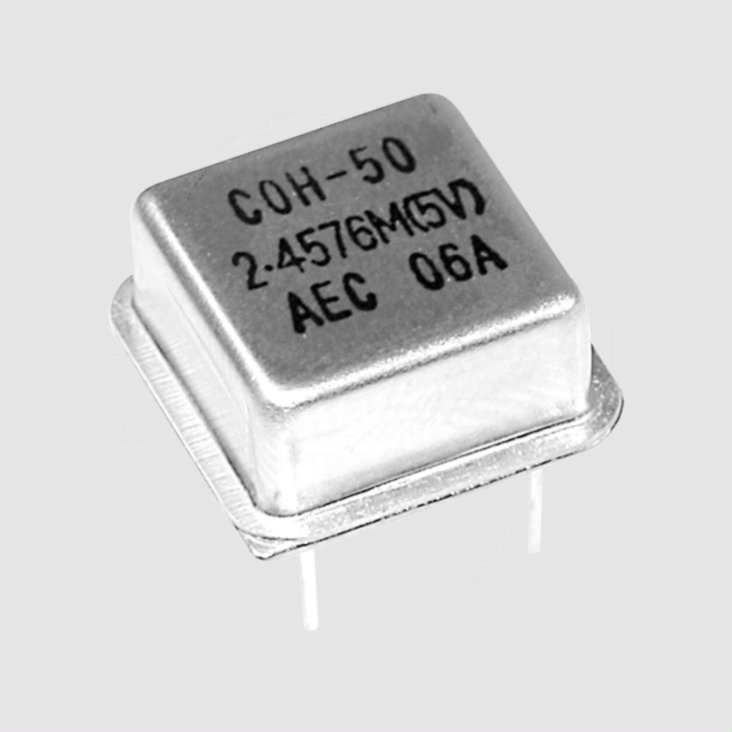

C-Oscillator 2,4576MHz DIL8Met CMOS/TTL

Varenummer:
103-320
Varekode:
COH2,4576M
Vægt:
0 g
Lagerstatus:
Ikke på lager

kr 21,00 21.0 DKK kr 21,00 Inklusiv moms

kr 21,00 Inklusiv moms

Anmod os om en pris

v/10
Kr. 19,69
v/25
Kr. 16,41
v/100
Kr. 13,12

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/59076/image_1920?unique=37fea8b https://elektroniklavpris.odoo.com/web/image/product.template/59076/image_1920?unique=37fea8b
Features
• Suitable for CMOS and TTL
• Consisting of piezoelectric resonator and oscillator circuit
• High reliability due to hermetically sealed metal housing
Technical Specifications
Frequency Range:
 2,24576MHz...40MHz
Frequency Tolerance:
 ±100ppm
Operating Temperature:
 -20...+70°C
Storage Temperature:
 -55...+125°C
Operating Voltage (VDD):
 5V DC
Current Requirement, Max.
1,843...21,9MHz:
 15mA
22...49,9MHz:
 30mA
Symmetry at 50% VDDtight:
 45...55%
Rise Time/Fall Time
1,843...20MHz:
 10ns
24...64MHz:
 6ns
Output Voltage, Max.
"1"-Level:
 +4,5V(90% VDD)
"0"-Level:
 +0,5V(10% VDD)
Output Load:
 15pF Typ. or 1...10 TTL Max.
Manufacturer
Abundance
http://www.aeccrystal.com
Kontakt os

Stregkode: 103320
Intern reference: 103320
Varekode: COH2,4576M
