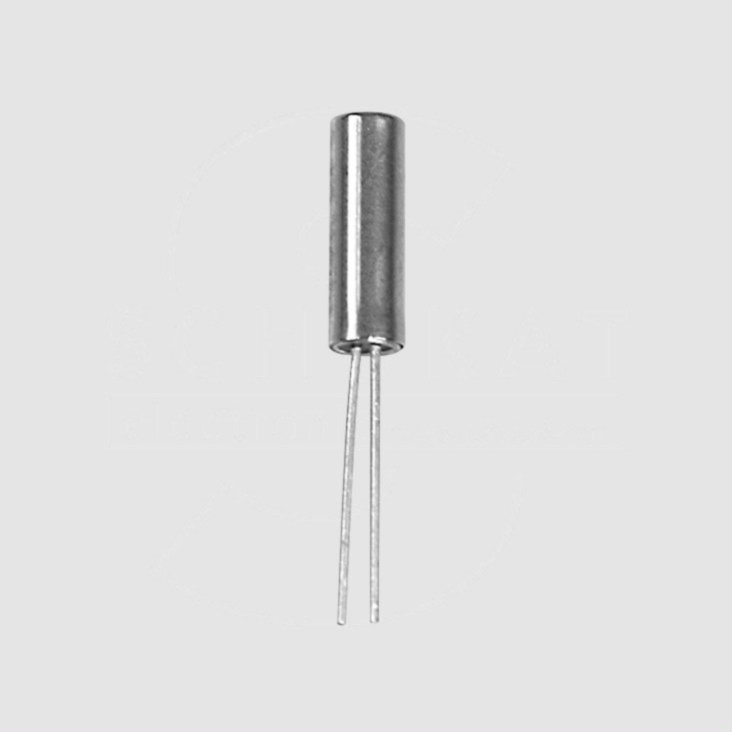

Clock Crystal 32,768kHz 3x8mm 10ppm
Varenummer:
103-318
Varekode:
DT38K32,768
Vægt:
0 g
Lagerstatus:
Lager: 17 stk.
| Technical Specifications |
 |
|
| Frequency: | 32.768KHz |
| Frequency Tolerance (TU = 25°C) | |
| DT26K32,768: | ±15ppm |
| DT38K32,768: | ±10ppm |
| Operating Temperature: | -10...+60°C |
| Storage Temperature: | -20...+70°C |
| Insulation Resistance, Min.: | 500MW |
| Drive Level, Max.: | 1,0μW |
| Shunt Capacitance, Max. | 1,3pF±0,3pF |
| Load Capacitance | |
| DT26K32,768: | 12,5pF |
| DT38K32,768: | 12,5pF |
|
|
| Manufacturer |
| Abundance http://www.aeccrystal.com |
Stregkode:
103318
Intern reference:
103318
Varekode:
DT38K32,768
