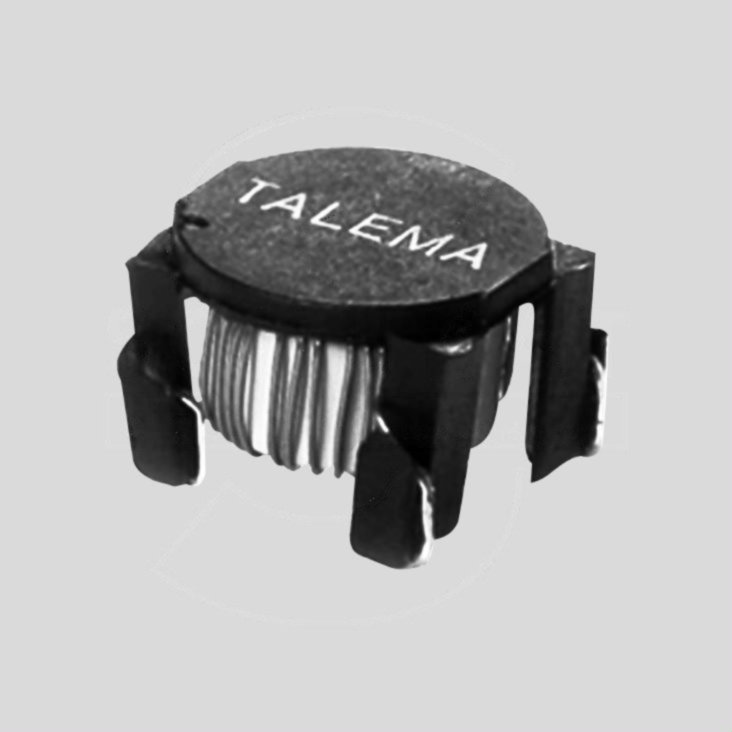

SMD Toroidal Inductor 680uH 0,54A

Varenummer:
103-101
Varekode:
LCP5U680
Vægt:
0 g
Lagerstatus:
Ikke på lager

kr 0,00 0.0 DKK kr 0,00 Inklusiv moms

kr 0,00 Inklusiv moms

Anmod os om en pris

v/10
Kr. 40,67
v/25
Kr. 32,54
v/100
Kr. 26,04

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/58857/image_1920?unique=a5cf409 https://elektroniklavpris.odoo.com/web/image/product.template/58857/image_1920?unique=a5cf409
Gruppe: D2332
TALEMA SMD Inductors
Series: LCP
Application
DC/DC converters, pulse modulation, switching regulators
Features
• Operating frequency up to 1MHz
• High stability
• Gold-plated terminal pads ensure excellent solderability
• Test voltage between windings 500Vrms
Technical Specifications

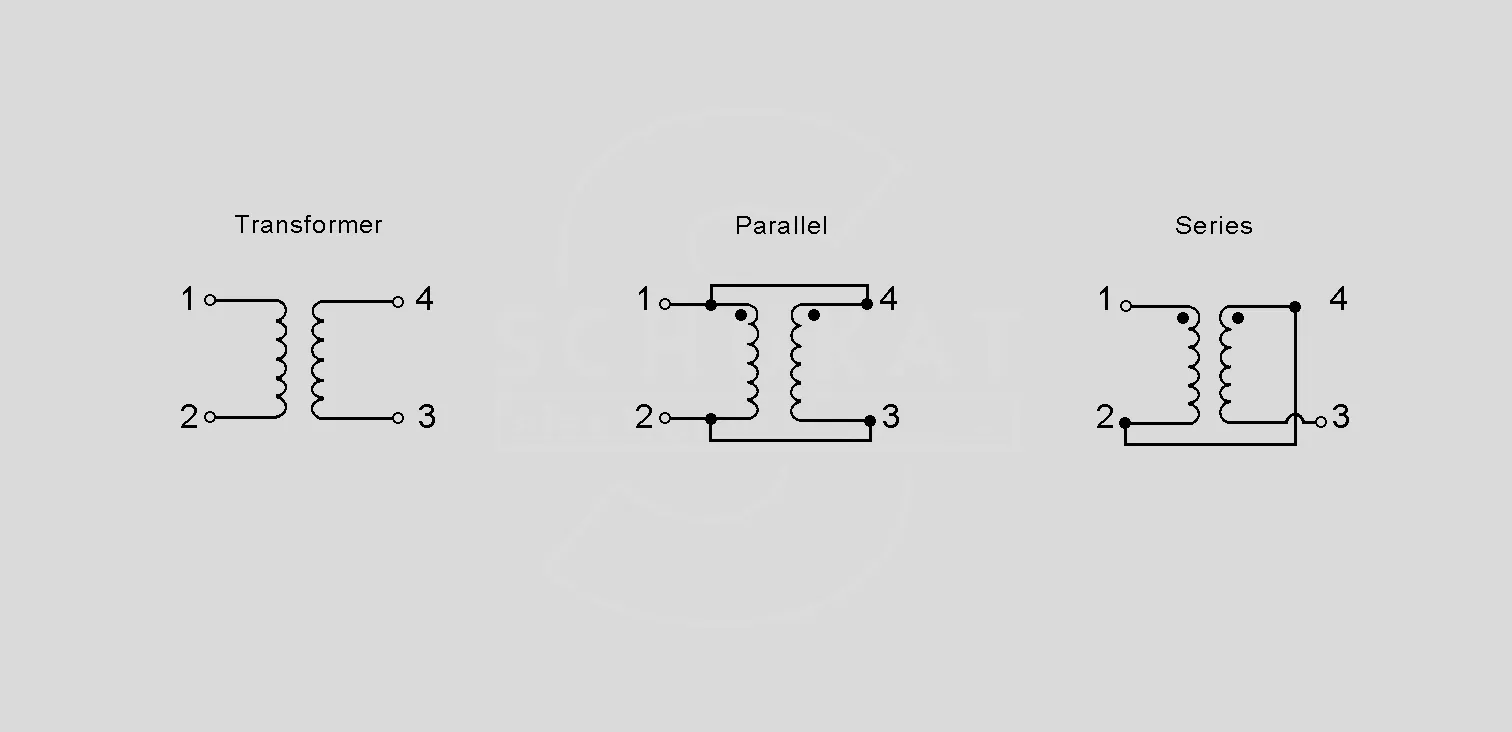

Part Nr.
Parallel
Parallel
Parallel
Series
Series
Series

 IN
L0
RDC
IN
L0
RDC
E
 [A]
[µH]
[mW]
[A]
[µH]
[mW]
[µJ]
LCP1U101,40
10
37
0,70
40
148
7,2
LCP1U330,76
33
133
0,38
132
535
7,2
LCP1U1000,44
100
376
0,22
400
1504
7,2
LCP2U471,08
47
139
0,54
188
556
21,2
LCP2U1000,66
100
295
0,33
400
1180
15,8
LCP2U2200,44
220
784
0,22
880
3136
15,8
LCP3U103,00
10
26
1,5
40
104
32,8
LCP3U1000,94
100
250
0,47
400
1000
32,2
LCP4U1500,88
150
307
0,44
600
1228
42,8
LCP4U4700,50
470
900
0,25
1880
3600
43,6
LCP5U223,00
22
38
1,5
88
152
71,6
LCP5U472,04
47
72
1,02
188
288
72,1
LCP5U1001,4
100
128
0,70
400
512
71,6
LCP5U2200,94
220
298
0,47
880
1192
71,5
LCP5U3300,78
330
451
0,39
1320
1804
73,8
LCP5U4700,64
470
604
0,32
1880
2416
70,9
LCP5U6800,54
680
934
0,27
2720
3736
73,2
LCP5U10000,44
1000
1629
0,22
4000
6516
71,4
IN = Rated Current, L0 = Inductance, No Load ± 15%, RDC = Ohmic Resistance, E = Energy Storage

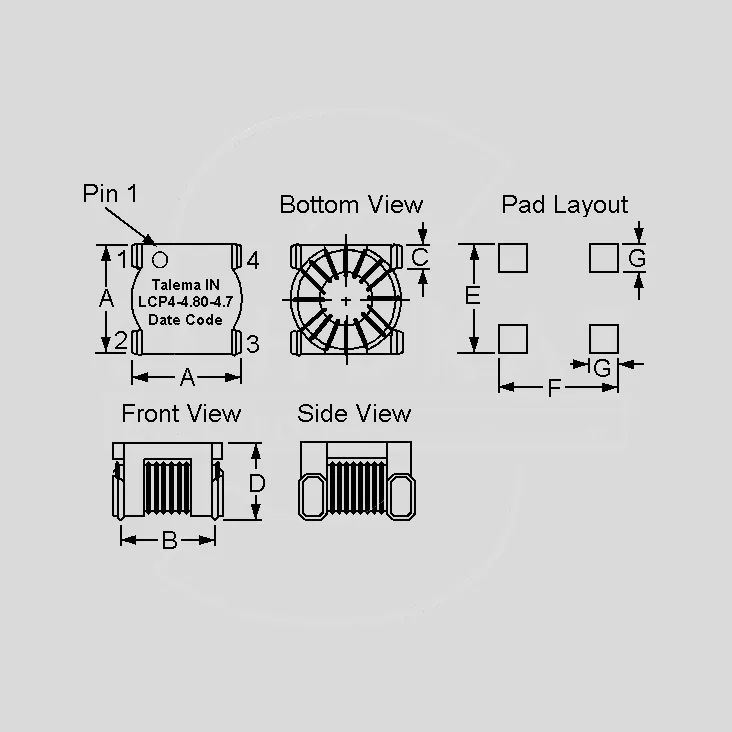

Dimensions
Part Nr.
A
B
C
D
E
F
G
 [mm]
[mm]
[mm]
[mm]
[mm]
[mm]
[mm]
LCP17
6,0
1,5
5,1
8
7
2,5
LCP29
7,6
1,7
6,3
10
9
3,0
LCP311
9,4
2,0
6,8
12
11
3,0
LCP412
10,2
2,2
7,0
13
12
3,5
LCP512
10,2
2,2
9,1
13
12
3,5
Additional Products
Orders of 500 pieces on request, delivery time approx. 12 weeks.
Terms of Delivery
Minimum order quantity: 1 PKU = 10 pieces
Manufacturer

http://www.talema.de
