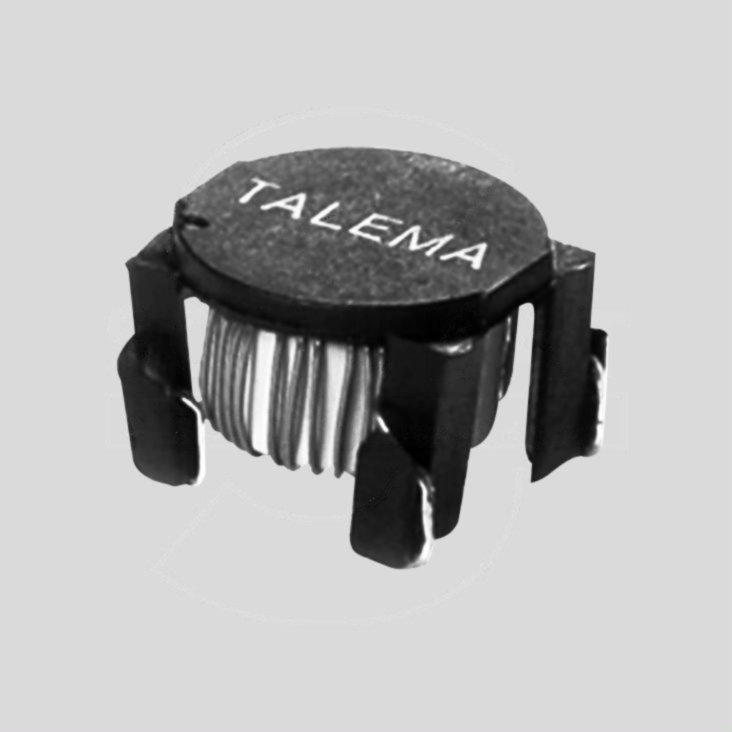

DC/DC converters, pulse modulation, switching regulators
|
 |
• Operating frequency up to 1MHz
• High stability
• Gold-plated terminal pads ensure excellent solderability
• Test voltage between windings 500Vrms
|
|
|
|
|
|
|
|
|
|
Part Nr.
|

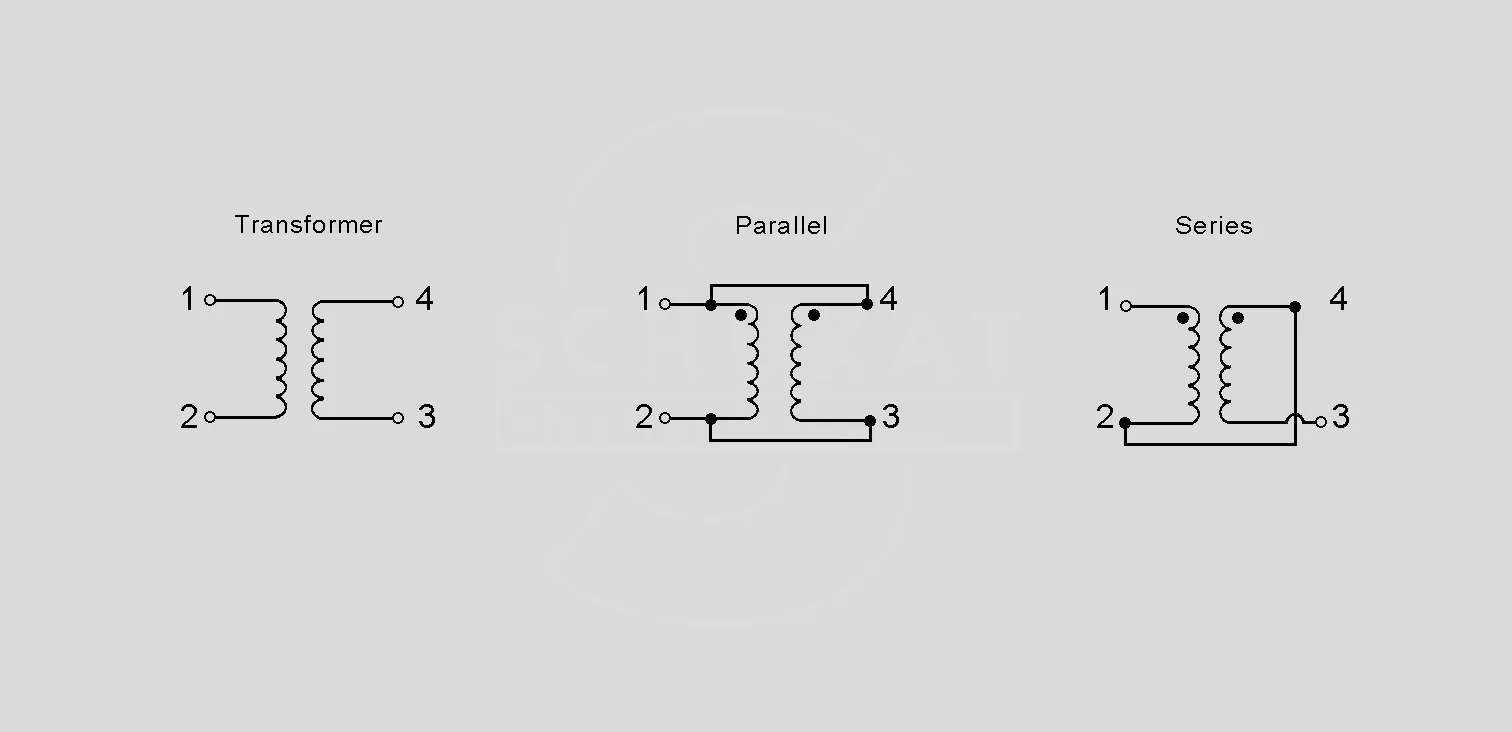

Parallel
|
Parallel
|
Parallel
|
Series
|
Series
|
Series
|
|
| |
IN
|
L0
|
RDC
|
IN
|
L0
|
RDC
|
E
|
| |
[A]
|
[μH]
|
[mW]
|
[A]
|
[μH]
|
[mW]
|
[μJ]
|
| LCP1U10 |
1,40
|
10
|
37
|
0,70
|
40
|
148
|
7,2
|
| LCP1U33 |
0,76
|
33
|
133
|
0,38
|
132
|
535
|
7,2
|
| LCP1U100 |
0,44
|
100
|
376
|
0,22
|
400
|
1504
|
7,2
|
| LCP2U47 |
1,08
|
47
|
139
|
0,54
|
188
|
556
|
21,2
|
| LCP2U100 |
0,66
|
100
|
295
|
0,33
|
400
|
1180
|
15,8
|
| LCP2U220 |
0,44
|
220
|
784
|
0,22
|
880
|
3136
|
15,8
|
| LCP3U10 |
3,00
|
10
|
26
|
1,5
|
40
|
104
|
32,8
|
| LCP3U100 |
0,94
|
100
|
250
|
0,47
|
400
|
1000
|
32,2
|
| LCP3U470 |
0,42
|
470
|
1003
|
0,21
|
1880
|
4012
|
30,5
|
| LCP4U150 |
0,88
|
150
|
307
|
0,44
|
600
|
1228
|
42,8
|
| LCP4U470 |
0,50
|
470
|
900
|
0,25
|
1880
|
3600
|
43,6
|
| LCP5U22 |
3,00
|
22
|
38
|
1,5
|
88
|
152
|
71,6
|
| LCP5U47 |
2,04
|
47
|
72
|
1,02
|
188
|
288
|
72,1
|
| LCP5U100 |
1,4
|
100
|
128
|
0,70
|
400
|
512
|
71,6
|
| LCP5U220 |
0,94
|
220
|
298
|
0,47
|
880
|
1192
|
71,5
|
| LCP5U330 |
0,78
|
330
|
451
|
0,39
|
1320
|
1804
|
73,8
|
| LCP5U470 |
0,64
|
470
|
604
|
0,32
|
1880
|
2416
|
70,9
|
| LCP5U680 |
0,54
|
680
|
934
|
0,27
|
2720
|
3736
|
73,2
|
| LCP5U1000 |
0,44
|
1000
|
1629
|
0,22
|
4000
|
6516
|
71,4
|
IN = Rated Current, L0 = Inductance, No Load ± 15%, RDC = Ohmic Resistance, E = Energy Storage
|
|
|
|
|
|
|
|
|
|

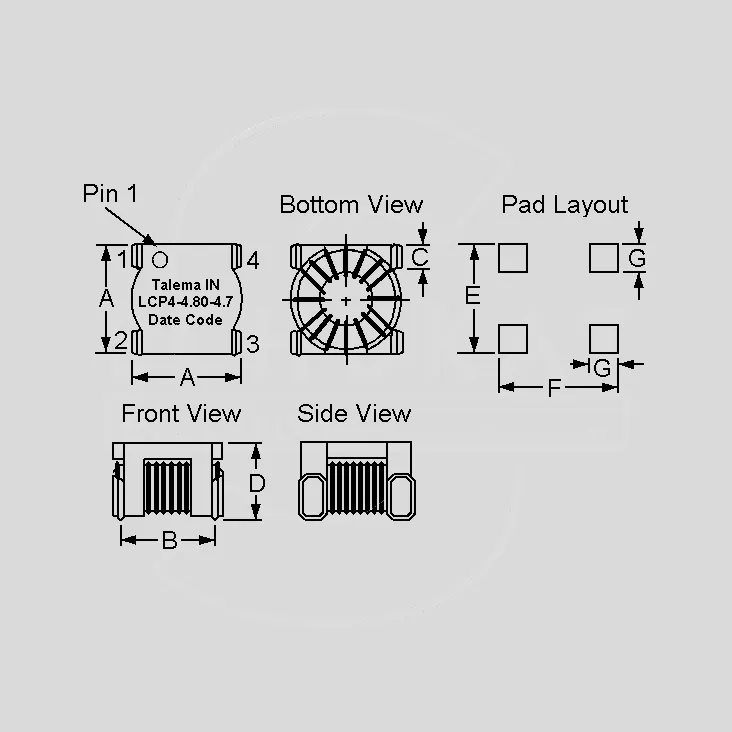

Part Nr.
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
| |
[mm]
|
[mm]
|
[mm]
|
[mm]
|
[mm]
|
[mm]
|
[mm]
|
| LCP1 |
7
|
6,0
|
1,5
|
5,1
|
8
|
7
|
2,5
|
| LCP2 |
9
|
7,6
|
1,7
|
6,3
|
10
|
9
|
3,0
|
| LCP3 |
11
|
9,4
|
2,0
|
6,8
|
12
|
11
|
3,0
|
| LCP4 |
12
|
10,2
|
2,2
|
7,0
|
13
|
12
|
3,5
|
| LCP5 |
12
|
10,2
|
2,2
|
9,1
|
13
|
12
|
3,5
|
|
| Additional Products |
Orders of 500 pieces on request, delivery time approx. 14 weeks.
|
|
|
