  6. El-Capacitor 47µF/450V-P10-22x25mm

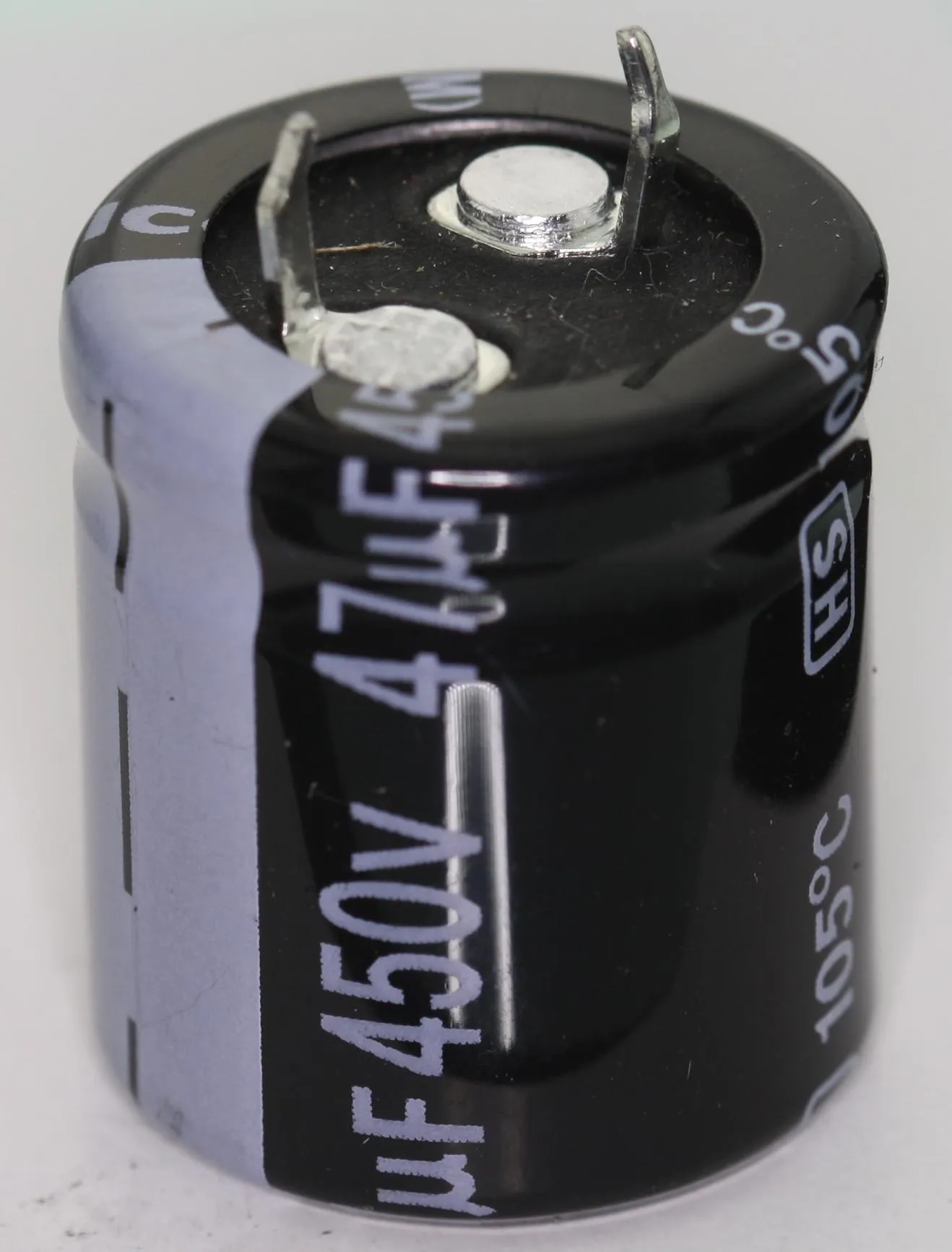

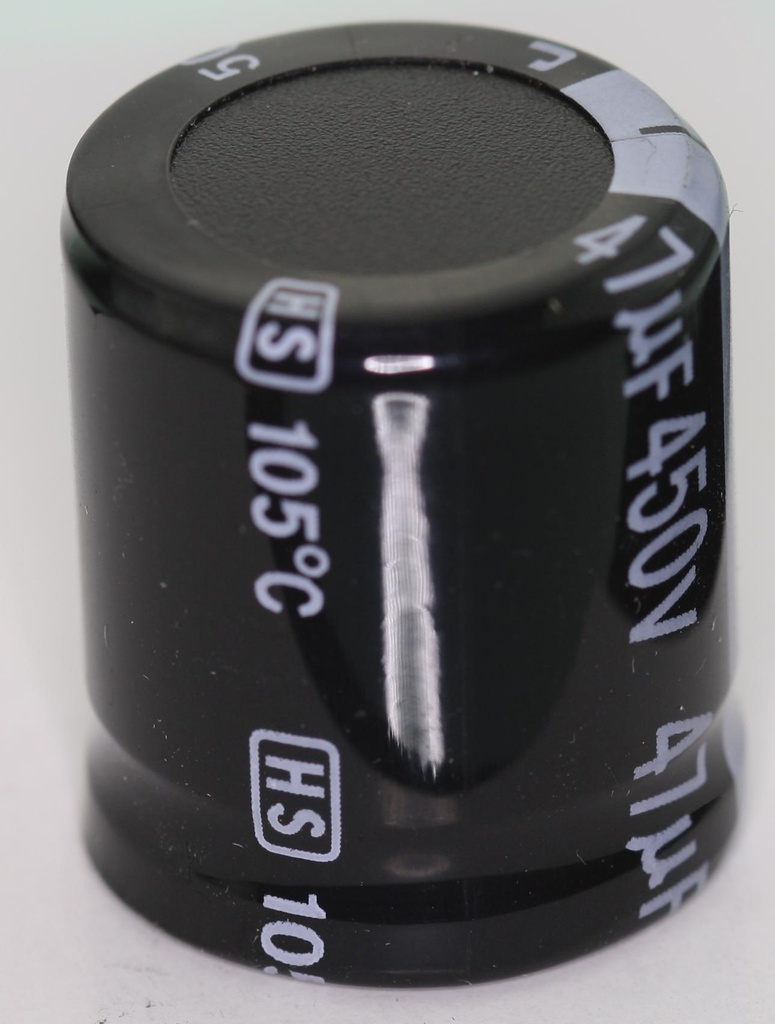

El-Capacitor 47µF/450V-P10-22x25mm

Varenummer:
102-950
Varekode:
CSHT0047/450-P10
Vægt:
10 g
Lagerstatus:
Ikke på lager

kr 22,75 22.75 DKK kr 22,75 Inklusiv moms

kr 22,75 Inklusiv moms

Anmod os om en pris

v/10
Kr. 21,31
v/25
Kr. 19,85
v/100
Kr. 17,16
v/1000
Kr. 11,44

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/58706/image_1920?unique=c26168f https://elektroniklavpris.odoo.com/web/image/product.template/58706/image_1920?unique=c26168f

Gruppe: C6471
JAMICON Electrolytic Capacitors
Series: HSW
Snap-In
Style: Bulk
Rated Voltage: 25...450V DC
Tolerance: 20%
Temperature Range: -40...+105°C

HSW0047/450

HSW470M2WN25M

Technical Specifications
    Operating Temperature Range: -40...+105°C Leakage Current (Peak Value after 5min.): IL£0,02xCxUN or 3mA
                Part Nr. C UN tand IR Z D L   [µF] [V=]   [A] [V/A] [mm] [mm] HSW0047/450 47 450 0,15 0,39 6 22 25 HSW0100/400 100 400 0,15 0,61 6 22 30 HSW0220/400 220 400 0,15 1,16 6 30 35 HSW0470/400 470 400 0,15 2,07 6 35 45 HSW1000/63 1000 63 0,30 0,91 3 22 25 HSW2200/50 2200 50 0,35 1,31 4 22 30 HSW4700/35 4700 35 0,40 1,65 6 22 35 HSW4700/50 4700 50 0,35 1,74 4 25 35 HSW4700/63 4700 63 0,30 1,84 3 30 35 HSW6800/35 6800 35 0,35 1,94 6 25 40 HSW10000/35 10000 35 0,40 2,03 6 30 35 HSW10000/50 10000 50 0,35 2,39 4 30 45 HSW15000/35 15000 35 0,40 2,92 6 35 40 HSW22000/25 22000 25 0,25 3,55 6 35 40
C = Capacitance, UN = DC Voltage Rating, tan d = Dissipation Factor (120Hz, 25°C), IR = Ripple Current (120Hz, 85°C), Z = Impedance Ratio (120Hz, -25...+25°C)
Terms of Delivery
Minimum order quantity: 1 PKU = 5 pieces
Manufacturer
http://www.jamicon.com.tw
