SMD Tantalum Capacitor 100uF 10V D

Varenummer:
102-929
Varekode:
TCS100U10D
Vægt:
0 g
Lagerstatus:
Ikke på lager

kr 0,00 0.0 DKK kr 0,00 Inklusiv moms

kr 0,00 Inklusiv moms

Anmod os om en pris

v/10
Kr. 12,19
v/25
Kr. 8,54
v/100
Kr. 3,66
v/1000
Kr. 2,20

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/58685/image_1920?unique=a5cf409 https://elektroniklavpris.odoo.com/web/image/product.template/58685/image_1920?unique=a5cf409
Gruppe: C6151
SAMSUNG SMD Tantalum Capacitors
Series: SVN, SVS
Rated Voltage: 6,3...35V DC
Tolerance: 10%
Housing: A, B, C, D
Features
• 4 chip sizes
• For all general soldering procedures withstanding 260°C for 5s
Technical Specifications
Rated Voltage:
See Table
Capacitance Tolerance:
±10%
Temperature Range:
-55°C...+85°C1)
Leakage Current (Large Values Valid):
0,01xCNxUN or 0,5µA
Dissipation Factor Tan d
C£1,0µF:
4%
1,5 to 6,8µF:
8%
10 to 68µF:
8%
C³100µF:
10%
Part Nr.
C
UN
U125
RESR
Chip
Series
 [µF]
[V DC]
[V DC]
[W]
Size

0.22U35A0,22
35
22
18
A
SVN
0.33U35A0,33
35
22
15
A
SVN
0.47U35A0,47
35
22
12
A
SVS
0.47U35B0,47
35
22
8
B
SVN
0.68U35A0,68
35
22
10
A
SVS
001U16A1
16
10
10
A
SVN
001U35A1
35
22
7,5
A
SVS
001U35B1
35
22
5
B
SVN
001.5U25A1,5
25
25
8
A
SVS
002.2U16A2,2
16
10
6
A
SVS
002.2U35B2,2
35
22
4,2
B
SVS
003.3U16A3,3
16
10
6
A
SVS
003.3U35C3,3
35
22
2,5
C
SVN
004.7U10A4,7
10
6,3
6
A
SVS
004.7U16A4,7
16
10
4
A
SVS
004.7U20B4,7
20
13
3,5
B
SVS
004.7U35C4,7
35
22
2,5
C
SVS
006.8U10A6,8
10
6,3
6
A
SVS
006.8U16B6,8
16
10
3,5
B
SVS
010U10A10
10
6,3
2
A
SVS
010U16B10
16
10
3,5
B
SVS
010U25C10
25
25
1,5
C
SVS
010U35D10
35
22
1
D
SVS
022U6.3B22
6,3
4
3,5
B
SVS
022U6.3A22
6,3
4
2
A
SVS
022U10B22
10
6,3
3
B
SVS
022U16C22
16
10
1,6
C
SVS
022U25D22
25
25
0,8
D
SVS
022U35D22
35
22
0,9
D
SVS
033U6.3B33
6,3
4
3
B
SVS
033U16C33
16
10
1,5
C
SVS
033U20D33
20
13
0,8
D
SVS
047U6.3B47
6,3
4
1,3
B
SVS
047U16D47
16
10
0,8
D
SVS
068U10D68
10
6,3
0,8
D
SVS
100U10D100
10
6,3
0,7
D
SVS
100U16D100
16
10
0,8
D
SVS
C = Capacitance, UN = Rated Current DC up to 85°C, U125 = Decreased Rated Voltage DC at Operating Temperature up to 125°C, RESR = Equivalent Series Resistance (100kHz)
Dimensions
Chip
L
W1
W2
H
Z
 [mm]
[mm]
[mm]
[mm]
[mm]
A3,2±0,2
1,6±0,2
1,2±0,1
1,6±0,2
0,8±0,3
B3,5±0,2
2,8±0,2
2,2±0,1
1,9±0,2
0,8±0,3
C6,0±0,3
3,2±0,3
2,2±0,1
2,5±0,3
1,3±0,3
D7,3±0,3
4,3±0,3
2,4±0,1
2,8±0,3
1,3±0,3
Labelling
Polarity bar (+), operating voltage, capacitance
Terms of Delivery
Minimum order quantity: 1 PKU = 100 pieces

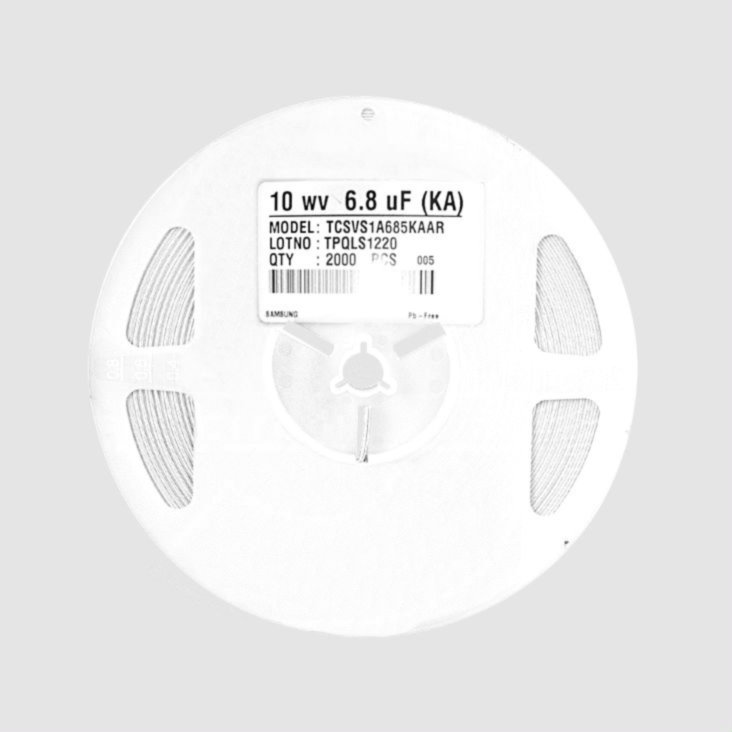

Form of delivery: orders with complete reel: chip size A, B: 2000 pieces on reel, chip size C, D: 500 pieces on reel; for smaller quantities 100 pieces on tape segment à 100 pieces without leader tape and reel.
Manufacturer
Samsung
http://www.sem.samsung.com
