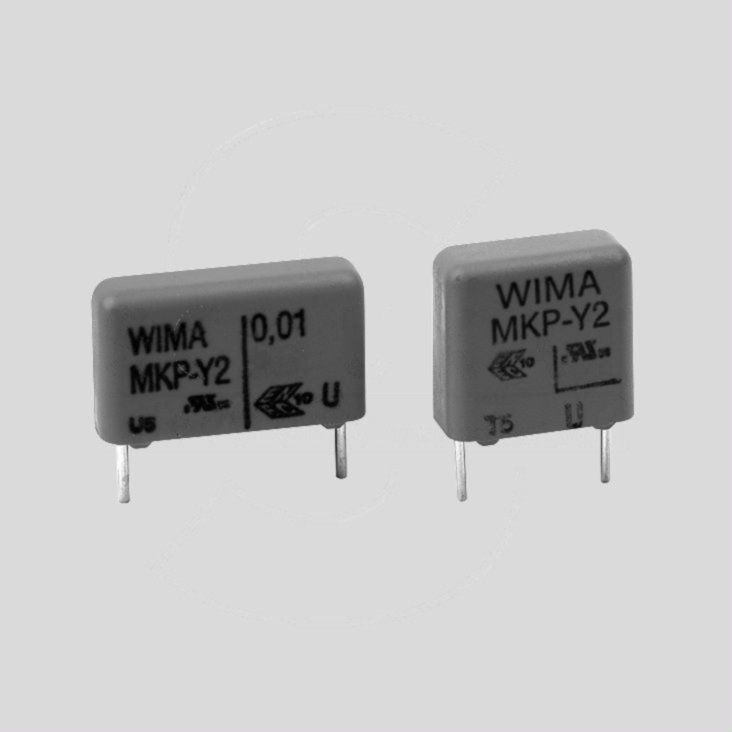

MKP Capacitor Y2 15nF 300V P15
Varenummer:
102-851
Varekode:
MKPY2N015K300-15
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
C5832
WIMA MKP Metallized Film Capacitors
Series: MKP-Y2
Wound Technology, Class Y2
Style: Bulk
Rated Voltage: 300V AC
Tolerance: 10%
Pitch: 10/15mm
C5832
WIMA MKP Metallized Film Capacitors
Series: MKP-Y2
Wound Technology, Class Y2
Style: Bulk
Rated Voltage: 300V AC
Tolerance: 10%
Pitch: 10/15mm
| Features |
| • Reliable self-healing • Dielectric: polypropylene (PP) film • Capacitor electrodes: Vacuum-deposited plastic film • Terminations: Tinned wire • Encapsulation: solvent-resistant, flame-retardent plastic case with epoxy resin seal, UL94V-0 • High degree of interference suppression due to good attenuation and low ESR |
 |
| Typical Applications |
| • Class Y2 RFI applications to meet EMC regulations • Capacitors connected to the mains between phase or neutral and earthed casing • By-passing of the basic or supplementary insulation, pulse peak voltage £5kV • According to UL also approved for X1 applications |
|
| Technical Specifications |
| |
| Rated Voltages (UN): | 300V AC |
| Capacitance Tolerances: | ±10% |
| Operating Temperature Range: | -55...+105°C |
| Climatic Test Category IEC: | 55/105/56/C |
| Insulation Resistance: | ³15000MW |
| Failure Rate, Max. (40°C, 0,5 x UN): | 2,0 fit1) |
| Pulse Rise Time, Max. (100V/µs): | 425Vss |
| 1) 1fit = 1x10-9 Failure Components/Hour | |
| |

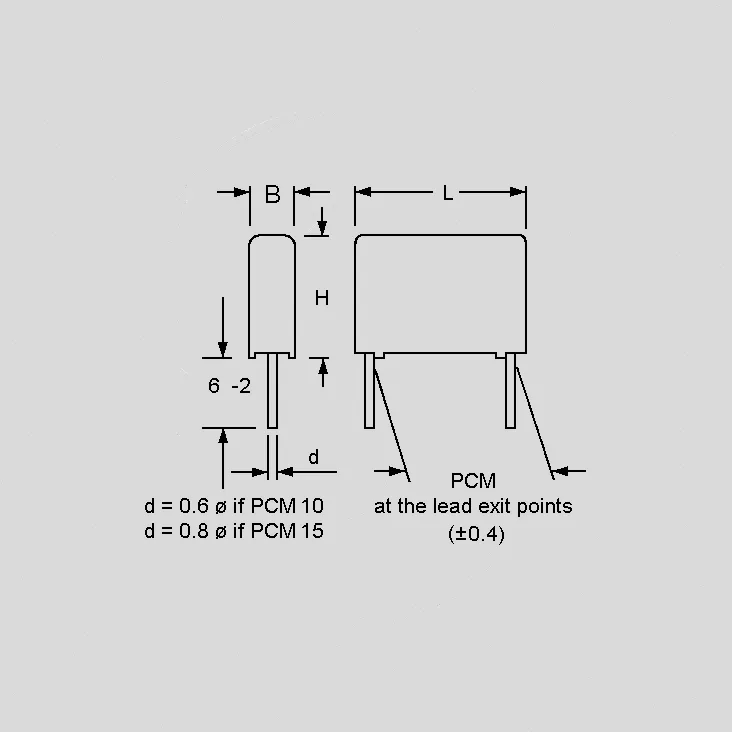

| Part Nr. | CN | B | H | L | P |
| MKPY2_ | [nF] | [mm] | [mm] | [mm] | [mm] |
| N1.0K300-10 | 1,0 | 4 | 9,5 | 13 | 10 |
| N1.5K300-10 | 1,5 | 4 | 9,5 | 13 | 10 |
| N2.2K300-10 | 2,2 | 4 | 9,5 | 13 | 10 |
| N3.3K300-10 | 3,3 | 5 | 11 | 13 | 10 |
| N4.7K300-10 | 4,7 | 5 | 11 | 13 | 10 |
| N6.8K300-10 | 6,8 | 6 | 12,5 | 13 | 10 |
| N010K300-15 | 10 | 5 | 11 | 18 | 15 |
| N015K300-15 | 15 | 6 | 12,5 | 18 | 15 |
| N022K300-15 | 22 | 7 | 14 | 18 | 15 |
| CN = Rated Capacitance | |||||
| |||||
| Dissipation Factor Tand (20°C) |
| |||
| CN | Measured at | ||
| 1kHz | 100kHz | ||
| C£0,022µF | £10x10-4 | £50x10-4 | |
| |||
| Labelling |
| Colour red, Marking: black |
|
| Approvals |
 10 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 50 pieces |
|
| Manufacturer |
 |
| http://www.wima.de |
|
