MKP Capacitor Y2 4,7nF 300V P10
Varenummer:
102-848
Varekode:
MKPY2N4,7K300-10
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe: C5832

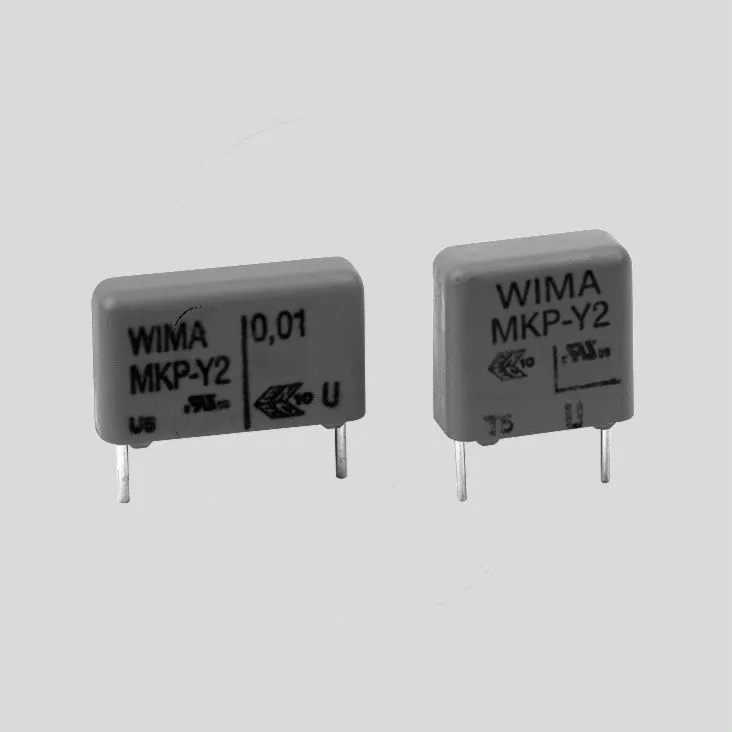

WIMA MKP Metallized Film Capacitors
Series: MKP-Y2
Wound Technology, Class Y2
Style: Bulk
Rated Voltage: 300V AC
Tolerance: 10%
Pitch: 10
| Features |
| • Reliable self-healing • Dielectric: polypropylene (PP) film • Capacitor electrodes: Vacuum-deposited plastic film • Terminations: Tinned wire • Encapsulation: solvent-resistant, flame-retardent plastic case with epoxy resin seal, UL94V-0 • High degree of interference suppression due to good attenuation and low ESR |
 |
| Typical Applications |
| • Class Y2 RFI applications to meet EMC regulations • Capacitors connected to the mains between phase or neutral and earthed casing • By-passing of the basic or supplementary insulation, pulse peak voltage £5kV • According to UL also approved for X1 applications |
|
| Technical Specifications |
|
|||||||||||||||
| Rated Voltages (UN): | 300V AC | Capacitance Tolerances: | ±10% | Operating Temperature Range: | -55...+105°C | Climatic Test Category IEC: | 55/105/56/C | Insulation Resistance: | ³15000MW | Failure Rate, Max. (40°C, 0,5 x UN): | 2,0 fit1) | Pulse Rise Time, Max. (100V/µs): | 425Vss | ||
| 1) 1fit = 1x10-9 Failure Components/Hour | |||||||||||||||
|
|||||||||||||||

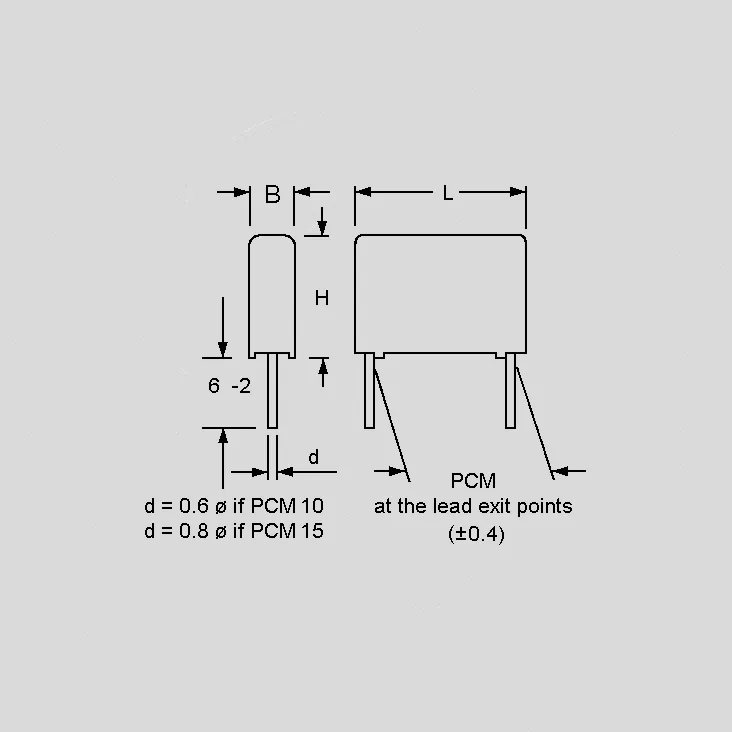

| Part Nr. | CN | B | H | L | P | MKPY2_ | [nF] | [mm] | [mm] | [mm] | [mm] | N1.0K300-10 | 1,0 | 4 | 9,5 | 13 | 10 | N1.5K300-10 | 1,5 | 4 | 9,5 | 13 | 10 | N2.2K300-10 | 2,2 | 4 | 9,5 | 13 | 10 | N3.3K300-10 | 3,3 | 5 | 11 | 13 | 10 | N4.7K300-10 | 4,7 | 5 | 11 | 13 | 10 | N6.8K300-10 | 6,8 | 6 | 12,5 | 13 | 10 | N010K300-15 | 10 | 5 | 11 | 18 | 15 | N015K300-15 | 15 | 6 | 12,5 | 18 | 15 | N022K300-15 | 22 | 7 | 14 | 18 | 15 | ||||||
| CN = Rated Capacitance | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dissipation Factor Tand (20°C) |
|
|||||||||||||||
| CN | Measured at | 1kHz | 100kHz | C£0,022µF | £10x10-4 | £50x10-4 | |||||||||
|
|||||||||||||||
| Labelling |
| Colour red, Marking: black |
|
| Approvals |
 10 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 50 pieces |
|
| Manufacturer |
 |
| http://www.wima.de |
|
Stregkode:
102848
Intern reference:
102848
Varekode:
MKPY2N4,7K300-10
