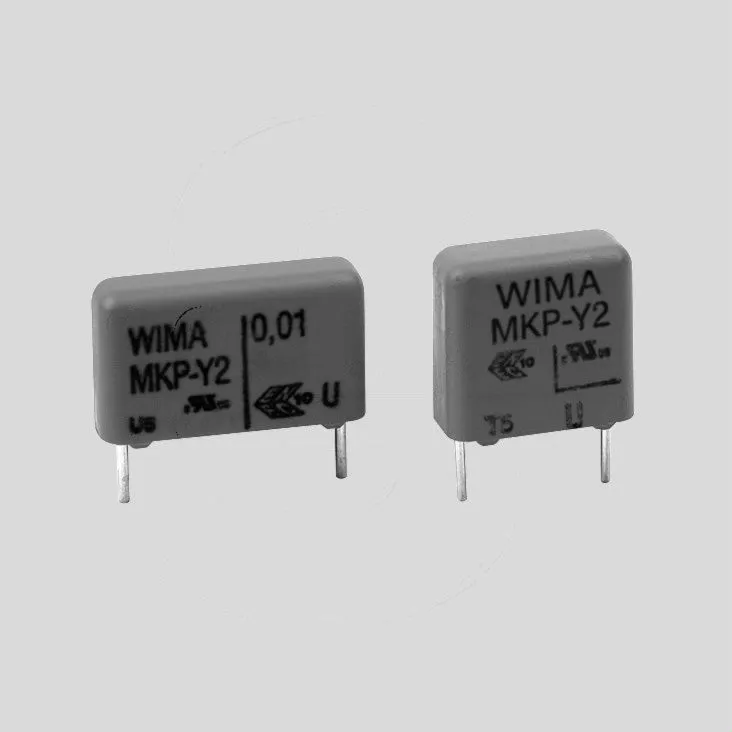

MKP Capacitor Y2 1,5nF 300V P10

Varenummer:
102-845
Varekode:
MKPY2N1,5K300-10
Vægt:
0 g
Lagerstatus:
Ikke på lager

kr 5,85 5.8500000000000005 DKK kr 5,85 Inklusiv moms

kr 5,85 Inklusiv moms

Anmod os om en pris

v/10
Kr. 5,12
v/25
Kr. 3,66
v/100
Kr. 2,20
v/1000
Kr. 1,46

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/58601/image_1920?unique=14ab7d4 https://elektroniklavpris.odoo.com/web/image/product.template/58601/image_1920?unique=14ab7d4



Features

• Reliable self-healing
• High degree of interference suppression due to good attenuation and low ESR
Typical Applications

• Class Y2 RFI applications to meet EMC regulations
• Capacitors connected to the mains between phase or neutral and earthed casing
• By-passing of the basic or supplementary insulation, pulse peak voltage �5kV
• According to UL also approved for X1 applications
Construction

• Dielectric: polypropylene (PP) film
• Capacitor electrodes: Vacuum-deposited plastic film
• Encapsulation: solvent-resistant, flame-retardent plastic case with epoxy resin seal, UL94V-0
• Terminations: Tinned wire
Technical Specifications

Rated Voltages (UN):
 300V AC
Capacitance Tolerances:
 ±10%
Operating Temperature Range:
 -55...+105°C
Climatic Test Category IEC:
 55/105/56/C
Insulation Resistance:
 ³15000MW
Failure Rate, Max. (40°C, 0,5 x UN):
 2,0 fit1)
Pulse Rise Time, Max. (100V/μs):
 425Vss
1) 1fit = 1x10 -9 Failure Components/Hour

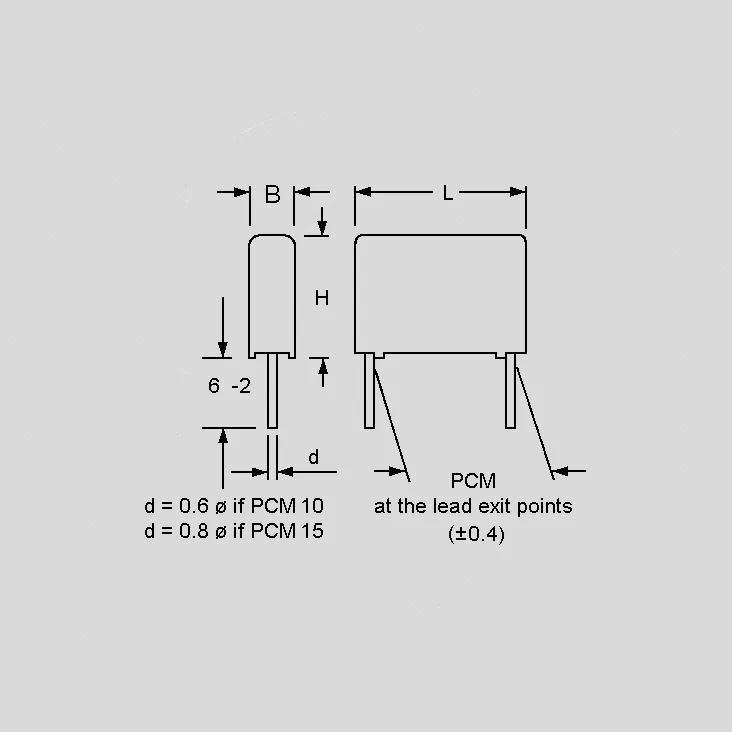

Part Nr.
 CN
 Ueff
 B
 H
 L
 P
MKPY2_
 [nF]
 [V~]
 [mm]
 [mm]
 [mm]
 [mm]
N1,0K300-10 1,0
 300
 4
 9,5
 13
 10
N1,5K300-10 1,5
 300
 4
 9,5
 13
 10
N2,2K300-10 2,2
 300
 4
 9,5
 13
 10
N3,3K300-10 3,3
 300
 5
 11
 13
 10
N4,7K300-10 4,7
 300
 5
 11
 13
 10
N6,8K300-10 6,8
 300
 6
 12,5
 13
 10
N010K300-15 10
 300
 5
 11
 18
 15
N015K300-15 15
 300
 6
 12,5
 18
 15
N022K300-15 22
 300
 7
 14
 18
 15
CN = Rated Capacitance, Ueff = RMS Voltage
Dissipation Factor Tand (20°C)

CN
 Measured at

  1kHz
 100kHz

C �10x10-4
 �50x10-4


Labelling
Colour red, Marking: black

Approvals
10

Manufacturer

http://www.wima.de
