MP Capacitor 10nF 275V P15
Varenummer:
102-837
Varekode:
MP3X2N010M275-15
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
C5815

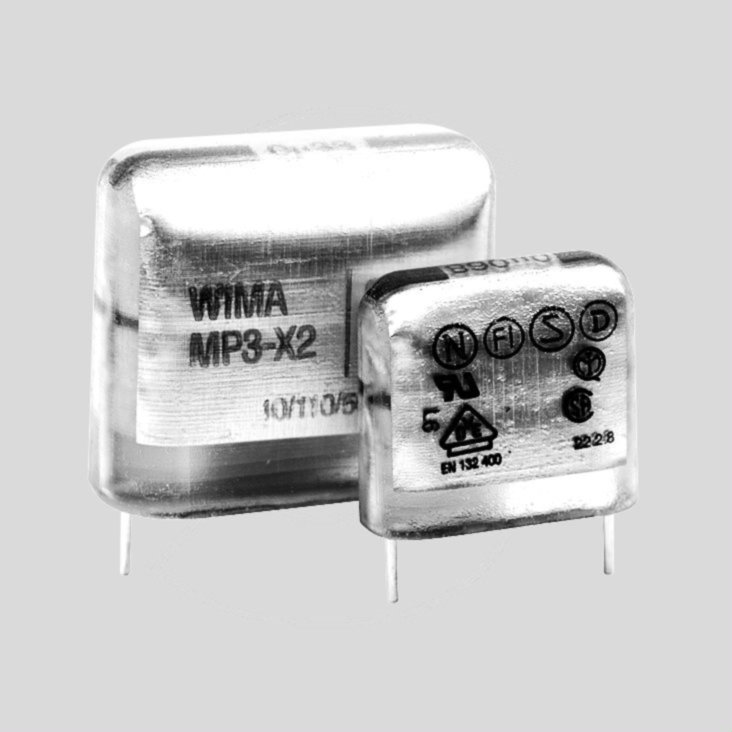

WIMA MP Metallized Film Capacitors
Series: MP3-X2
Wound Technology, Class X2
Style: Bulk
Rated Voltage: 275V AC
Tolerance: 20%
Pitch: 15...27,5mm
WIMA MP Metallized Film Capacitors
Series: MP3-X2
Wound Technology, Class X2
Style: Bulk
Rated Voltage: 275V AC
Tolerance: 20%
Pitch: 15...27,5mm
| Features |
| • Dielectric: paper, epoxy resin impregnated • Capacitor electrodes: Vacuum-deposited • Encapsulation: self-extinguishing epoxy resin, UL94V-0, metal foil • Terminations: tinned wire •Very high reliability against active and passive flammability • Excellent self-healing as well as high voltage strength • High degree of interference suppression due to good attenuation and low ESR • For temperatures up to +110° C |
 |
| Typical Applications |
| • Class X2 RFI applications to meet EMC regulations • Capacitors connected to the mains between phase and neutral or phase conductors • Installation category II in accordance with IEC 60664, pulse peak voltage £2.5 kV |
|
| Technical Specifications |
| |
| Rated Voltages (UN): | 275V AC |
| Capacitance Tolerances: | ±20% |
| Operating Temperature Range: | -40...+110°C |
| Climatic Test Category IEC: | 40/110/56/C |
| Insulation Resistance | |
| C£330nF: | ³12000MW |
| C>330nF: | ³4000s |
| Failure Rate, Max. (40°C, 0,5 x UN): | 1,0 fit1) |
| Pulse Rise Time, Max. (100V/µs): | see Table |
| Dissipation Factor Tand (20°C, 1kHz): | 13x10-3 |
| 1) 1fit = 1x10-9 Failure Components/Hour | |
| |

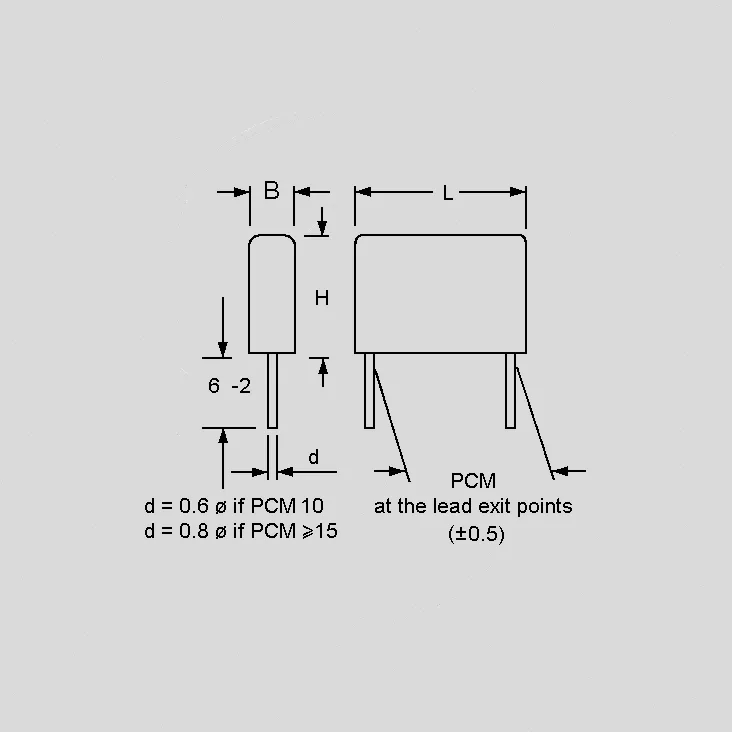

| Part Nr. | CN | B | H | L | P |
| MP3X2_ | [nF] | [mm] | [mm] | [mm] | [mm] |
| N010M275-15 | 10 | 5 | 13 | 19 | 15 |
| N033M275-15 | 33 | 6 | 14 | 19 | 15 |
| N047M275-15 | 47 | 7 | 15 | 19 | 15 |
| N100M275-15 | 100 | 10 | 18 | 19 | 15 |
| N220M275-22 | 220 | 10 | 22 | 28 | 22,5 |
| N330M275-22 | 330 | 12 | 24 | 28 | 22,5 |
| N470M275-27 | 470 | 13 | 25 | 33 | 27,5 |
| CN = Rated Capacitance | |||||
| |||||
| Pulse Rise Time |
| CN | F390V | |
| [V/µs] | ||
| 1000pF...1500pF | 1100 | |
| 2200pF...4700pF | 500 | |
| 6800pF...0,033µF | 200 | |
| 0,047µF...0,22µF | 100 | |
| F390V = Pulse Rise Time for 390V | ||
| ||
| Labelling |
| Marking: black over silver |
|
| Approvals |
   EN 132400 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 50 pieces > 220nF: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.wima.de |
|
