• Reliable self-healing
• High degree of interference suppression due to good attenuation and low ESR
|
 |
• Class X2 RFI applications to meet EMC regulations
• Capacitors connected to the mains between phase and neutral or phase conductors
• Installation category II in accordance with IEC 60664, pulse peak voltage �2.5kV
|
|
• Dielectric: polypropylene (PP) film
• Capacitor electrodes: Vacuum-deposited plastic film
• Encapsulation: solvent-resistant, flame-retardent plastic case with epoxy resin seal, UL94V-0
• Terminations: tinned wire
|
|
|
|
|
Rated Voltages (UN):
|
275V AC
|
Capacitance Tolerances:
|
±10%
|
Operating Temperature Range:
|
-55...+105°C
|
Climatic Test Category IEC:
|
55/105/56/B
|
Insulation Resistance
|
C�330nF:
|
³15000MW
|
C>330nF:
|
³5000s
|
Failure Rate (40°C, 0,5 x UN):
|
2,0 fit1)
|
Pulse Rise Time, Max. (100V/μs)
|
425Vss
|
1) 1fit = 1x10 -9 Failure Components/Hour
|
|
|
|
|
|
|
|
|

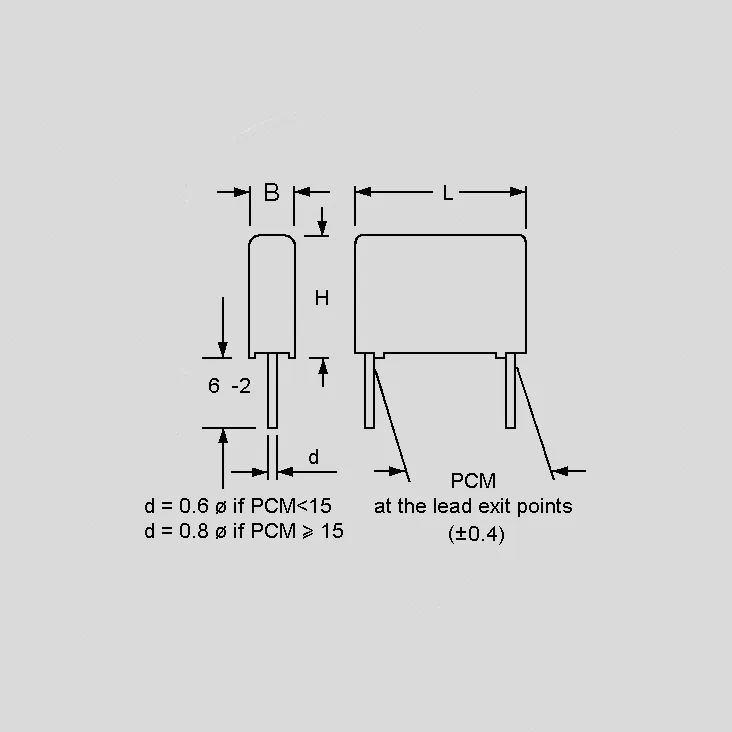

Part Nr.
|
CN
|
Ueff
|
B
|
H
|
L
|
P
|
MKPX2_
|
[nF]
|
[V AC]
|
[mm]
|
[mm]
|
[mm]
|
[mm]
|
| N100K275-10 |
100
|
275
|
8
|
12,0
|
13
|
10
|
| N100K275-15 |
100
|
275
|
6
|
12,5
|
18
|
15
|
| N150K275-15 |
150
|
275
|
6
|
12,5
|
18
|
15
|
| N220K275-15 |
220
|
275
|
8
|
15
|
18
|
15
|
| N330K275-15 |
330
|
275
|
11
|
14
|
18
|
15
|
| N470K275-22 |
470
|
275
|
10,5
|
19
|
26,5
|
22,5
|
| N680K275-22 |
680
|
275
|
11
|
21
|
26,5
|
22,5
|
| U1,0K275-22 |
1000
|
275
|
11
|
32
|
26,5
|
22,5
|
| U1,0K275-27 |
1000
|
275
|
13
|
24
|
31,5
|
27,5
|

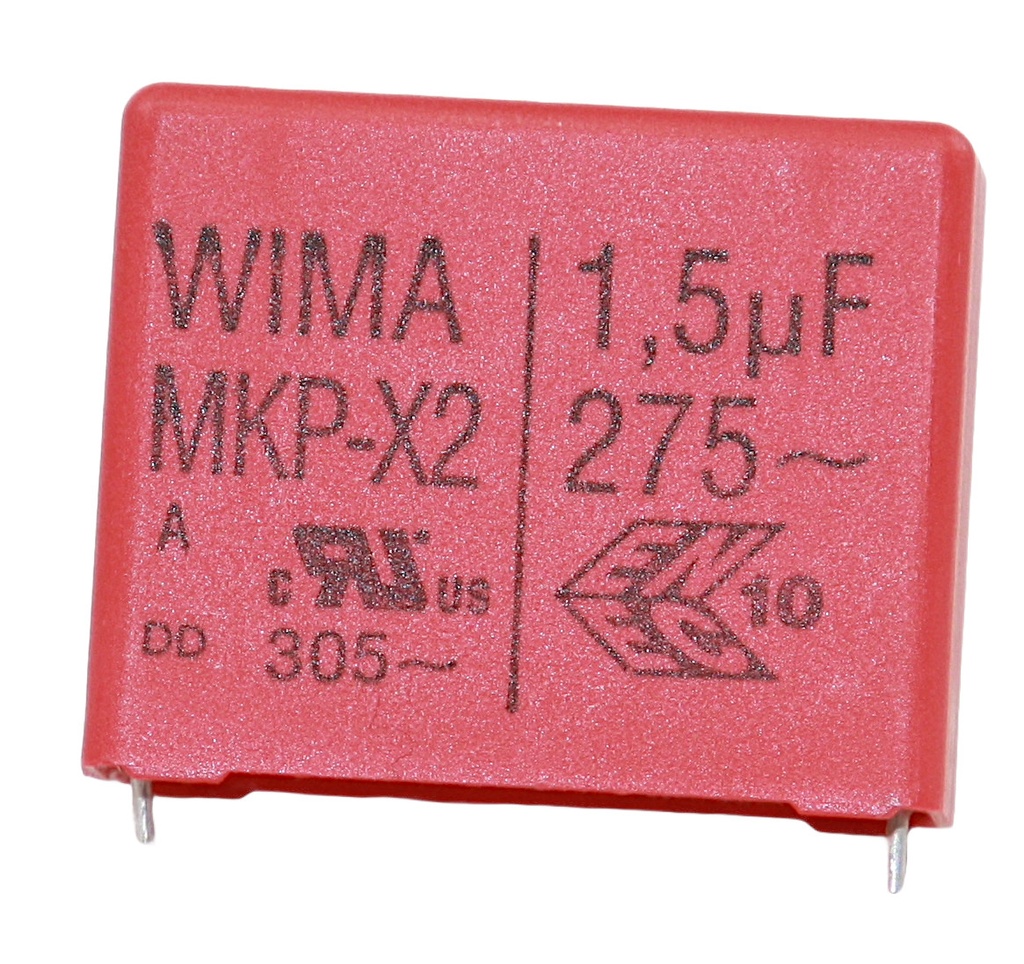

| U1,5K275-27 |
1500
|
275
|
15
|
26
|
31,5
|
27,5
|
| U2,2K275-27 |
2200
|
275
|
17
|
29
|
31,5
|
27,5
|
CN = Rated Capacitance, Ueff = RMS Voltage
|
|
Dissipation Factor Tand (20°C)
|
|
|
|
|
|
| |
|
Measured at
|
|
| |
1kHz
|
10kHz
|
100kHz
|
C�100nF
|
�10x10-4
|
�20x10-4
|
�90x10-4
|
100nFC1μF
|
�20x10-4
|
�60x10-4
|
-
|
C>1μF
|
�30x10-4
|
-
|
-
|
|
| Labelling |
Colour red, Marking: Black
Epoxy resin seal: colour red
|
|
|
