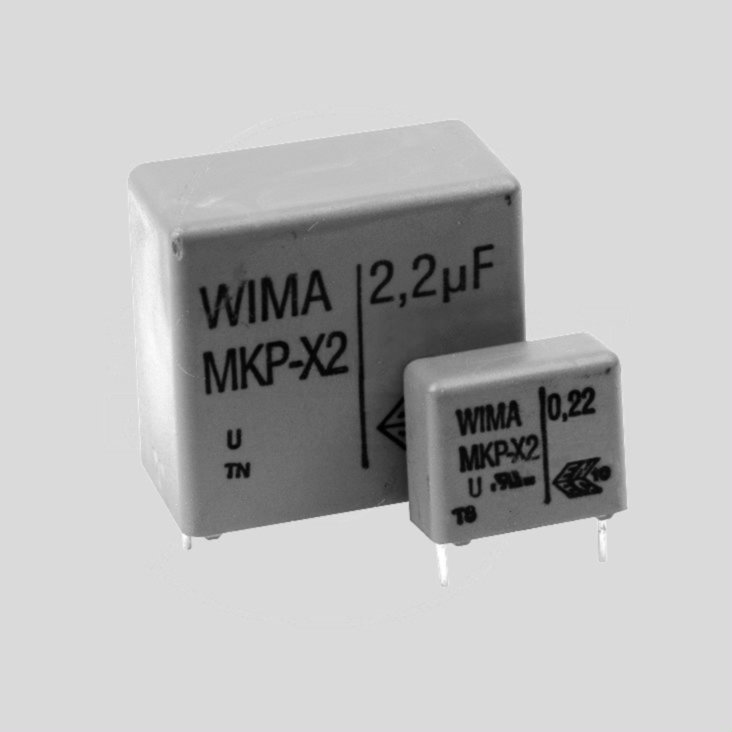

MKP Capacitor 470nF 275V P22,5
Varenummer:
102-831
Varekode:
MKPX2N470K275-22
Vægt:
10 g
Lagerstatus:
Ikke på lager
Gruppe:
C5811
WIMA MKP Metallized Film Capacitors
Series: MKP-X2
Wound Technology, Class X2
Style: Bulk
Rated Voltage: 275V AC
Tolerance: 10%
Pitch: 10...27,5mm
WIMA MKP Metallized Film Capacitors
Series: MKP-X2
Wound Technology, Class X2
Style: Bulk
Rated Voltage: 275V AC
Tolerance: 10%
Pitch: 10...27,5mm
| Features |
| • Reliable self-healing • High degree of interference suppression due to good attenuation and low ESR • Dielectric: polypropylene (PP) film • Capacitor electrodes: Vacuum-deposited plastic film • Encapsulation: solvent-resistant, flame-retardent plastic case with epoxy resin seal, UL94V-0 • Terminations: tinned wire |
 |
| Applications |
| • Class X2 RFI applications to meet EMC regulations • Capacitors connected to the mains between phase and neutral or phase conductors • Installation category II in accordance with IEC 60664, pulse peak voltage £2.5kV |
|
| Technical Specifications |
| |
| Rated Voltages (UN): | 275V AC |
| Capacitance Tolerances: | ±10% |
| Operating Temperature Range: | -55...+105°C |
| Climatic Test Category IEC: | 55/105/56/B |
| Insulation Resistance | |
| C£330nF: | ³15000MW |
| C>330nF: | ³5000s |
| Failure Rate (40°C, 0,5 x UN): | 2,0 fit1) |
| Pulse Rise Time, Max. (100V/µs) | 425Vss |
| 1) 1fit = 1x10 -9 Failure Components/Hour | |
| |

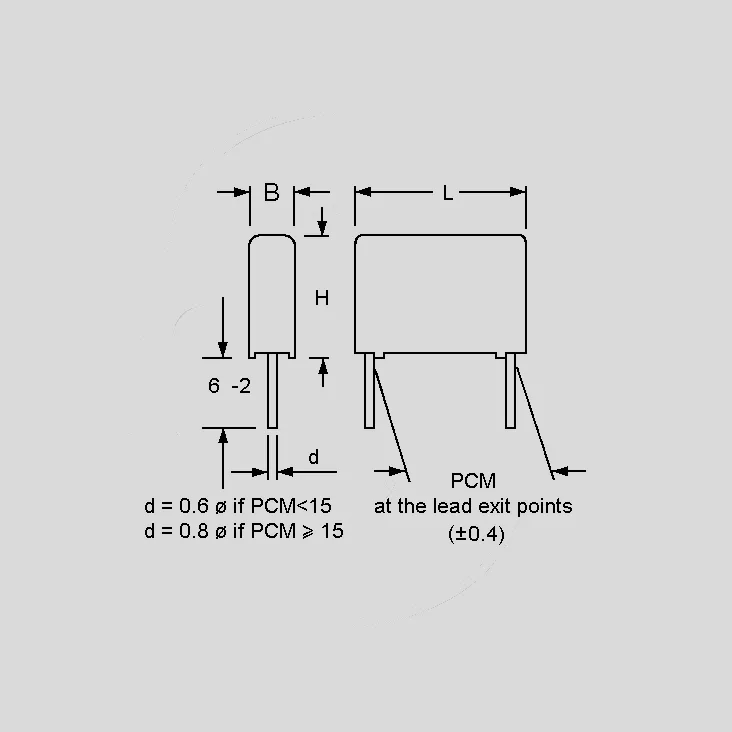

| Part Nr. | CN | B | H | L | P |
| MKPX2_ | [nF] | [mm] | [mm] | [mm] | [mm] |
| N100K275-10 | 100 | 8 | 12,0 | 13 | 10 |
| N100K275-15 | 100 | 6 | 12,5 | 18 | 15 |
| N150K275-15 | 150 | 7 | 14 | 18 | 15 |
| N220K275-15 | 220 | 8 | 15 | 18 | 15 |
| N330K275-15 | 330 | 11 | 14 | 18 | 15 |
| N470K275-22 | 470 | 10,5 | 19 | 26,5 | 22,5 |
| N680K275-22 | 680 | 11 | 21 | 26,5 | 22,5 |
| U1.0K275-22 | 1000 | 11 | 32 | 26,5 | 22,5 |
| U1.0K275-27 | 1000 | 13 | 24 | 31,5 | 27,5 |
| U1.5K275-27 | 1500 | 15 | 26 | 31,5 | 27,5 |
| U2.2K275-27 | 2200 | 17 | 29 | 31,5 | 27,5 |
| CN = Rated Capacitance | |||||
| |||||
| Dissipation Factor Tand (20°C) |
| |||
| Measured at | |||
| 1kHz | 10kHz | 100kHz | |
| C£100nF | £10x10-4 | £20x10-4 | £90x10-4 |
| 100nFC1µF | £20x10-4 | £60x10-4 | - |
| C>1µF | £30x10-4 | - | - |
| |||
| Labelling |
| Colour red, Marking: Black Epoxy resin seal: colour red |
|
| Approvals |
 10 |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 50 pieces >680nF: 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.wima.de |
|
