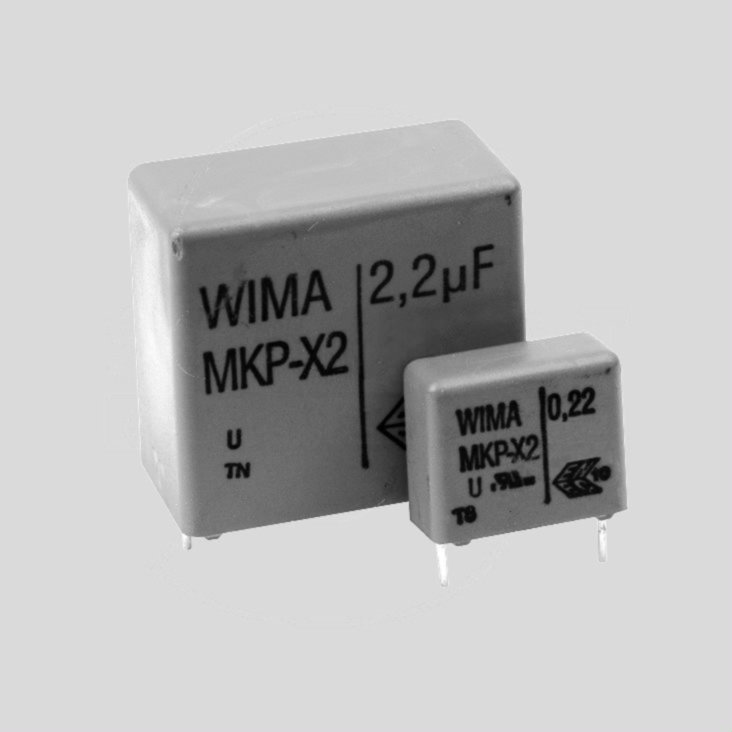

• Reliable self-healing
• High degree of interference suppression due to good attenuation and low ESR
• Dielectric: polypropylene (PP) film
• Capacitor electrodes: Vacuum-deposited plastic film
• Encapsulation: solvent-resistant, flame-retardent plastic case with epoxy resin seal, UL94V-0
• Terminations: tinned wire
• MKPX2_-_F: taped version |
 |
• Class X2 RFI applications to meet EMC regulations
• Capacitors connected to the mains between phase and neutral or phase conductors
• 275V: Installation category II in accordance with IEC 60664, pulse peak voltage max. 2.5kV
• 305V: Tests according to IEC 60384-14 |
|
|
| |
|
| Rated Voltages (UN) |
| MKPX2_K275_: |
275V AC |
| MKPX2_K305_: |
305V AC |
| Capacitance Tolerance: |
±10% |
| Operating Temperature Range: |
-55...+105°C |
| Climatic Test Category IEC: |
55/105/56/B |
| Insulation Resistance, Min. |
| to incl. 330nF: |
15000MOhm |
| from 330nF: |
5000s |
| Failure Rate (40°C, 0,5 x UN): |
2,0 fit1) |
| Pulse Rise Time, Max. (100V/µs) |
| MKPX2_K275_: |
425Vss |
| MKPX2_K305_: |
432Vss2) |
1) 1fit = 1x10 -9 Failure Components/Hour, 2) According to IEC 60384-14
|
|
| |
|
|
|
|
|

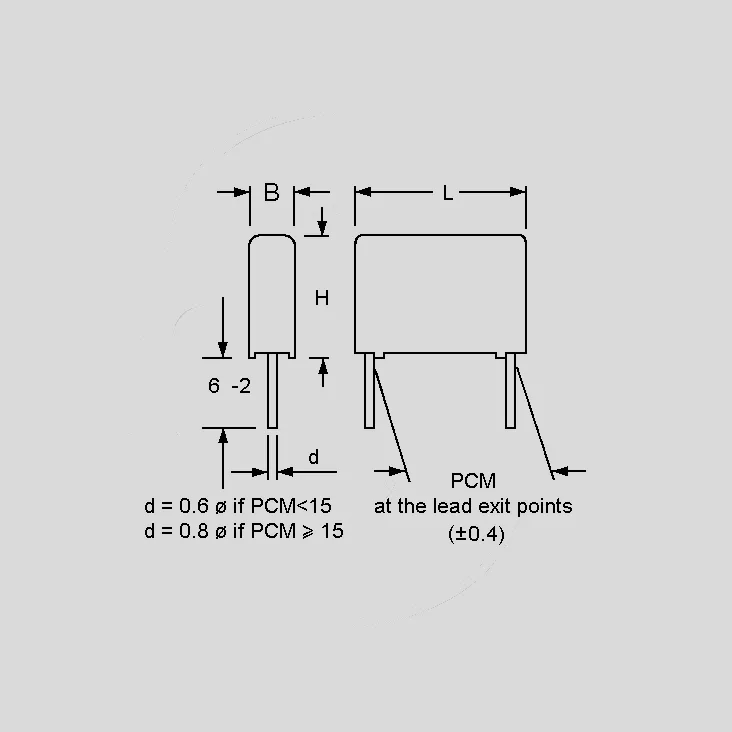

| Part Nr. |
CN |
B |
H |
L |
P |
| |
[nF] |
[mm] |
[mm] |
[mm] |
[mm] |
| MKPX2N001K305-7 |
1 |
4 |
9 |
10 |
7,5 |
| MKPX2N010K305-7 |
10 |
4 |
9 |
10 |
7,5 |
| MKPX2N047K305-7 |
47 |
5,7 |
12,5 |
10,3 |
7,5 |
| MKPX2N100K305-10 |
100 |
8 |
12 |
13 |
10 |
| MKPX2N100K305-15 |
100 |
5 |
11 |
18 |
15 |
| MKPX2N150K275-15 |
150 |
7 |
14 |
18 |
15 |
| MKPX2N150K305-15 |
150 |
6 |
12,5 |
18 |
15 |
| MKPX2N220K275-15 |
220 |
8 |
15 |
18 |
15 |
| MKPX2N220K305-15 |
220 |
9 |
14 |
18 |
15 |
| MKPX2N330K275-15 |
330 |
11 |
14 |
18 |
15 |
| MKPX2N330K305-15 |
330 |
9 |
16 |
18 |
15 |
| MKPX2N470K275-22 |
470 |
10,5 |
19 |
26,5 |
22,5 |
| MKPX2N470K305-22 |
470 |
8,5 |
18,5 |
26,5 |
22,5 |
| MKPX2N680K305-22 |
680 |
10,5 |
19 |
26,5 |
22,5 |
| MKPX2U1.0K275-22 |
1000 |
11 |
32 |
26,5 |
22,5 |
| MKPX2U1.0K305-22 |
1000 |
11 |
21 |
26,5 |
22,5 |
| MKPX2U1.0K275-27 |
1000 |
13 |
24 |
31,5 |
27,5 |
| MKPX2U1.0K305-27 |
1000 |
13 |
24 |
31,5 |
27,5 |
| MKPX2U1.5K275-27 |
1500 |
15 |
26 |
31,5 |
27,5 |
| MKPX2U1.5K305-27 |
1500 |
15 |
26 |
31,5 |
27,5 |
| MKPX2U2.2K275-27 |
2200 |
17 |
29 |
31,5 |
27,5 |
| MKPX2U2.2K305-27F |
2200 |
17 |
29 |
31,5 |
27,5 |
| MKPX2U2.2K305-27 |
2200 |
17 |
29 |
31,5 |
27,5 |
| MKPX2U3.3K305-27 |
3300 |
17 |
34,5 |
31,5 |
27,5 |
| MKPX2U4.7K305-27 |
4700 |
20 |
39,5 |
31,5 |
27,5 |
| MKPX2U10K305-37 |
10000 |
24 |
45,5 |
41,5 |
37,5 |
| CN = Rated Capacitance |
|
Dissipation Factor Tand (20°C)
|
| |
|
|
|
| |
|
Measured at |
|
| |
1kHz |
10kHz |
100kHz |
| to incl. 100nF |
Max. 101)/152)x10-4 |
Max. 20x10-4 |
Max. 901)/1002)x10-4 |
| 100nF...1µF |
Max. 20x10-4 |
Max. 60x10-4 |
- |
| from 1µF |
Max. 30x10-4 |
- |
- |
| 1)MKPX2N100K275_, 2)MKPX2N100K305_ |
|
| Labelling |
Colour red, Marking: Black
Epoxy resin seal: colour red |
|
| Terms of Delivery |
| Minimum order quantity: please see price list column "MOQ". |
|
|
