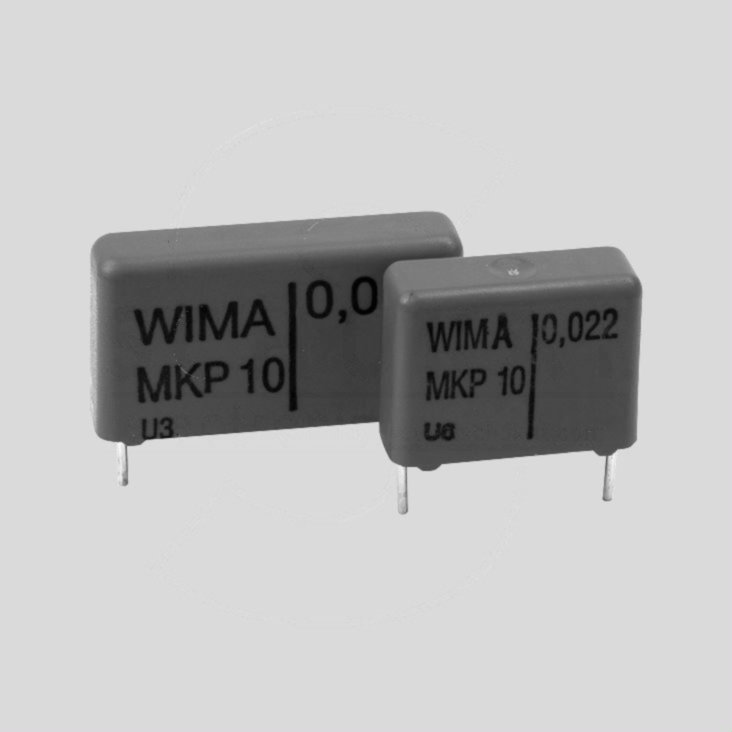

MKP Capacitor 47nF 630V 10% P15
Varenummer:
102-771
Varekode:
MKP10N047K630-15
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
C5731
WIMA MKP Film Capacitors
Series: MKP10
Style: Bulk
Rated Voltage: 630/1000V DC
Tolerance: 10%
Pitch: 7,5...37,5mm
C5731
WIMA MKP Film Capacitors
Series: MKP10
Style: Bulk
Rated Voltage: 630/1000V DC
Tolerance: 10%
Pitch: 7,5...37,5mm
| Features |
| • Dielectric: Polypropylene film • Capacitor electrodes: Double-sided metallized plastic film • Encapsulation: solvent-resistant, flame-retardent plastic case with epoxy resin seal, UL94V-0 • Terminations: tinned wire • Pulse duty construction 150...2800V/µs (individual Data see Datasheet) • Self-healing • Very low dissipation factor • Negative capacitance change versus temperature |
 |
| Typical Applications |
| For pulse applications e.g. switch mode power supplies, TV and monitor sets, lighting, audio/video equipment |
|
| Technical Specifications |
| |
| Rated Voltages (UN): | see Table |
| Test Voltage (2s): | 1,6xUN |
| Capacitance Tolerances: | ±10% |
| Operating Temperature Range: | -55...+100°C |
| Climatic Test Category IEC: | 55/100/56 |
| Insulation Resistance | |
| C£330nF: | ³100000MW |
| C>330nF: | ³30000s |
| Failure Rate (40°C, 0,5 x UN): | 1,0 fit1) |
| 1) 1fit = 1x10 -9 Failure Components/Hour | |
| |

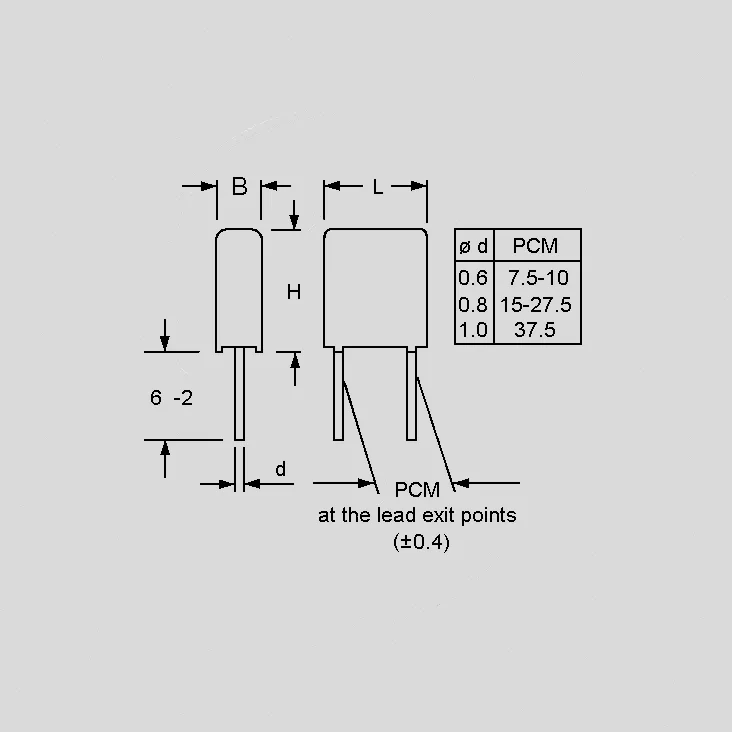

| Part Nr. | CN | UN | Ueff | B | H | L | P |
| MKP10_ | [nF/µF] | [V DC] | [V AC] | [mm] | [mm] | [mm] | [mm] |
| N1.0K630-7 | 1,0 | 630 | 400 | 4,0 | 9,0 | 10,0 | 7,5 |
| N1.5K630-7 | 1,5 | 630 | 400 | 4,0 | 9,0 | 10,0 | 7,5 |
| N2.2K630-7 | 2,2 | 630 | 400 | 4,0 | 9,0 | 10,0 | 7,5 |
| N3.3K630-7 | 3,3 | 630 | 400 | 4,0 | 9,0 | 10,0 | 7,5 |
| N4.7K630-7 | 4,7 | 630 | 400 | 4,0 | 9,0 | 10,0 | 7,5 |
| N010K630-7 | 10 | 630 | 400 | 5,0 | 10,5 | 10,3 | 7,5 |
| N015K630-10 | 15 | 630 | 400 | 5,0 | 11,0 | 13,0 | 10,0 |
| N022K630-10 | 22 | 630 | 400 | 5,0 | 11,0 | 13,0 | 10,0 |
| N033K630-10 | 33 | 630 | 400 | 6,0 | 12,0 | 13,0 | 10,0 |
| N047K630-15 | 47 | 630 | 400 | 6,0 | 12,5 | 18,0 | 15,0 |
| N068K630-15 | 68 | 630 | 400 | 7,0 | 14,0 | 18,0 | 15,0 |
| N100K630-15 | 100 | 630 | 400 | 9,0 | 16,0 | 18,0 | 15,0 |
| N150K630-22 | 150 | 630 | 400 | 8,5 | 18,5 | 26,5 | 22,5 |
| N220K630-22 | 220 | 630 | 400 | 8,5 | 18,5 | 26,5 | 22,5 |
| N330K630-22 | 330 | 630 | 400 | 11,0 | 21,0 | 26,5 | 22,5 |
| N470K630-27 | 470 | 630 | 400 | 11,0 | 21,0 | 31,5 | 27,5 |
| N680K630-27 | 680 | 630 | 400 | 15,0 | 26,0 | 31,5 | 27,5 |
| U1.0K630-27 | 1,0 | 630 | 400 | 17,0 | 29,0 | 31,5 | 27,5 |
| U2.2K630-37 | 2,2 | 630 | 400 | 20,0 | 39,5 | 41,5 | 37,5 |
| U3.3K630-37 | 3,3 | 630 | 400 | 24,0 | 45,0 | 41,5 | 37,5 |
| N1.0K1K0-7 | 1,0 | 1000 | 600 | 4,0 | 9,0 | 10,0 | 7,5 |
| N2.2K1K0-7 | 2,2 | 1000 | 600 | 4,0 | 9,0 | 10,0 | 7,5 |
| N3.3K1K0-7 | 3,3 | 1000 | 600 | 4,0 | 9,0 | 10,0 | 7,5 |
| N4.7K1K0-7 | 4,7 | 1000 | 600 | 4,5 | 9,5 | 10,3 | 7,5 |
| N022K1K0-15 | 22 | 1000 | 600 | 6,0 | 12,5 | 18,0 | 15,0 |
| N033K1K0-15 | 33 | 1000 | 600 | 7,0 | 14,0 | 18,0 | 15,0 |
| N047K1K0-15 | 47 | 1000 | 600 | 8,0 | 15,0 | 18,0 | 15,0 |
| N100K1K0-22 | 100 | 1000 | 600 | 8,5 | 18,5 | 26,5 | 22,5 |
| N220K1K0-27 | 220 | 1000 | 600 | 11,0 | 21,0 | 31,5 | 27,5 |
| N33K1K0-27 | 330 | 1000 | 600 | 15,0 | 26,0 | 31,5 | 27,5 |
| CN = Rated Capacitance, UN = Rated Voltage DC, Ueff = RMS Voltage | |||||||
| |||||||
| Dissipation Factor Tand (20°C) |
| |||
| Measured at | |||
| 1kHz | 10kHz | 100kHz | |
| C£100nF | £3x10-4 | £4x10-4 | £15x10-4 |
| 100nFC1µF | £3x10-4 | £6x10-4 | - |
| C>1µF | £3x10-4 | - | - |
| |||
| Labelling |
| Colour red, Marking: Black Epoxy resin seal: colour red |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 50 pieces 330nF...3,3µF (630V), 220nF...330nF (1000V): 1 PKU = 10 pieces |
|
| Manufacturer |
 |
| http://www.wima.de |
|
