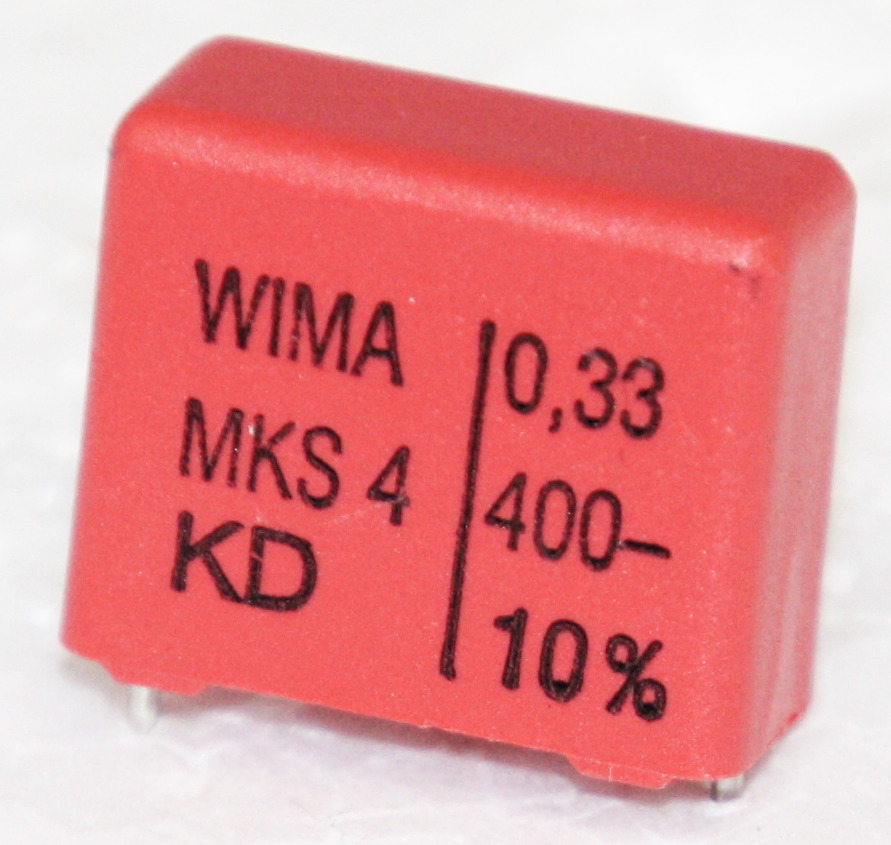

MKT Capacitor 330nF 400V 10% P15
Varenummer:
102-740
Varekode:
MKS4N330K400-15
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
C5563
WIMA MKT Film Capacitors
Series: MKS4
Style: Bulk
Rated Voltage: 400/630V DC
Tolerance: 10%
Pitch: 7,5...27,5mm
WIMA MKT Film Capacitors
Series: MKS4
Style: Bulk
Rated Voltage: 400/630V DC
Tolerance: 10%
Pitch: 7,5...27,5mm
| Features |
| • Dielectric: polyethylene-terephthalate (PET) film • Vacuum-deposited capacitor electrodes • Encapsulation: solvent-resistant, flame-retardent plastic case with epoxy resin seal, UL94 V-0 • Terminations: tinned wire • High volume/capacitance ratio and reduced base • Self-healing |
 |
| Typical Applications |
| For general DC-applications e.g. By-pass, Blocking, Coupling and decoupling, Timing. |
|
| Technical Specifications |
| |
| Rated Voltages (UN): | see Table |
| Test Voltage (2s): | 1,6xUN |
| Capacitance tolerances: | ±10% |
| Operating temperature range: | -55...+100°C |
| Climatic test category IEC: | 55/100/56 |
| Insulation resistance | |
| C£330nF: | ³30000MW |
| C>330nF: | ³10000s |
| Reliability (failure rate) (40°C, 0,5 x UN): | 2,0 fit1) |
| 1) 1fit = 1x10 -9 Failure Components/Hour | |
| |

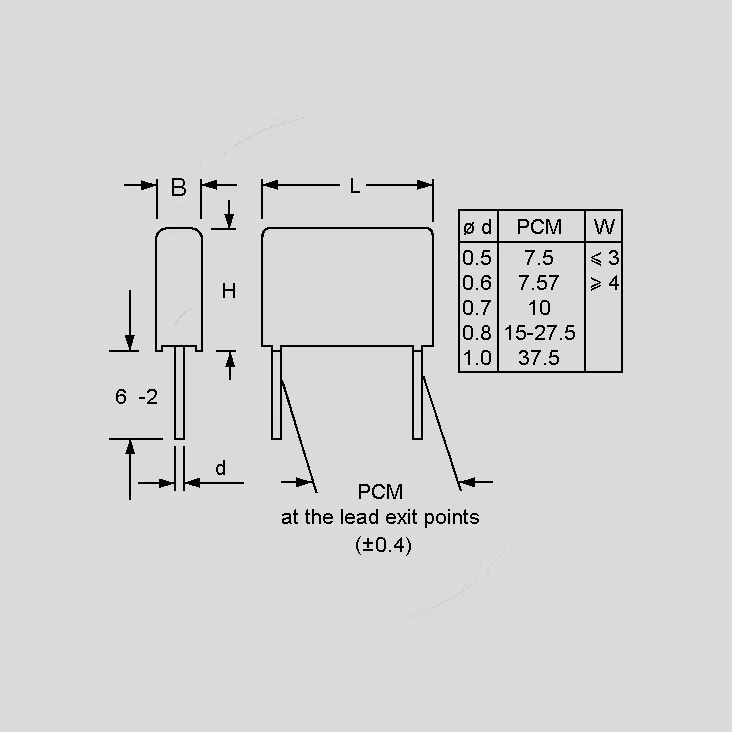

| Part Nr. | CN | UN | Ueff | B | H | L | RM |
| MKS4_ | [nF/µF] | [V DC] | [V AC] | [mm] | [mm] | [mm] | [mm] |
| N010K630-7 | 10 | 630 | 400 | 3,0 | 8,5 | 10 | 7,5 |
| N015K630-7 | 15 | 630 | 400 | 4,0 | 9,0 | 10,0 | 7,5 |
| N022K630-7 | 22 | 630 | 400 | 4,5 | 9,5 | 10,3 | 7,5 |
| N047K630-7 | 47 | 630 | 400 | 5,7 | 12,5 | 10,3 | 7,5 |
| N100K400-10 | 100 | 400 | 200 | 5,0 | 11,0 | 13,0 | 10,0 |
| N100K630-15 | 100 | 630 | 400 | 6,0 | 12,5 | 18,0 | 15,0 |
| N220K400-15 | 220 | 400 | 200 | 6,0 | 12,5 | 18,0 | 15,0 |
| N220K630-15 | 220 | 630 | 400 | 8,0 | 15,0 | 18,0 | 15,0 |
| N330K400-15 | 330 | 400 | 200 | 8,0 | 15,0 | 18,0 | 15,0 |
| N470K400-22 | 470 | 400 | 200 | 6,0 | 15,0 | 26,5 | 22,5 |
| N470K630-22 | 470 | 630 | 400 | 10,5 | 19,0 | 26,5 | 22,5 |
| N680K400-22 | 680 | 400 | 200 | 7,0 | 16,5 | 26,5 | 22,5 |
| U1.0K400-22 | 1,0 | 400 | 200 | 10,5 | 19,0 | 26,5 | 22,5 |
| U1.0K630-27 | 1,0 | 630 | 400 | 11,0 | 21,0 | 31,5 | 27,5 |
| U1.5K400-27 | 1,5 | 400 | 200 | 11,0 | 21,0 | 31,5 | 27,5 |
| U2.2K400-27 | 2,2 | 400 | 200 | 11,0 | 21,0 | 31,5 | 27,5 |
| CN = Rated Capacitance, UN = Rated Voltage DC, Ueff = RMS Voltage | |||||||
| |||||||
| Pulse Rise Time |
| CN | F400V | F630V |
| [V/µs] | [V/µs] | |
| 10nF...22nF: | 38/380 | 40/400 |
| 33nF...68nF: | 25/250 | 32/320 |
| 100nF...220nF: | 15/150 | 17/170 |
| 330nF...680nF | 10/100 | 13/130 |
| 1,0µF...2,2µF | 9/90 | 13/130 |
| F400V = Pulse Rise Time for 400V, F630V = Pulse Rise Time for 630V | ||
| ||
| Dissipation Factor Tand (20°C) |
| |||
| Measured at | |||
| 1kHz | 10kHz | 100kHz | |
| C£100nF | £8x10-3 | £15x10-3 | £30x10-3 |
| 100nFC1µF | £8x10-3 | £15x10-3 | - |
| C>1µF | £10x10-3 | - | - |
| |||
| Labelling |
| Marking: colour red, marking black Epoxy resin seal: colour red |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 100 pieces 470nF...2,2µF: 1 PKU = 10 pieces |
|
