• Dielectric: polyethylene-terephthalate (PET) film
• Vacuum-deposited capacitor electrodes
• Encapsulation: solvent-resistant, flame-retardent plastic case with epoxy resin seal, UL 94 V-0
• Terminations: tinned wire
• High volume/capacitance ratio and reduced base
• Pitch 7...27,5mm
• Self-healing
|
 |
For general DC-applications e.g. By-pass, Blocking, Coupling and decoupling, Timing.
|
|
|
|
|
Rated Voltages (UN):
|
250V
|
Test Voltage (2s):
|
1,6xUN
|
Capacitance tolerances:
|
±10%
|
Operating temperature range:
|
-55...+100°C
|
Climatic test category IEC
|
55/100/56
|
Insulation resistance
|
C�330nF:
|
³30000MW
|
C>330nF:
|
³10000s
|
Relliability (failure rate) (40°C, 0,5 x UN):
|
2,0 fit1)
|
1) 1fit = 1x10 -9 Failure Components/Hour
|
|
|
|
|
|
|
|
|
|

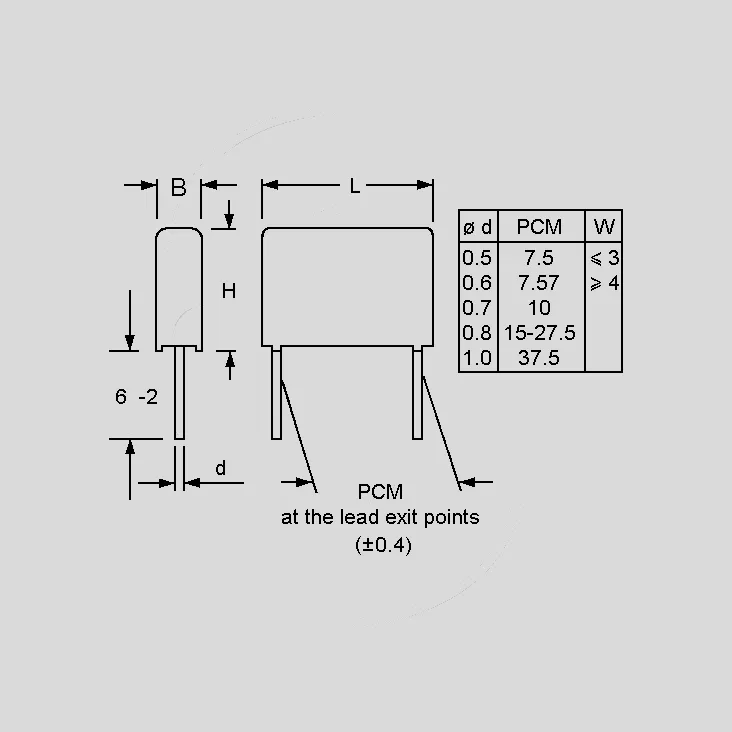

Part Nr.
|
CN
|
UN
|
Ueff
|
B
|
H
|
L
|
P
|
MKS4_
|
[nF/μF]
|
[V DC]
|
[V AC]
|
[mm]
|
[mm]
|
[mm]
|
[mm]
|
| N010K250-7 |
10
|
250
|
160
|
3,0
|
8,5
|
10,0
|
7,5
|
| N010K250-10 |
10
|
250
|
160
|
4,0
|
9,0
|
13,0
|
10,0
|
| N015K250-7 |
15
|
250
|
160
|
3,0
|
8,5
|
10,0
|
7,5
|
| N015K250-10 |
15
|
250
|
160
|
4,0
|
9,0
|
13,0
|
10,0
|
| N022K250-7 |
22
|
250
|
160
|
3,0
|
8,5
|
10,0
|
7,5
|
| N022K250-10 |
22
|
250
|
160
|
4,0
|
9,0
|
13,0
|
10,0
|
| N033K250-7 |
33
|
250
|
160
|
3,0
|
8,5
|
10,0
|
7,5
|
| N033K250-10 |
33
|
250
|
160
|
4,0
|
9,0
|
13,0
|
10,0
|
| N047K250-7 |
47
|
250
|
160
|
3,0
|
8,5
|
10,0
|
7,5
|
| N047K250-10 |
47
|
250
|
160
|
4,0
|
9,0
|
13,0
|
10,0
|
| N068K250-7 |
68
|
250
|
160
|
4,0
|
6,0
|
10,0
|
7,5
|
| N100K250-7 |
100
|
250
|
160
|
4,0
|
9,0
|
10,0
|
7,5
|
| N100K250-10 |
100
|
250
|
160
|
4,0
|
9,0
|
13,0
|
10,0
|
| N150K250-7 |
150
|
250
|
160
|
5,0
|
10,5
|
10,3
|
7,5
|
| N150K250-10 |
150
|
250
|
160
|
4,0
|
9,0
|
13,0
|
10,0
|
| N220K250-7 |
220
|
250
|
160
|
5,0
|
10,5
|
10,3
|
7,5
|
| N220K250-10 |
220
|
250
|
160
|
5,0
|
11,0
|
13,0
|
10,0
|
| N330K250-7 |
330
|
250
|
160
|
5,7
|
12,5
|
10,3
|
7,5
|
| N470K250-15 |
470
|
250
|
160
|
6,0
|
12,5
|
18,0
|
15,0
|
| N680K250-15 |
680
|
250
|
160
|
7,0
|
14,0
|
18,0
|
15,0
|
| U1,0K250-15 |
1,0
|
250
|
160
|
8,0
|
15,0
|
18,0
|
15,0
|
| U1,5K250-22 |
1,5
|
250
|
160
|
7,0
|
16,5
|
26,5
|
22,5
|
| U2,2K250-22 |
2,2
|
250
|
160
|
10,5
|
19,0
|
26,5
|
22,5
|
| U4,7K250-27 |
4,7
|
250
|
160
|
11,0
|
21,0
|
31,5
|
27,5
|
| U6,8K250-27 |
6,8
|
250
|
160
|
13,0
|
24,0
|
31,5
|
27,5
|
| U010K250-27 |
10
|
250
|
160
|
17,0
|
29,0
|
31,5
|
27,5
|
CN = Rated Capacitance, UN = Rated Voltage DC, Ueff = RMS Voltage
|
|
|
|
|
CN
|
F250V
|
|
| |
[V/μs]
|
|
| 10n...22nF: |
35/350
|
|
| 33n...68nF: |
20/200
|
|
| 100n...220nF: |
15/150
|
|
| 330n...680nF |
10/100
|
|
| 1,0μ...2,2μF |
6/60
|
|
| 3,3μ...6,8μF |
6/60
|
|
| 10μ...220μF |
3/30
|
|
F250V = Pulse Rise Time for 250V
|
|
Dissipation Factor Tand (20°C)
|
|
|
|
|
| |
|
Measured at
|
|
| |
1kHz
|
10kHz
|
100kHz
|
| C |
�8x10-3
|
�15x10-3
|
�30x10-3
|
| 100nF |
�8x10-3
|
�15x10-3
|
-
|
| C |
�10x10-3
|
-
|
-
|
|
| Labelling |
Marking: colour red, marking black
Epoxy resin seal: colour red
|
|
|
