MKT Capacitor 47nF 250V 5% P7,5
Varenummer:
102-688
Varekode:
CMA047N250S
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
C5555
KEMET/ARCOTRONICS MKT Film Capacitors
Series: R.66
Wound/ Multilayer Technology
Style: Bulk
Rated Voltage: 100...630V DC
Tolerance: 5%
Pitch: 7,5mm
KEMET/ARCOTRONICS MKT Film Capacitors
Series: R.66
Wound/ Multilayer Technology
Style: Bulk
Rated Voltage: 100...630V DC
Tolerance: 5%
Pitch: 7,5mm
| Features |
| • Dielectric polyester film. Aluminium layer plates deposited by evaporation under vacuum • Tinned wire leads • Box material is solvent resistant and flame retardant according to UL94V-0 • Low attenuation • S-Type in Multilayertechnology |
 |
| Technical Specifications |
| |
| Rated Voltage (UN): | See Table |
| Test Voltage (2s; 25±5°C ): | 1,6xUN |
| Capacitance Tolerance (1kHz): | ±5% |
| Temperature Range: | -55...+105°C |
| Climatic Category | |
| IEC 60068-1: | 55/100/56 |
| Insulation Resistance | |
| UN>100V | ³30000MW |
| C£330nF: | 3750MW |
| C>330nF: | 1250s |
| Pulse Rise Time, Max. (du/dt) | |
| 680V DC: | 40V/µs |
| 400V DC: | 30V/µs |
| 250V DC: | 15V/µs |
| 100V DC: | 6V/µs |
| Reliability (MIL HDB 217) (40°C, 0,5xUN): | £2x10-9/h = 2 fit1) |
| Dissipation Factor Tan d (25 ±5°C) | |
| 1kHz: | £100x10-4 |
| 10kHz: | £150x10-4 |
| 1) 1fit = 1x10-9 Failure Components/Hour | |
| |

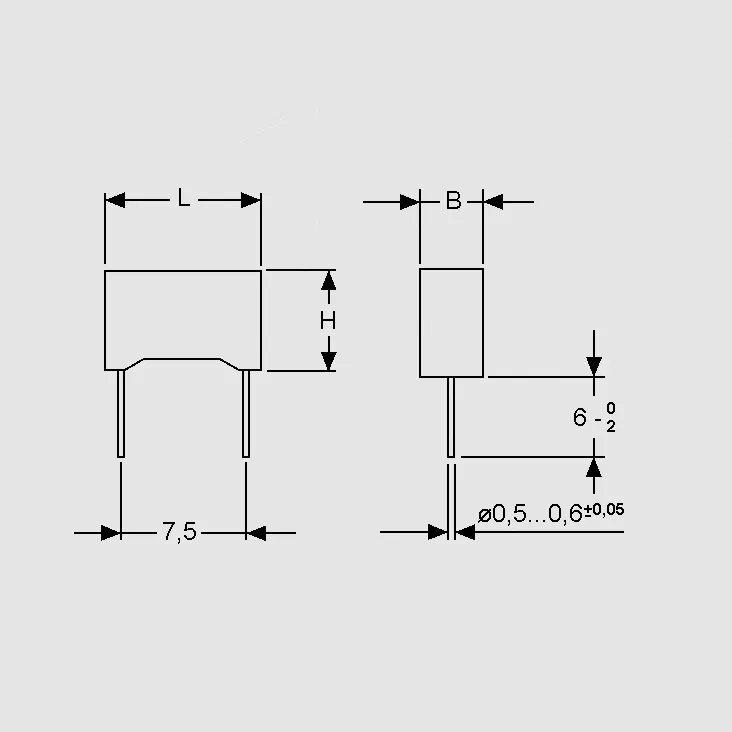

| Part Nr. | CN | UN | Ueff | B | H | L |
| [nF] | [V DC] | [V AC] | [mm] | [mm] | [mm] | |
| CMA001N400S | 1,0 | 630 | 220 | 3,0 | 8,0 | 10,0 |
| CMA002.2N400S | 2,2 | 630 | 220 | 3,0 | 8,0 | 10,0 |
| CMA004.7N400S | 4,7 | 400 | 200 | 3,0 | 8,0 | 10,0 |
| CMA010N400S | 10 | 400 | 200 | 3,0 | 8,0 | 10,0 |
| CMA022N250S | 22 | 250 | 160 | 3,0 | 8,0 | 10,0 |
| CMA047N250S | 47 | 250 | 160 | 3,0 | 8,0 | 10,0 |
| CMA100N250S | 100 | 250 | 160 | 4,0 | 9,0 | 10,0 |
| CMA220N100 | 220 | 100 | 63 | 3,5 | 8,5 | 10,5 |
| CMA470N100S | 470 | 100 | 63 | 4,0 | 9,0 | 10,0 |
| CN = Rated Capacitance, UN = Rated Voltage DC, Ueff = RMS Voltage | ||||||
| ||||||
| Labelling |
| Rated capacitance, tolerance, DC rated voltage, manufacturers logo (abbreviated form according to IEC62) |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 100 pieces Form of delivery: Bulk |
|
| Manufacturer |
 |
| http://www.kemet.com |
|
