MKT Capacitor 10nF 100V 10% P5

Varenummer:
102-674
Varekode:
MKS2N010K100-5
Vægt:
0 g
Lagerstatus:
Ikke på lager

kr 3,29 3.29 DKK kr 3,29 Inklusiv moms

kr 3,29 Inklusiv moms

Anmod os om en pris

v/10
Kr. 3,54
v/25
Kr. 2,96
v/100
Kr. 2,40
v/1000
Kr. 2,27

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/58431/image_1920?unique=14ab7d4 https://elektroniklavpris.odoo.com/web/image/product.template/58431/image_1920?unique=14ab7d4

Gruppe: C5523
WIMA MKT Film Capacitors
Series: MKS2
Style: Bulk
Rated Voltage: 63/100V DC
Tolerance: 10%
Pitch: 5mm

Features
• Dielectric: polyethylene-terephthalate (PET) film
• Vacuum-deposited capacitor electrodes
• Encapsulation: solvent-resistant, flame-retardent plastic case with epoxy resin seal, UL 94 V-0
• Terminations: tinned wire
• High volume/capacitance ratio and reduced base
• Self-healing
Typical Applications
For general DC-applications e.g. By-pass, Blocking, Coupling and decoupling, Timing
Technical Specifications
    Rated Voltages (UN): see Table Test Voltage (2s): 1,6xUN Capacitance tolerances: ±10% Operating temperature range: -55...+100°C Climatic test category IEC: 55/100/21 Insulation resistance C£330nF, 63V: ³1000MW C£330nF, 100V: ³1500MW C>330nF, 63V: ³1250s C>330nF, 100V: ³3000s Relliability (failure rate) (40°C, 0,5 x UN): 2,0 fit1)
1) 1fit = 1x10-9 Failure Components/Hour

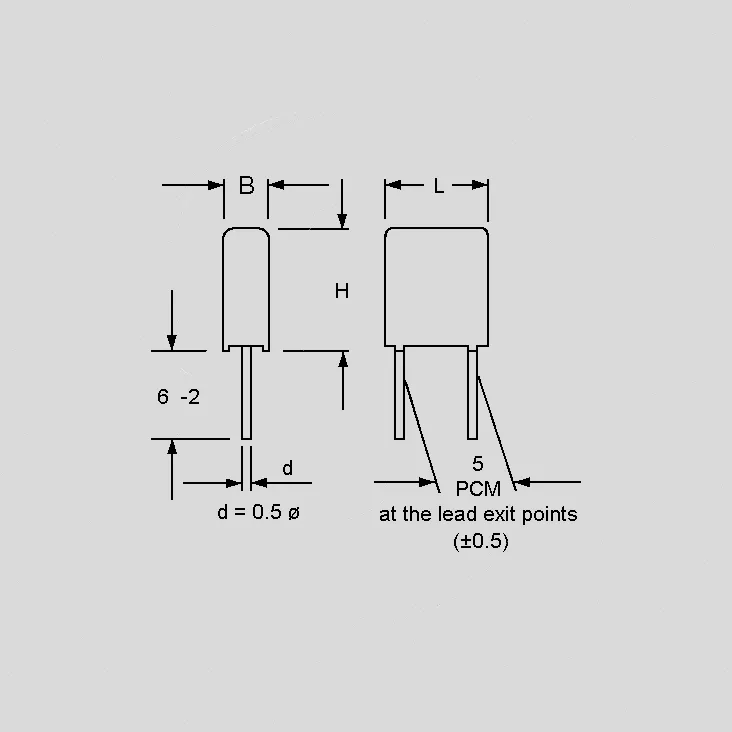

                Part Nr. CN UN Ueff B H L RM MKS2_ [nF/µF] [V DC] [V AC] [mm] [mm] [mm] [mm] N010K63-5 10 63 40 2,5 6,5 7,2 5,0 N015K63-5 15 63 40 2,5 6,5 7,2 5,0 N022K63-5 22 63 40 2,5 6,5 7,2 5,0 N033K63-5 33 63 40 2,5 6,5 7,2 5,0 N047K63-5 47 63 40 2,5 6,5 7,2 5,0 N068K63-5 68 63 40 2,5 6,5 7,2 5,0 N100K63-5 100 63 40 2,5 6,5 7,2 5,0 N150K63-5 150 63 40 2,5 6,5 7,2 5,0 N220K63-5 220 63 40 3,0 7,5 7,2 5,0 N330K63-5 330 63 40 3,5 8,5 7,2 5,0 N470K63-5 470 63 40 3,5 8,5 7,2 5,0 N680K63-5 680 63 40 4,5 9,5 7,2 5,0 U1.0K63-5 1,0 63 40 5,0 10 7,2 5,0 U1.5K63-5 1,5 63 40 5,5 11,5 7,2 5,0 U2.2K63-5 2,2 63 40 7,2 13,0 7,2 5,0 U3.3K63-5 3,3 63 40 7,2 13,0 7,2 5,0 N010K100-5 10 100 63 2,5 6,5 7,2 5,0 N015K100-5 15 100 63 2,5 6,5 7,2 5,0 N047K100-5 47 100 63 2,5 6,5 7,2 5,0 N068K100-5 68 100 63 2,5 6,5 7,2 5,0 N100K100-5 100 100 63 2,5 6,5 7,2 5,0 N150K100-5 150 100 63 3,5 8,5 7,2 5,0 N220K100-5 220 100 63 3,5 8,5 7,2 5,0 N330K100-5 330 100 63 4,5 9,5 7,2 5,0 N470K100-5 470 100 63 4,5 9,5 7,2 5,0
CN = Rated Capacitance, UN = Rated Voltage DC, Ueff = RMS Voltage
Pulse Rise Time
      CN F63V F100V   [V/µs] [V/µs] 10n...22nF: 35/350 35/350 33n...68nF: 20/200 25/250 100n...470nF: 15/150 20/200 680n...1µF: 12/120 15/150 1,5µ...3,3µF: 7,5/75 10/100
F63V = Pulse rise time for 63V, F100V = Pulse rise time for 100V
Dissipation Factor Tand (20°C)
            Measured at     1kHz 10kHz 100kHz C£100nF £8x10-3 £15x10-3 £30x10-3 100nFC1µF £8x10-3 £15x10-3 - C>1µF £10x10-3 - -
Labelling
Colour red, Marking: silver/white
Epoxy resin seal: colour yellow
Terms of Delivery
Minimum order quantity: 1 PKU = 100 pieces
Manufacturer
http://www.wima.de
