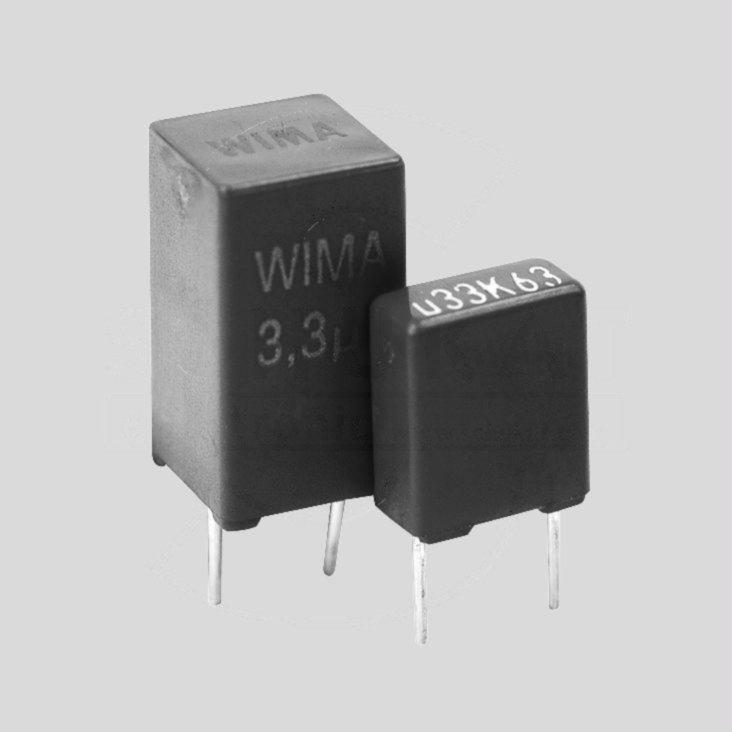

MKT Capacitor 220nF 63V 10% P5

Varenummer:
102-666
Varekode:
MKS2N220K63-5
Vægt:
0 g
Lagerstatus:
Ikke på lager

kr 3,34 3.34 DKK kr 3,34 Inklusiv moms

kr 3,34 Inklusiv moms

Anmod os om en pris

v/10
Kr. 3,60
v/25
Kr. 3,01
v/100
Kr. 2,42
v/1000
Kr. 2,30

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/58423/image_1920?unique=14ab7d4 https://elektroniklavpris.odoo.com/web/image/product.template/58423/image_1920?unique=14ab7d4

Features

• Dielectric: polyethylene-terephthalate (PET) film
• Vacuum-deposited capacitor electrodes
• Encapsulation: solvent-resistant, flame-retardent plastic case with epoxy resin seal, UL 94 V-0
• Terminations: tinned wire
• Self-healing
Technical Specifications

Rated Voltages (UN): see Table
Test Voltage (2s): 1,6xUN
Capacitance tolerances: ±10%
Operating temperature range: -55...+100°C
Climatic test category IEC: 55/100/21
Insulation resistance, Min
to incl. 330nF, 63V: 1000MOhm
to incl. 30nF, 100V: 1500MOhm
from 330nF, 63V: 1250s
from 330nF, 100V: 3000s
Relliability (failure rate) (40°C, 0,5 x UN): 2,0 fit1)
1) 1fit = 1x10-9 Failure Components/Hour

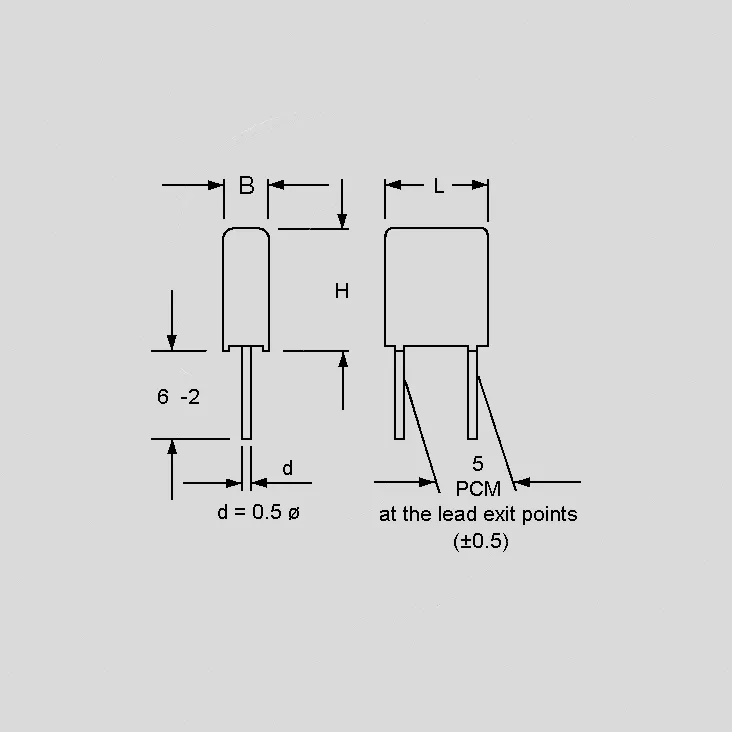

Part Nr. CN UN Ueff B H L RM
  [nF/µF] [V DC] [V AC] [mm] [mm] [mm] [mm]
MKS2N010K63-5 10 63 40 2,5 6,5 7,2 5,0
MKS2N015K63-5 15 63 40 2,5 6,5 7,2 5,0
MKS2N022K63-5 22 63 40 2,5 6,5 7,2 5,0
MKS2N033K63-5 33 63 40 2,5 6,5 7,2 5,0
MKS2N047K63-5 47 63 40 2,5 6,5 7,2 5,0
MKS2N068K63-5 68 63 40 2,5 6,5 7,2 5,0
MKS2N100K63-5 100 63 40 2,5 6,5 7,2 5,0
MKS2N150K63-5 150 63 40 2,5 6,5 7,2 5,0
MKS2N220K63-5 220 63 40 3,0 7,5 7,2 5,0
MKS2N330K63-5 330 63 40 3,5 8,5 7,2 5,0
MKS2N470K63-5 470 63 40 3,5 8,5 7,2 5,0
MKS2N680K63-5 680 63 40 4,5 9,5 7,2 5,0
MKS2U1.0K63-5 1,0 63 40 5,0 10 7,2 5,0
MKS2U1.5K63-5 1,5 63 40 5,5 11,5 7,2 5,0
MKS2U2.2K63-5 2,2 63 40 7,2 13,0 7,2 5,0
MKS2U3.3K63-5 3,3 63 40 7,2 13,0 7,2 5,0
MKS2N010K100-5 10 100 63 2,5 6,5 7,2 5,0
MKS2N015K100-5 15 100 63 2,5 6,5 7,2 5,0
MKS2N047K100-5 47 100 63 2,5 6,5 7,2 5,0
MKS2N068K100-5 68 100 63 2,5 6,5 7,2 5,0
MKS2N100K100-5 100 100 63 2,5 6,5 7,2 5,0
MKS2N150K100-5 150 100 63 3,5 8,5 7,2 5,0
MKS2N220K100-5 220 100 63 3,5 8,5 7,2 5,0
MKS2N330K100-5 330 100 63 4,5 9,5 7,2 5,0
MKS2N470K100-5 470 100 63 4,5 9,5 7,2 5,0
CN = Rated Capacitance, UN = Rated Voltage DC, Ueff = RMS Voltage
Pulse Rise Time

CN F63V F100V
  [V/µs] [V/µs]
10n...22nF: 35/350 35/350
33n...68nF: 20/200 25/250
100n...470nF: 15/150 20/200
680n...1µF: 12/120 15/150
F63V = Pulse rise time for 63V, F100V = Pulse rise time for 100V
Dissipation Factor Tand (20°C)

    Measured at
  1kHz 10kHz 100kHz
to incl. 100nF Max. 8x10-3 Max. 15x10-3 Max. 30x10-3
100nF...1µF Max. 8x10-3 Max. 15x10-3 -
from 1µF Max. 10x10-3 - -
Labelling
Colour red, Marking: silver/white
Epoxy resin seal: colour yellow
