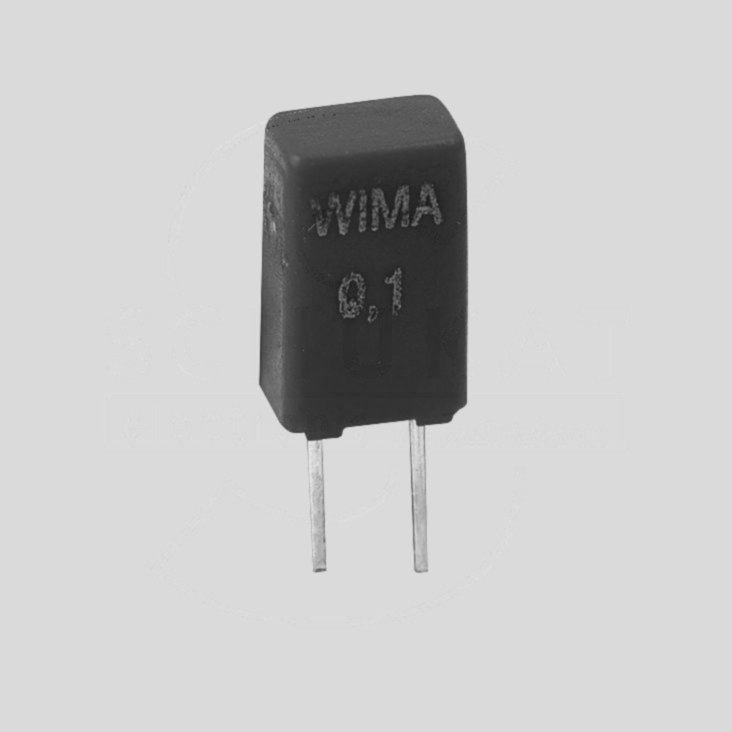

• Dielectric: Polyethylene-terephthalate (PET) film
• Capacitor electrodes Vacuum-deposited
• Encapsulation: Solvent-resistant, flame-retardent plastic case with epoxy resin seal, UL 94 V-0
• Terminations Tinned wire
• High volume/capacitance ratio and reduced base
• Pitch 2,5 mm
• Self-healing |
 |
| For general DC-applications e.g. By-pass, Blocking, Coupling and decoupling, Timing |
|
|
| |
|
Rated Voltages (UN): |
see Table |
Test Voltage (2s): |
1,6xUN |
Capacitance tolerances: |
±10% |
Operating temperature range: |
-55...+100°C |
Climatic test category IEC |
55/100/21 |
Insulation resistance |
C�330nF: |
³3750 MW |
C>330nF: |
³1250s |
Rate of Change (du/dt), Max.: |
10n...22nF: |
50/500V / μs |
33n...68nF: |
30/300V / μs |
100n...330nF: |
20/200V / μs |
470n...1μF: |
15/150V / μs |
Relliability (failure rate) (40°C, 0,5 x UN): |
2,0 fit1) |
| 1) 1fit = 1x10 -9 Failure Components/Hour |
|
|
| |
|
|
|
|
|
|
|

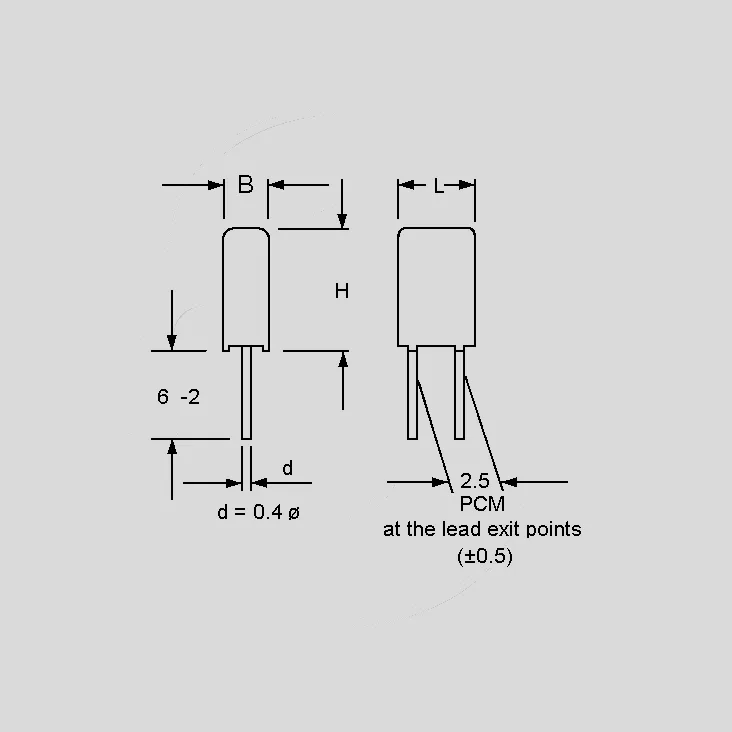

Part Nr. |
CN |
UN |
Ueff |
B |
H |
L |
P |
MKS02_ |
[nF] |
[V=] |
[V~] |
[mm] |
[mm] |
[mm] |
[mm] |
N010K63-2,5 |
10 |
63 |
40 |
2,5 |
7 |
4,6 |
2,5 |
N015K63-2,5 |
15 |
63 |
40 |
2,5 |
7 |
4,6 |
2,5 |
N022K63-2,5 |
22 |
63 |
40 |
2,5 |
7 |
4,6 |
2,5 |
N033K63-2,5 |
33 |
63 |
40 |
2,5 |
7 |
4,6 |
2,5 |
N047K63-2,5 |
47 |
63 |
40 |
2,5 |
7 |
4,6 |
2,5 |
N068K63-2,5 |
68 |
63 |
40 |
3,0 |
7,5 |
4,6 |
2,5 |
N100K63-2,5 |
100 |
63 |
40 |
3,0 |
7,5 |
4,6 |
2,5 |
N220K63-2,5 |
220 |
63 |
40 |
3,0 |
7,5 |
4,6 |
2,5 |
N330K63-2,5 |
330 |
63 |
40 |
3,8 |
8,5 |
4,6 |
2,5 |
N470K63-2,5 |
470 |
63 |
40 |
5,5 |
10 |
4,6 |
2,5 |
U1,0K50-2,5 |
1000 |
50 |
30 |
5,5 |
10 |
4,6 |
2,5 |
| CN = Rated Capacitance, UN = Rated Voltage DC, Ueff = RMS Voltage |
|
Dissipation Factor Tand (20°C)
|
| |
|
|
|
|
|
Measured at |
|
|
1kHz |
10kHz |
100kHz |
C |
�8x10-3 |
�15x10-3 |
�30x10-3 |
100nF |
�8x10-3 |
�15x10-3 |
- |
|
| Labelling |
Marking: colour red. Marking: Silver
Epoxy resin seal: colour yellow |
|
|
