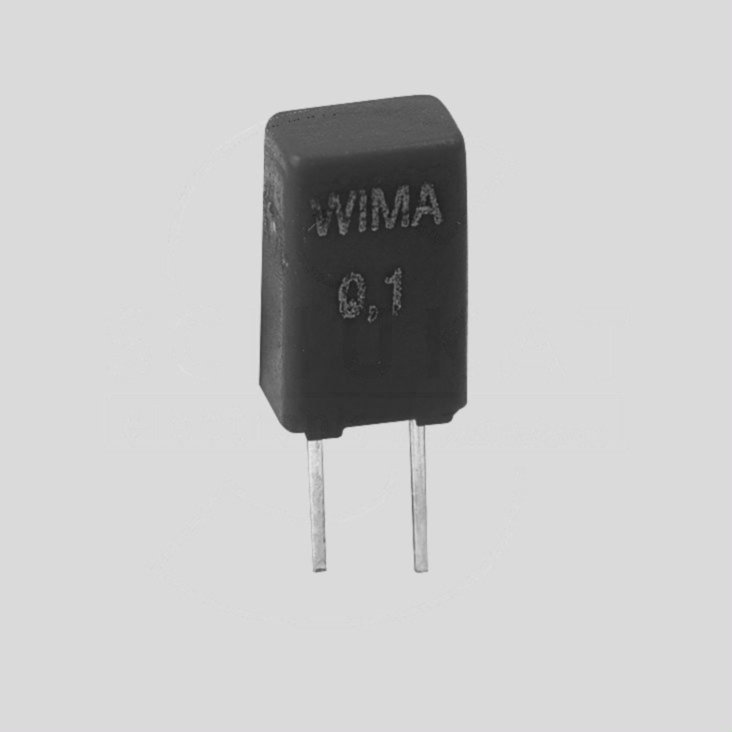

• Dielectric: Polyethylene-terephthalate (PET) film
• Capacitor electrodes Vacuum-deposited
• Encapsulation: Solvent-resistant, flame-retardent plastic case with epoxy resin seal, UL 94 V-0
• Terminations Tinned wire
• High volume/capacitance ratio and reduced base
• Pitch 2,5 mm
• Self-healing
|
 |
For general DC-applications e.g. By-pass, Blocking, Coupling and decoupling, Timing
|
|
|
|
|
Rated Voltages (UN):
|
see Table
|
Test Voltage (2s):
|
1,6xUN
|
Capacitance tolerances:
|
±10%
|
Operating temperature range:
|
-55...+100°C
|
Climatic test category IEC
|
55/100/21
|
Insulation resistance
|
C�330nF:
|
³3750 MW
|
C>330nF:
|
³1250s
|
Rate of Change (du/dt), Max.:
|
10n...22nF:
|
50/500V / μs
|
33n...68nF:
|
30/300V / μs
|
100n...330nF:
|
20/200V / μs
|
470n...1μF:
|
15/150V / μs
|
Relliability (failure rate) (40°C, 0,5 x UN):
|
2,0 fit1)
|
1) 1fit = 1x10 -9 Failure Components/Hour
|
|
|
|
|
|
|
|
|
|
|

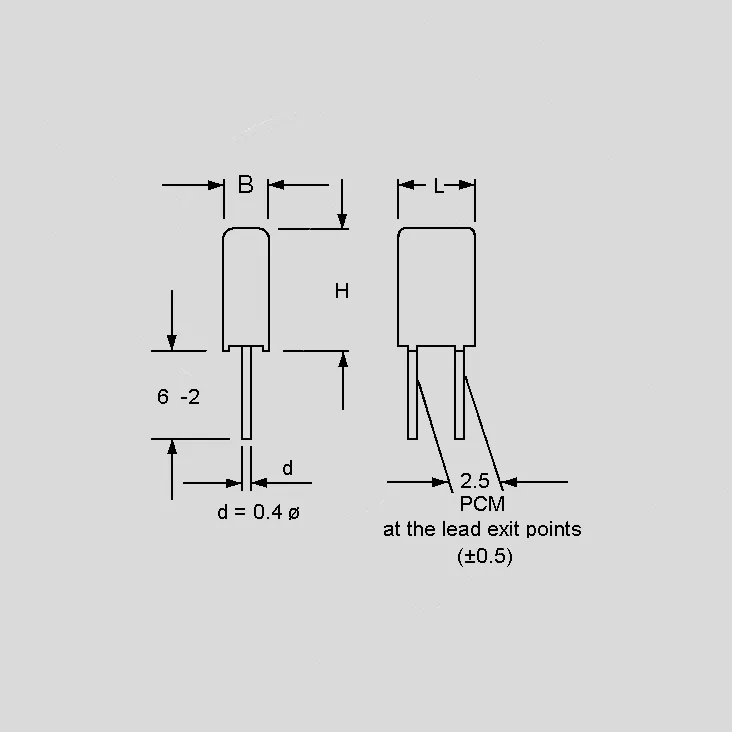

Part Nr.
|
CN
|
UN
|
Ueff
|
B
|
H
|
L
|
P
|
MKS02_
|
[nF]
|
[V=]
|
[V~]
|
[mm]
|
[mm]
|
[mm]
|
[mm]
|
N010K63-2,5
|
10
|
63
|
40
|
2,5
|
7
|
4,6
|
2,5
|
N015K63-2,5
|
15
|
63
|
40
|
2,5
|
7
|
4,6
|
2,5
|
N022K63-2,5
|
22
|
63
|
40
|
2,5
|
7
|
4,6
|
2,5
|
N033K63-2,5
|
33
|
63
|
40
|
2,5
|
7
|
4,6
|
2,5
|
N047K63-2,5
|
47
|
63
|
40
|
2,5
|
7
|
4,6
|
2,5
|
N068K63-2,5
|
68
|
63
|
40
|
3,0
|
7,5
|
4,6
|
2,5
|
N100K63-2,5
|
100
|
63
|
40
|
3,0
|
7,5
|
4,6
|
2,5
|
N220K63-2,5
|
220
|
63
|
40
|
3,0
|
7,5
|
4,6
|
2,5
|
N330K63-2,5
|
330
|
63
|
40
|
3,8
|
8,5
|
4,6
|
2,5
|
N470K63-2,5
|
470
|
63
|
40
|
5,5
|
10
|
4,6
|
2,5
|
U1,0K50-2,5
|
1000
|
50
|
30
|
5,5
|
10
|
4,6
|
2,5
|
CN = Rated Capacitance, UN = Rated Voltage DC, Ueff = RMS Voltage
|
|
Dissipation Factor Tand (20°C)
|
|
|
|
|
| |
|
Measured at
|
|
| |
1kHz
|
10kHz
|
100kHz
|
| C |
�8x10-3
|
�15x10-3
|
�30x10-3
|
| 100nF |
�8x10-3
|
�15x10-3
|
-
|
|
| Labelling |
Marking: colour red. Marking: Silver
Epoxy resin seal: colour yellow
|
|
|
