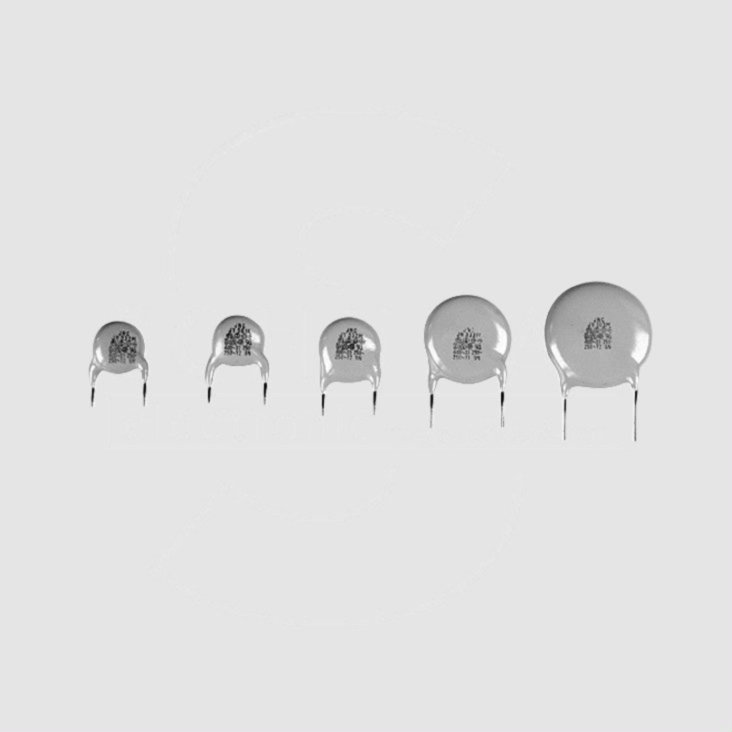

Cer Capacitor 3,3nF X1/Y2 P7,5

Varenummer:
102-622
Varekode:
JY10NF003,3F
Vægt:
0 g
Lagerstatus:
Ikke på lager

kr 0,00 0.0 DKK kr 0,00 Inklusiv moms

kr 0,00 Inklusiv moms

Anmod os om en pris

v/100
Kr. 1,90
v/300
Kr. 1,59
v/1000
Kr. 1,26

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/58379/image_1920?unique=37fea8b https://elektroniklavpris.odoo.com/web/image/product.template/58379/image_1920?unique=37fea8b
Features
• Minimum reinforced insulation 0,4mm
• Coated with flame-retardant epoxy resin conforming to UL94-0
• High operating temperature up to 125°C (UL/CSA: 85°C)
Technical Specifications
Rated Voltage (50/60Hz)
X1:
 440V AC (UL/CSA 250V AC)
Y2:
 250V AC
Temperature Range
Y5P, Y5V:
 -25...+85°C
Y5U:
 -25...+125°C
Test Voltage (1Min.):
 2600V AC
Insulation Resistance:
 10000MW
Dissipation Factor Tan d (1kHz, 1rms, 25°C):
 �2,5%

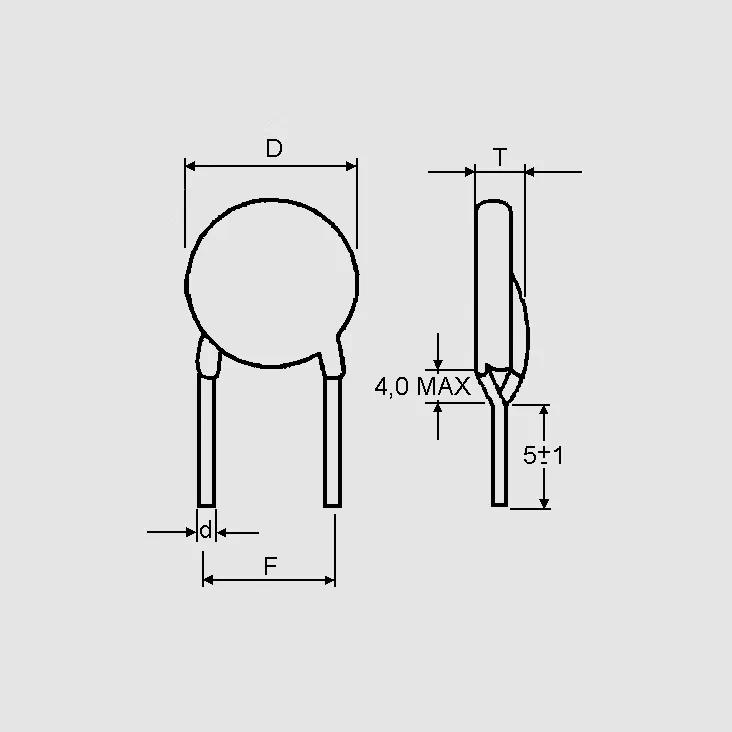

Pitch (F):
 7,5mm
Body Thickness (T):
 8mm
Lead Wire Diameter (d):
 0,65±0,05mm
Part Nr.
 CN

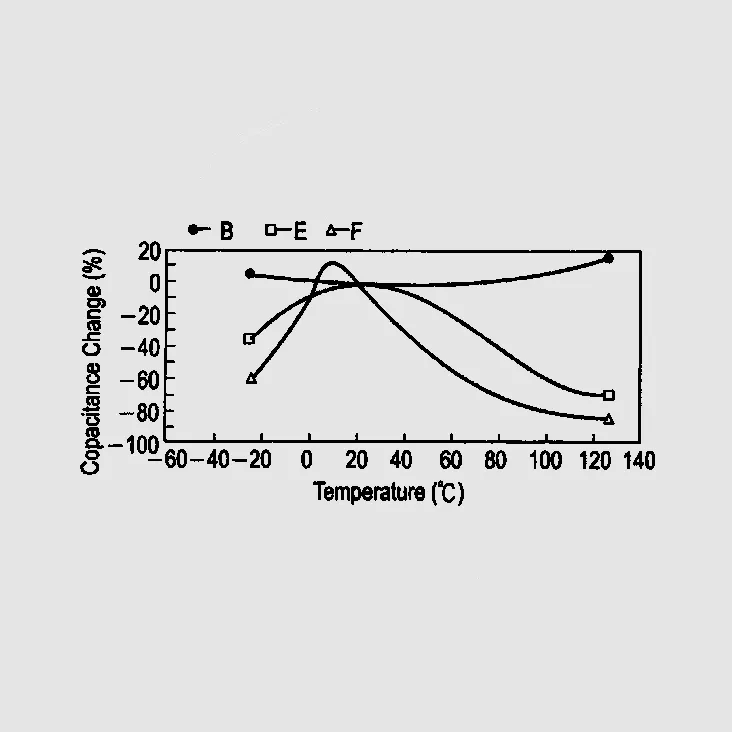

 Temp.
 Mat.
 Tol.
 Dmax.
 P
  [pF]
 Char.
   [%]
 [mm]
 [mm]
JY08PF150F 150
 B
 Y5P
 ±10
 8,0
 7,5
JY08PF470F 470
 B
 Y5P
 ±10
 8,0
 7,5
JY10NF001F 1000
 B
 Y5P
 ±10
 10,0
 7,5
JY08NF001,5F 1500
 F
 Y5V
 -30/+80
 9,0
 7,5
JY09NF002,2F 2200
 F
 Y5V
 -30/+80
 10,0
 7,5
JY10NF003,3F 3300
 F
 Y5V
 -30/+80
 12,0
 7,5
JY12NF004,7F 4700
 F
 Y5V
 -30/+80
 14,0
 7,5
CN = Rated Capacitance, Temp. Char. = Temperature Characteristics, Mat. = Ceramic Material, Tol. = Capacitance Tolerance
Norms
EN132400:1994, IEC384-12 2nd Ed(1993), IEC60384-14 2nd Ed., UL1414, C22.2 No.1
Approvals
10, CB
Manufacturer
Jya-Nay
http://www.jyanay.com.tw
