Cer Capacitor 470pF X1/Y2 P7,5
Varenummer:
102-619
Varekode:
JY08PF470F
Vægt:
0 g
Lagerstatus:
Ikke på lager
Gruppe:
C5315
JYA-NAY Ceramic Suppression Capacitors
Series: JY
Style: Bulk
Class: X1, Y2
Pitch: 7,5mm
JYA-NAY Ceramic Suppression Capacitors
Series: JY
Style: Bulk
Class: X1, Y2
Pitch: 7,5mm
| Features |
| • Minimum reinforced insulation 0,4mm • Coated with flame-retardant epoxy resin conforming to UL94-0 • High operating temperature up to 125°C (UL/CSA: 85°C) |
 |
| Technical Specifications |
| |
| Rated Voltage (50/60Hz) | |
| X1: | 440V AC (UL/CSA 250V AC) |
| Y2: | 250V AC |
| Temperature Range | -25...+85°C |
| Test Voltage (1Min.): | 2600V AC |
| Insulation Resistance: | 10000MW |
| Dissipation Factor Tan d (1kHz, 1rms, 25°C): | £2,5% |

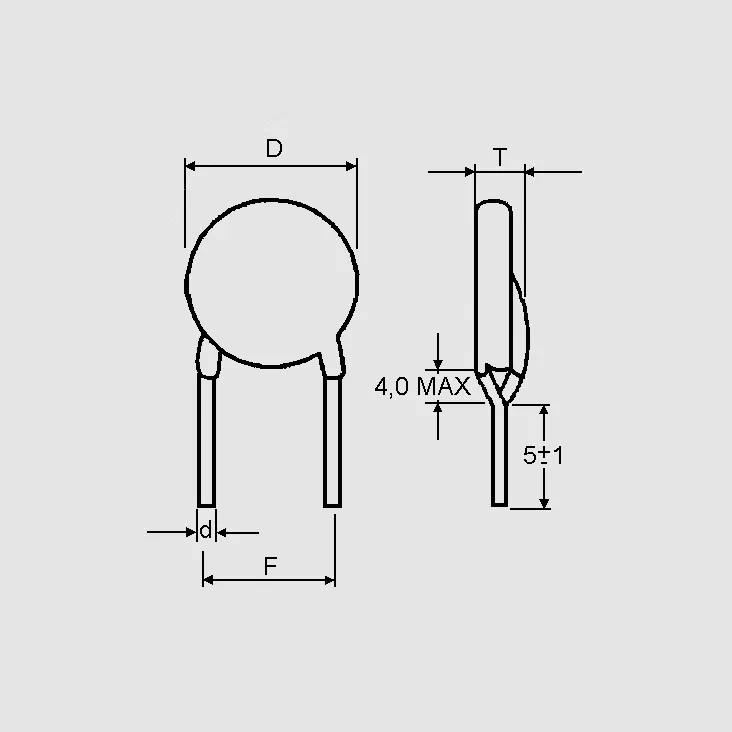

| Pitch (F): | 7,5mm |
| Body Thickness, Max. (T): | 8mm |
| Lead Wire Diameter (d): | 0,65±0,05mm |
| |
| Part Nr. | CN | Temp. | Mat. | Tol. | Dmax. | P |

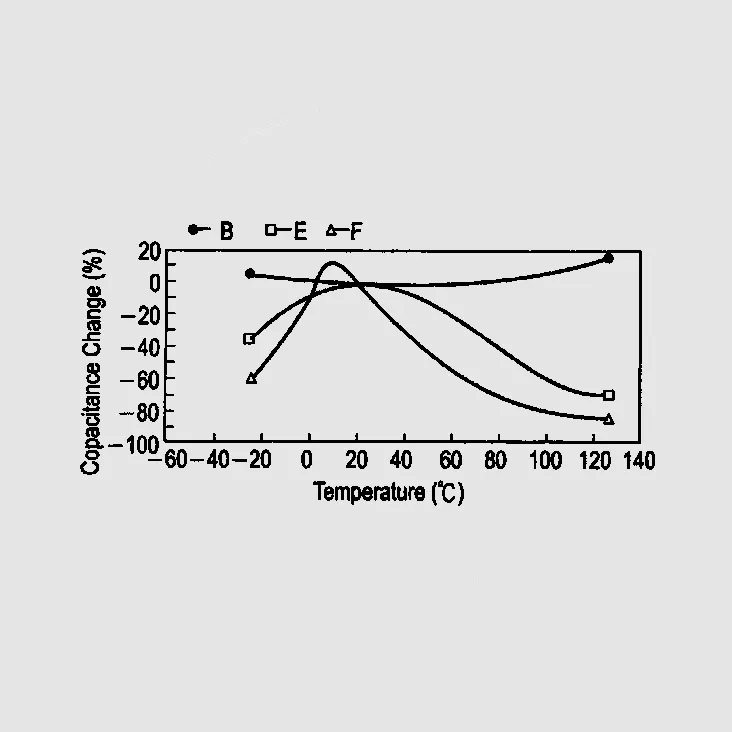

| [pF] | Char. | [%] | [mm] | [mm] | ||
| JY08PF150F | 150 | B | Y5P | ±10 | 8,0 | 7,5 |
| JY08PF470F | 470 | B | Y5P | ±10 | 8,0 | 7,5 |
| JY10NF001F | 1000 | B | Y5P | ±10 | 10,0 | 7,5 |
| JY09NF002.2F | 2200 | F | Y5V | -30/+80 | 10,0 | 7,5 |
| JY10NF003.3F | 3300 | F | Y5V | -30/+80 | 12,0 | 7,5 |
| JY12NF004.7F | 4700 | F | Y5V | -30/+80 | 14,0 | 7,5 |
| CN = Rated Capacitance, Temp. Char. = Temperature Characteristics, Mat. = Ceramic Material, Tol. = Capacitance Tolerance | ||||||
| ||||||
| Norms |
| EN132400:1994, IEC384-12 2nd Ed(1993), IEC60384-14 2nd Ed., UL1414, C22.2 No.1 |
|
| Approvals |
         10, CB |
|
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 50 pieces Form of delivery: Bulk |
|
| Manufacturer |
| Jya-Nay http://www.jyanay.com.tw |
|
Stregkode:
102619
Intern reference:
102619
Varekode:
JY08PF470F
