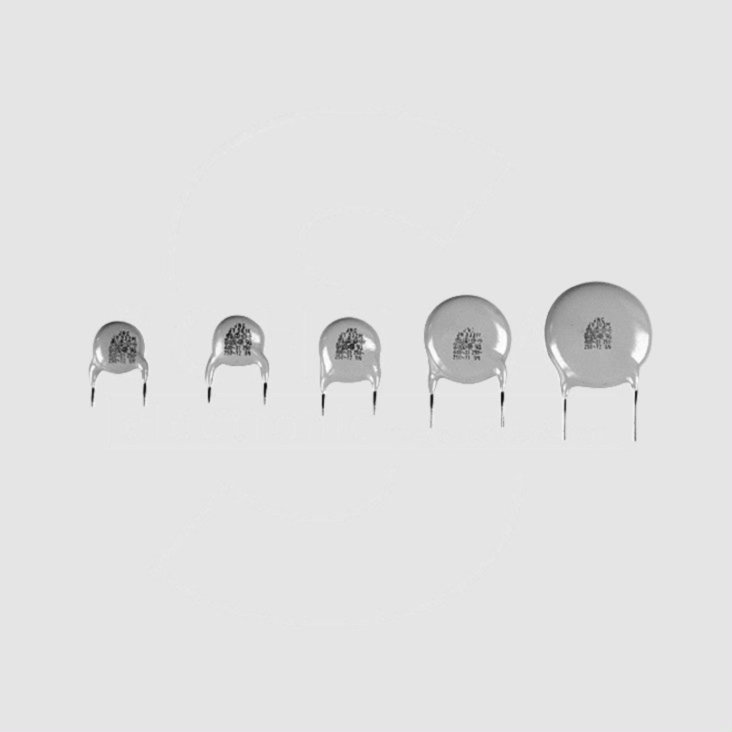

Cer Capacitor 2,2nF X1/Y1 P12,5

Varenummer:
102-617
Varekode:
JN12NF002,2F
Vægt:
0 g
Lagerstatus:
Ikke på lager

kr 0,00 0.0 DKK kr 0,00 Inklusiv moms

kr 0,00 Inklusiv moms

Anmod os om en pris

v/100
Kr. 2,50
v/1000
Kr. 1,75

Denne kombination eksistere ikke.

https://elektroniklavpris.odoo.com/web/image/product.template/58374/image_1920?unique=37fea8b https://elektroniklavpris.odoo.com/web/image/product.template/58374/image_1920?unique=37fea8b
Features
• Minimum reinforced insulation 0,4mm
• Coated with flame-retardant epoxy resin conforming to UL94-0
• High operating temperature up to 125°C (UL/CSA: 85°C)
Technical Specifications
Rated Voltage (50/60Hz)
X1:
 440V AC (UL/CSA 250V AC)
Y1:
 250V AC
Temperature Range:
 -25...+125°C
Test Voltage (1Min.):
 4000V AC
Insulation Resistance:
 10000MW
Dissipation Factor Tan d (1kHz, 1rms, 25°C):
 �2,5%

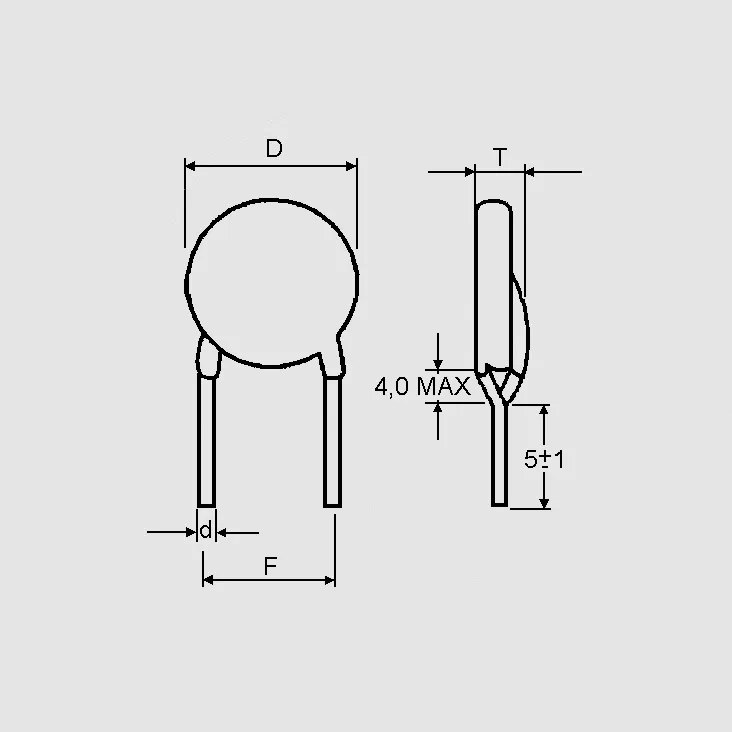

Pitch (F):
 12,5mm
Body Thickness (T):
 8mm
Lead-Wire Diameter (d):
 0,65±0,05mm
Part Nr.
 CN
 Temp.
 Material
 Tol.
 DMax.
 P
  [pF]
 Char.
   [%]
 [mm]
 [mm]
JN09PF220F 220
 B
 Y5P
 ±10
 9,0
 12,5
JN09PF330F 330
 B
 Y5P
 ±10
 9,0
 12,5
JN10PF470F 470
 B
 Y5P
 ±10
 9,0
 12,5
JN09NF001F 1000
 E
 Y5U
 +20/-55
 9,0
 12,5
JN12NF002,2F 2200
 E
 Y5U
 +20/-55
 12,0
 12,5

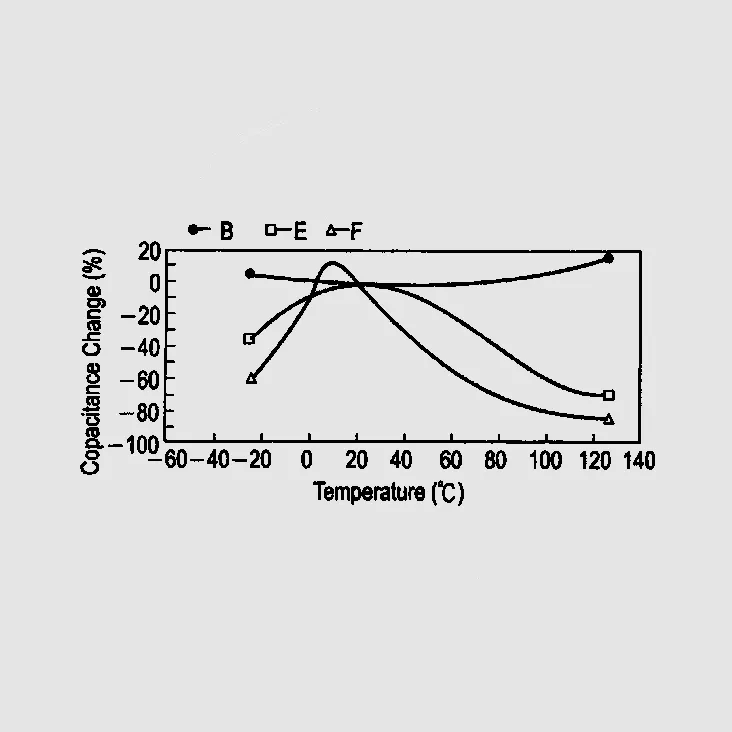

CN = Rated Capacitance, Temp. Char. = Temperature Characteristics, Mat. = Ceramic Material, Tol. = Capacitance Tolerance
Norms
EN132400:1994, IEC384-12 2nd Ed(1993), IEC60384-14 2nd Ed., UL1414, C22.2 No.1
Approvals
10, CB
Manufacturer
Jya-Nay
http://www.jyanay.com.tw
