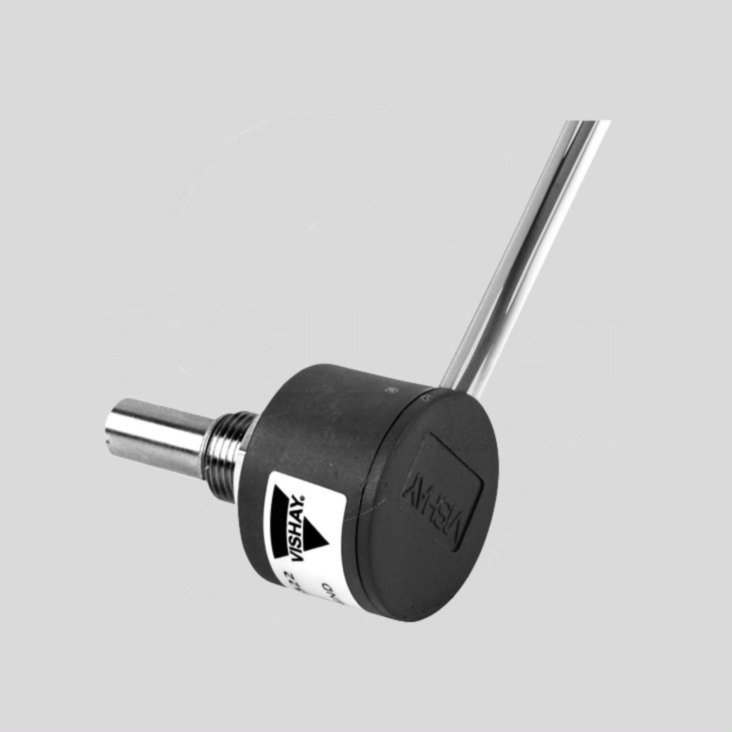

Single Turn Sensor 360°
Varenummer:
102-590
Varekode:
351HE0B4WA1S22
Vægt:
50 g
Lagerstatus:
Ikke på lager
Gruppe:
C3611
VISHAY Single Turn Sensor
Series: 351HE
360° Rotation Angle, Hall Effect

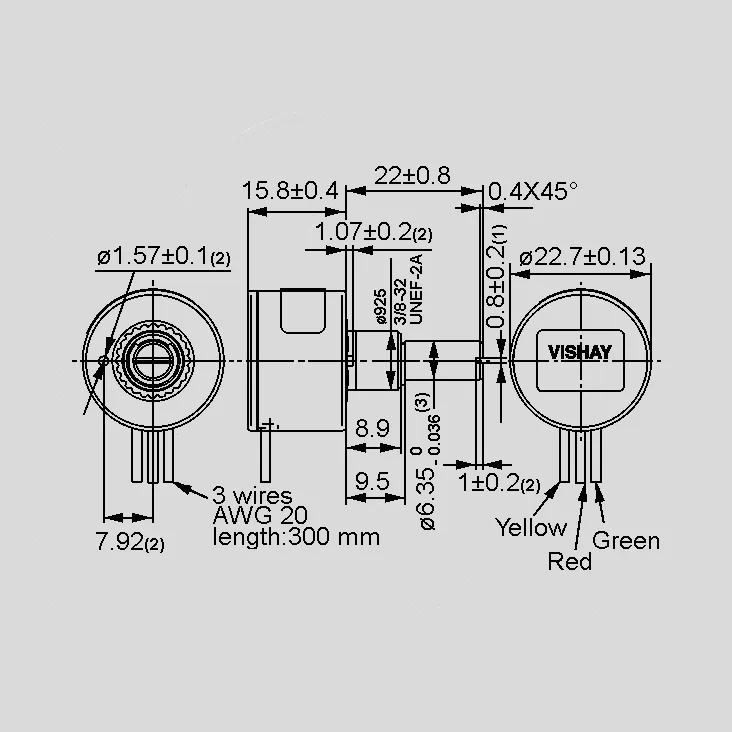

Shaft: Metal, Ø6mm
Housing: Ø22,2mm
VISHAY Single Turn Sensor
Series: 351HE
360° Rotation Angle, Hall Effect
Shaft: Metal, Ø6mm
Housing: Ø22,2mm
| Features |
| • Accurate linearity • Electrical angles • Long life: greater than 10M cycles • Non contacting hall effect technology • Model dedicated to all applications in harsh environments |
 |
| Technical Specifications |
| |
| Sensor Element: | Hall Effect |
| Linearity: | ±1% |
| Input Voltage | 5V DC |
| Input Current | 10mA |

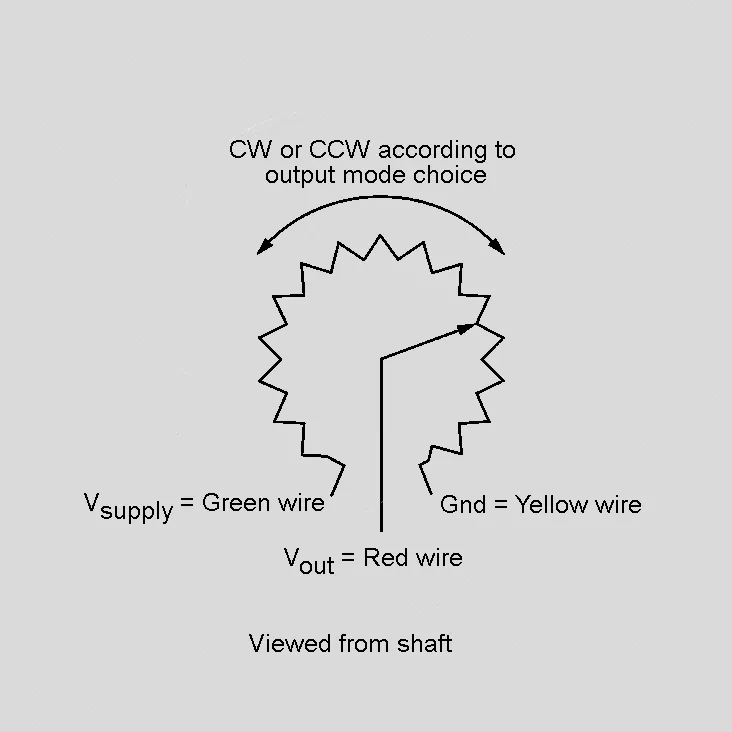

| Output signal: | Analog ratiometic 10%...90% of Vinput |
| Rotation Angle | |
| mechanical: | 360° |
| electrical: | 360° |
| Over Voltage Protection: | 20V DC |
| Reverse Voltage Protection: | -10V DC |
| Load Resistance, Min.: | 1kW |
| Hysteresis: | 0,2% |
| Bearing Type: | Sleeve bearing |
| Temperature Range: | -45...+125°C |
| Sealing: | IP50 |
| Weight: | 20g ±2g |
| |
| Terms of Delivery |
| Minimum order quantity: 1 PKU = 1 piece |
|
| Manufacturer |
Vishay/Sfernice |
| http://www.vishay.com |
|
Stregkode:
743-2530
Intern reference:
102590
Varekode:
351HE0B4WA1S22
